Sensoreenheid Axis 0914-001

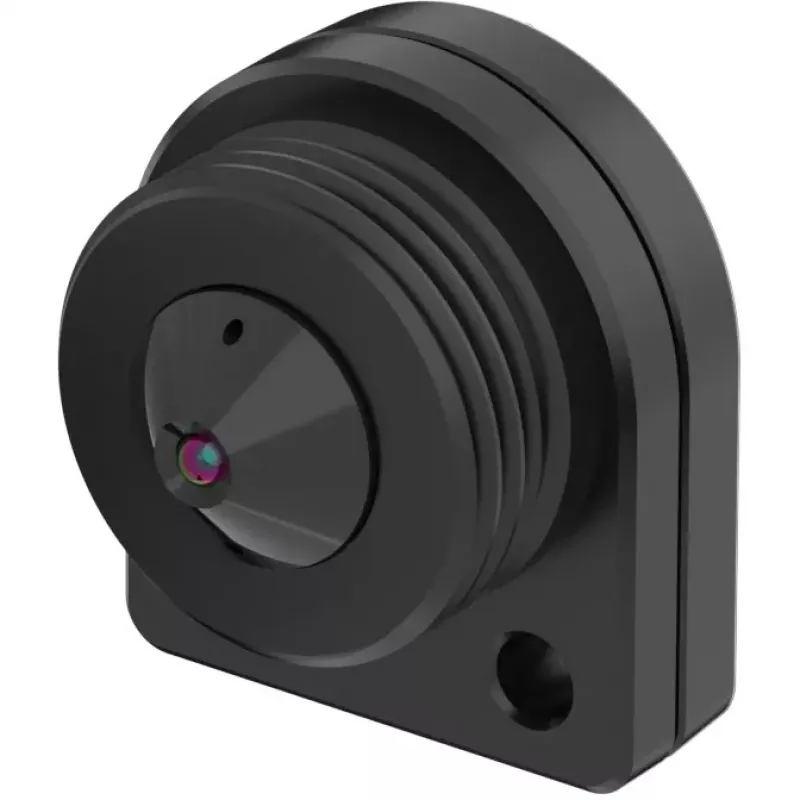

AXIS FA1125 is a compact indoor sensor unit designed for discreet surveillance in environments such as stores, banks and integration inside machines. The unit is flush-mountable in walls, ceilings or metal panels so that only a small pinhole for the lens is visible. Used with an AXIS FA Main Unit, it delivers 1080p (1920 × 1080) resolution and a 91° horizontal field of view, and connects to the main unit via an 8 m (26 ft) cable. The sensor employs Forensic WDR tuned for motion to improve image detail in scenes with varying light levels.

Advantages

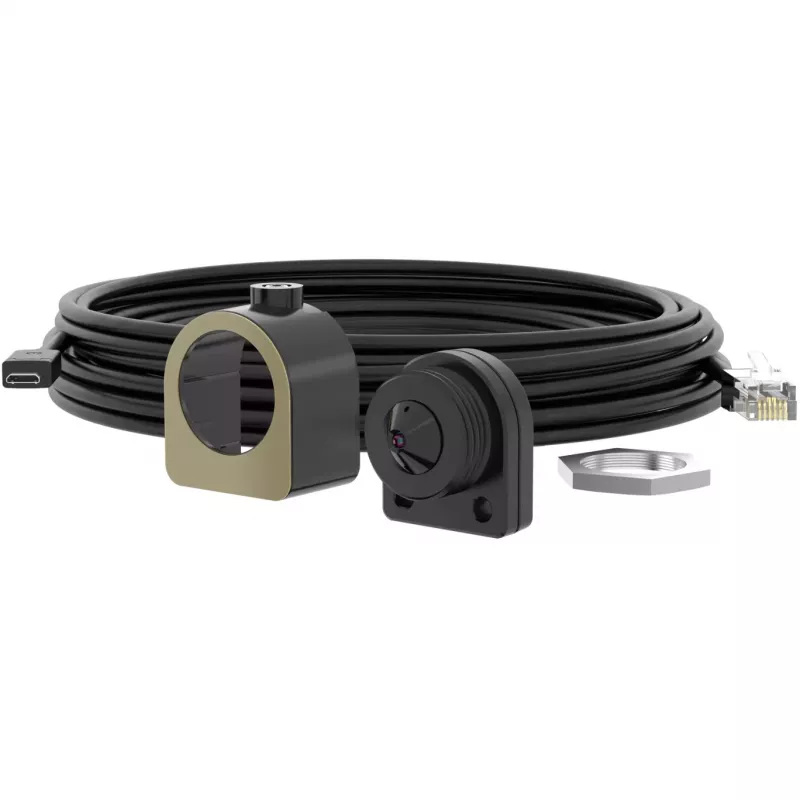

The sensor’s small dimensions (28 mm × 24 mm) and black finish enable installation in tight or concealed locations with minimal visual impact. Its 1/3" CMOS sensor provides full HD detail while the 8 m wired connection ensures reliable data and power delivery to an AXIS FA Main Unit. Forensic WDR optimised for motion helps preserve detail across bright and dark areas, improving identification in challenging lighting conditions. A mounting bracket is included for straightforward flush mounting.

Suitable for

• Discrete indoor surveillance in retail stores
• Monitoring in banks and financial premises
• Integration into vending machines, kiosks or cabinets
• Tight or flush-mounted installations in walls, ceilings or metal panels

Key specifications

• Model: AXIS FA1125 (MPN 0914-001)
• Image sensor: 1/3" CMOS
• Resolution: 1920 × 1080 (1080p)
• Field of view: 91° horizontal
• Cable length: 8 m (26 ft) wired connection to AXIS FA Main Unit
• Dimensions: 28 mm (width) × 24 mm (depth)
• Finish: Black

How to use

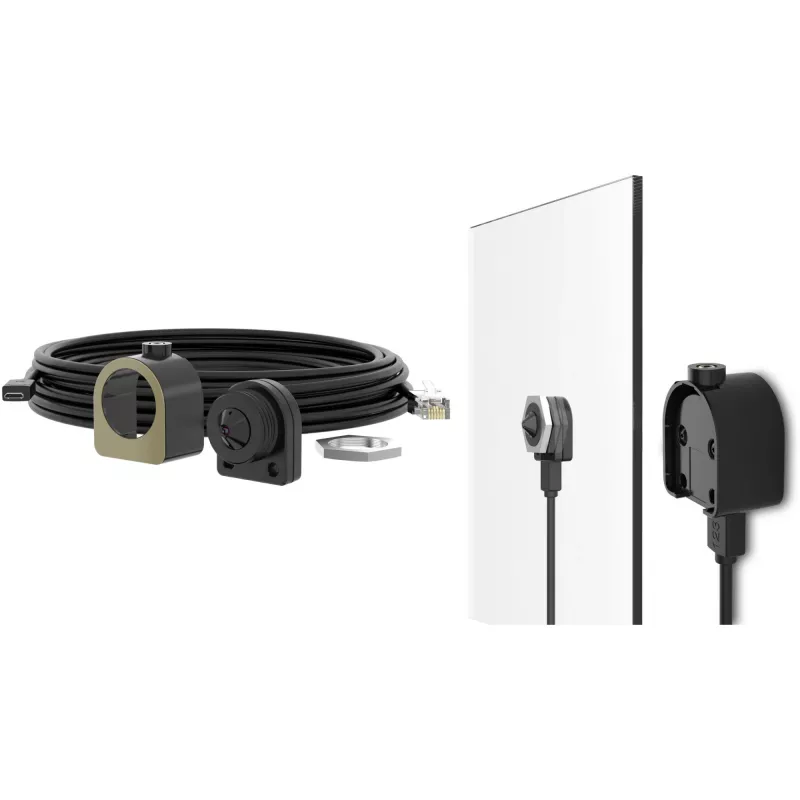

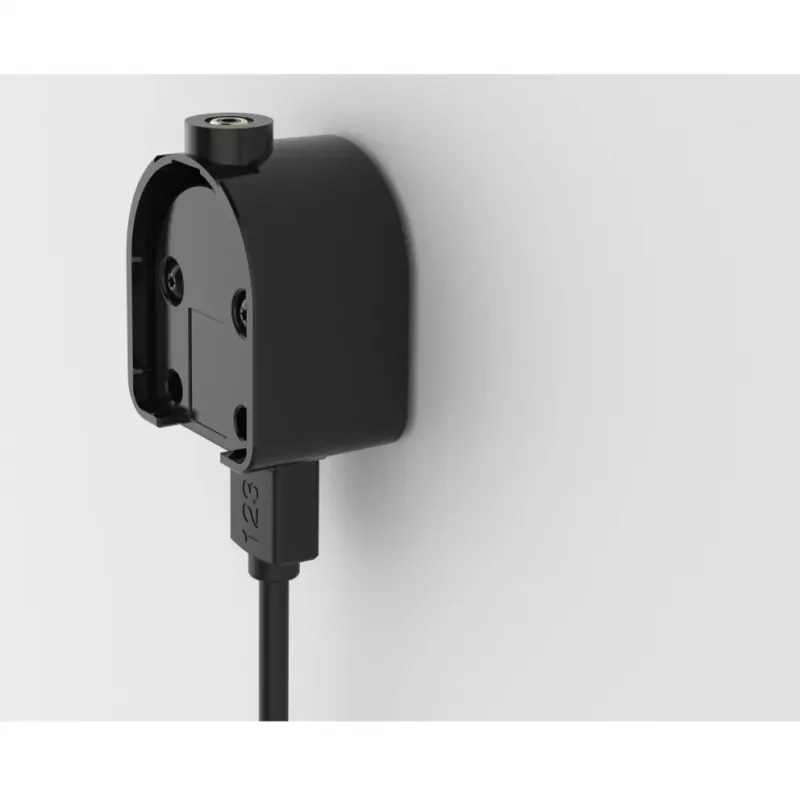

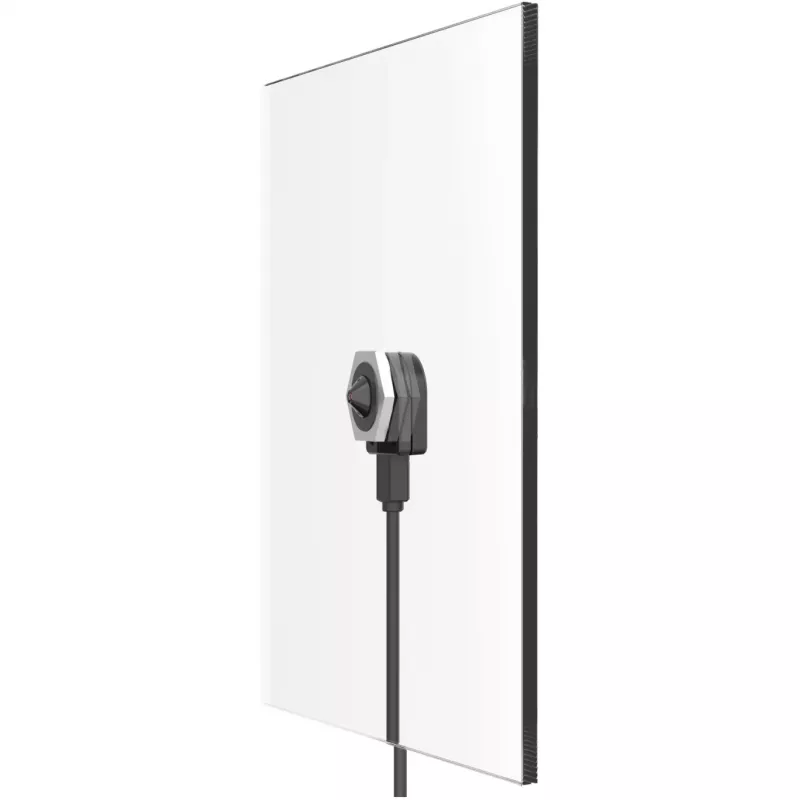

Mount the AXIS FA1125 sensor unit flush into a wall, ceiling or metal panel using the supplied bracket so only the pinhole lens is exposed. Route the 8 m cable to an AXIS FA Main Unit and connect according to the main unit instructions. Configure the main unit’s video settings to use 1080p resolution and enable Forensic WDR tuned for motion if required. Position the sensor to cover the intended area and verify the field of view and image quality on the main unit.

Recommendations

Install the sensor where the small pinhole lens has an unobstructed view; avoid placing it directly facing strong light sources. Use the included mounting bracket for a secure flush installation and test the Forensic WDR setting with representative motion to ensure optimal image detail in your environment.
