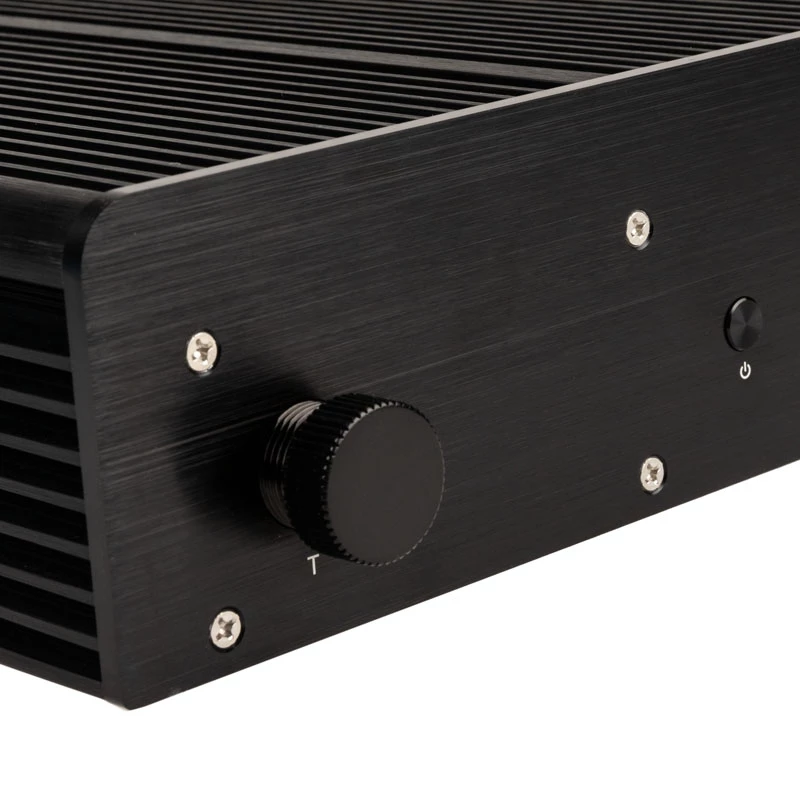

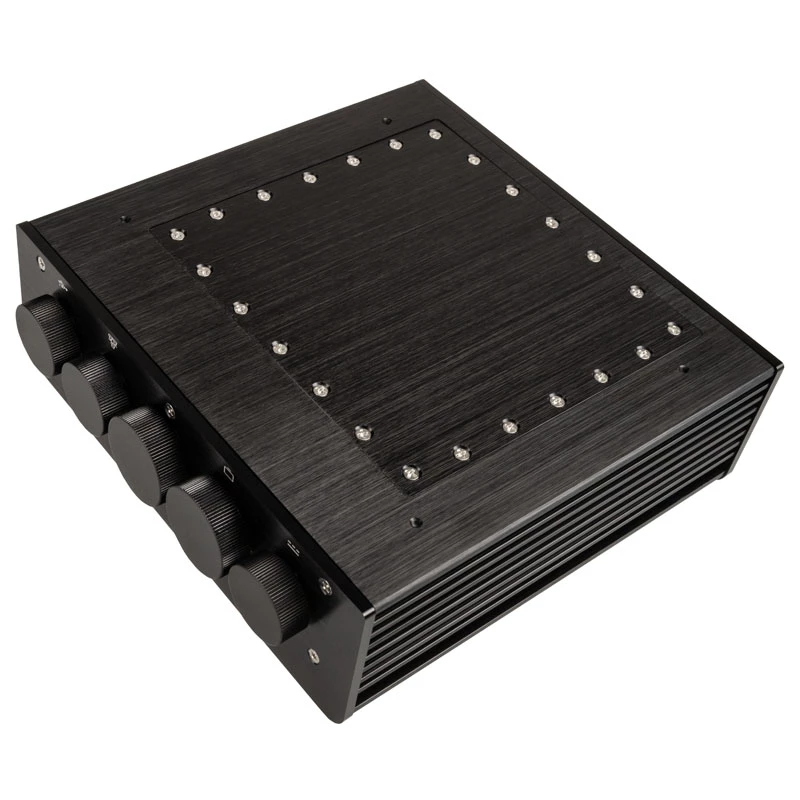

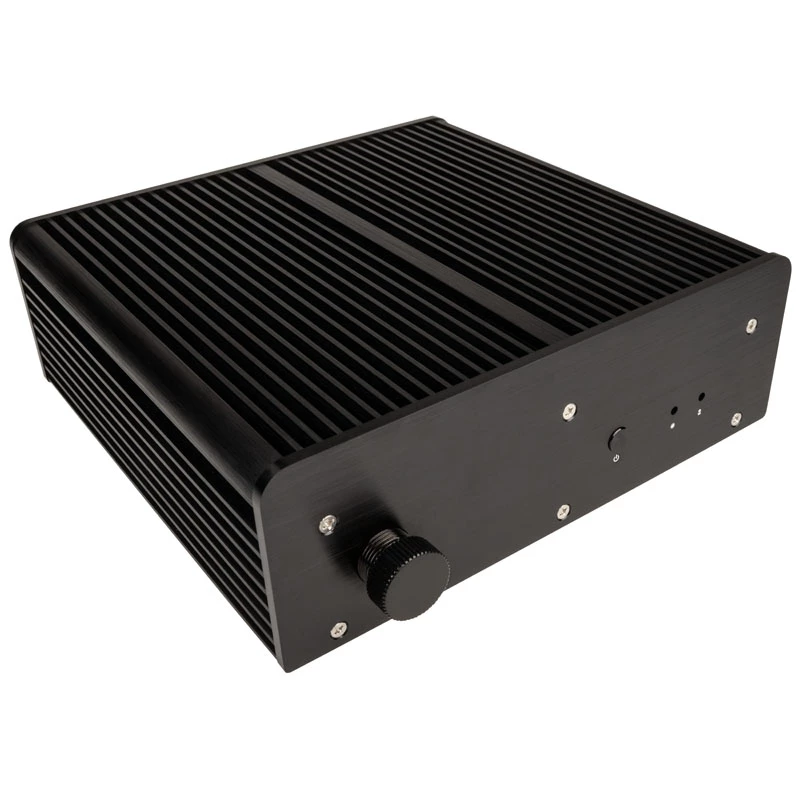

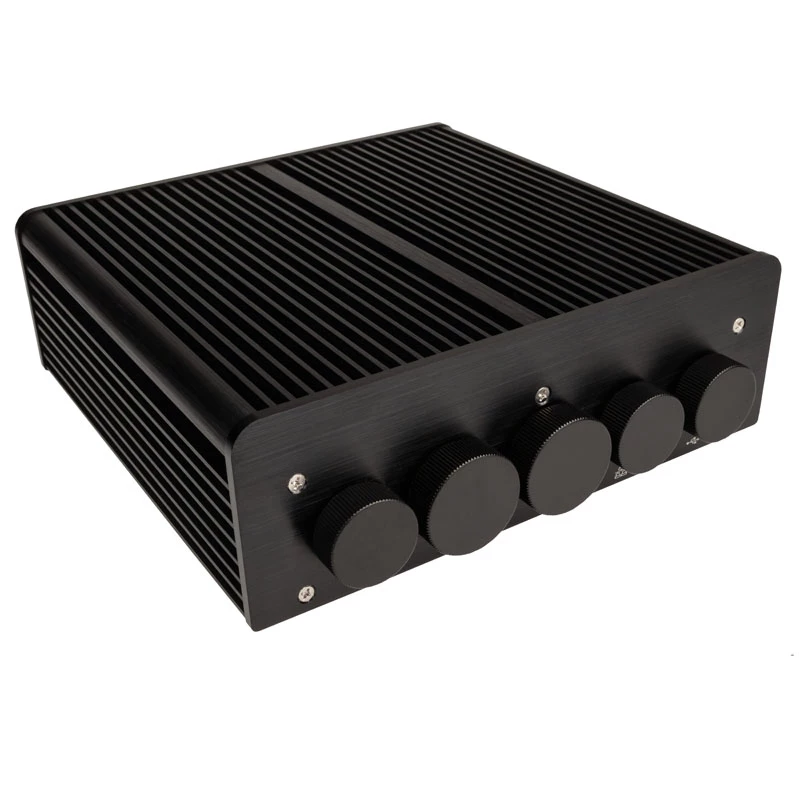

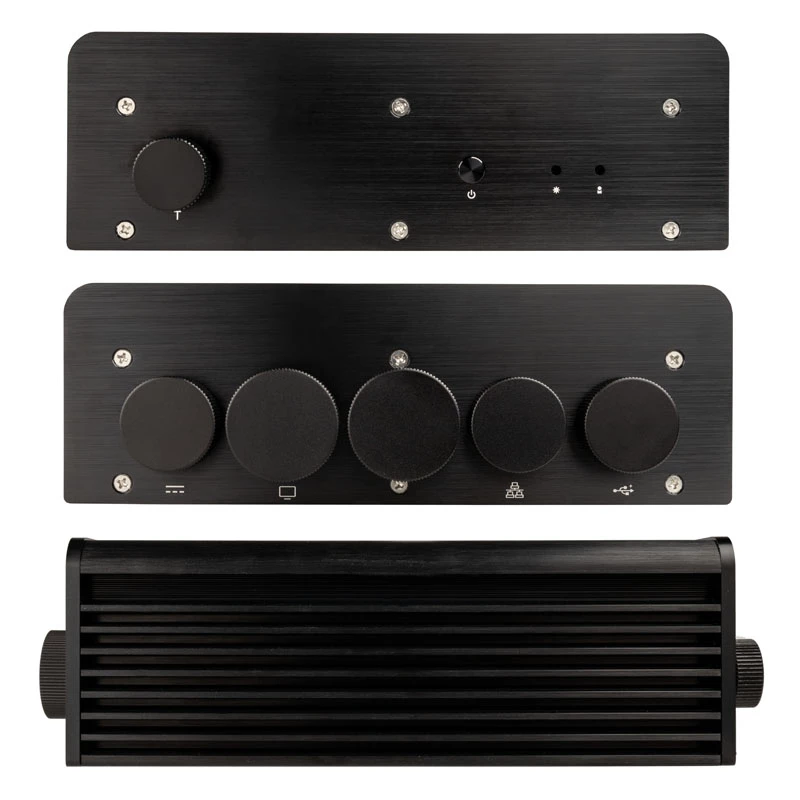

Server Akasa Pascal TN rack zwart

The Akasa Pascal TN Rack Black is a compact, IP65-rated server enclosure designed for Intel® 11th Generation Core™ i7 NUC (Tiger Canyon) boards and compatible with A-NUC67-M1B applications. With a slim rack-friendly footprint (195.6 mm width, 214.7 mm depth, 64.6 mm height) and a matte black finish, this unit supports fanless operation through an aluminium passive cooling design and includes IP65-rated cables for power, USB 3.0, HDMI and network connection. The enclosure is built to operate reliably in dusty or wet environments while enabling remote management when paired with Intel vPro® capable systems.

Advantages

The IP65 protection rating ensures full dust and water resistance for deployment in exposed or harsh environments. The fanless aluminium cooling design provides silent, maintenance-free thermal management suitable for continuous operation. Included IP65-rated cables (2 m) simplify installation and avoid the need for separate weatherproof cabling. The compact rack form factor allows straightforward integration into existing rack setups where space is limited.

Suitable for

• Outdoor multimedia and digital signage installations
• Navigation systems and in-vehicle computing (car PC)
• Industrial automation and control stations
• Medical equipment requiring protected computing enclosures
• Remote-managed commercial deployments using Intel vPro®

Key specifications

• Dimensions: 195.6 mm (W) × 214.7 mm (D) × 64.6 mm (H)
• Enclosure colour: Black
• Cooling: Aluminium fanless (passive) thermal design
• Ingress protection: IP65 (dust and water resistant)
• Compatible boards: Intel® NUC 11 Pro (Tiger Canyon) up to Core™ i7
• Included cables: Power, USB 3.0, HDMI and network — IP65 rated, 2 m length

How to use

Install an Intel NUC 11 Pro (Tiger Canyon) board following the manufacturer's board installation instructions and secure it inside the Pascal TN Rack enclosure. Connect the supplied IP65-rated power, USB 3.0, HDMI and network cables to the corresponding ports and route them through the sealed cable entries to maintain the IP65 protection. Mount the unit in the rack or appropriate location, ensure ventilation clearance as recommended for passive cooling, and power on the system. For remote management and secure updates, configure Intel vPro® features on compatible systems according to Intel guidelines.

Recommendations

For best results, use the enclosure in installations where environmental protection is required—outdoor signage, industrial control cabinets, or vehicle-mounted systems. Verify compatibility with your specific NUC board revision and ensure that the board’s thermal specifications are met by the passive cooling setup. Regularly inspect cable seals and mounting points to preserve IP65 integrity.
