Serverbehuizing Supermicro SC826BE1C4-R1K23LPB Rack zwart

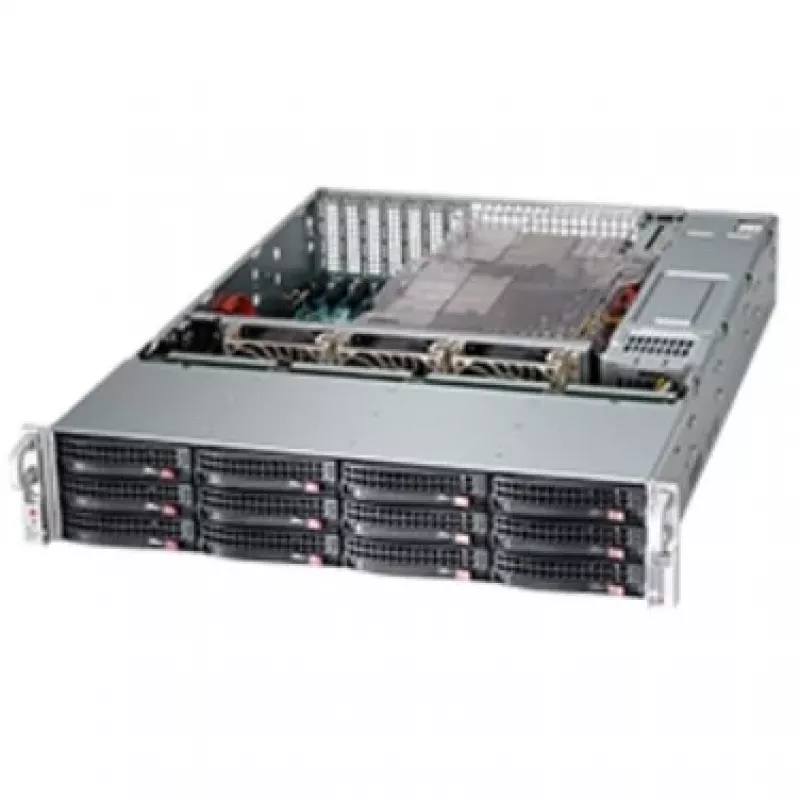

The Supermicro SC826BE1C4-R1K23LPB is a 2U rack server chassis in black that maximizes storage density by providing twelve hot-swap 3.5" drive bays in a compact form factor. Designed for efficient airflow and space optimization, the chassis supports EATX and ATX motherboards and includes a high-efficiency 1200 W Platinum-class power supply. Dimensions are 437 mm (W) x 647 mm (D) x 89 mm (H), and the unit accepts AC input from 100 to 240 V at 50–60 Hz.

Advantages

The SC826 chassis delivers high storage capacity within a 2U footprint while preserving effective cooling through an interior layout optimized for airflow. Twelve hot-swap 3.5" bays simplify drive replacement and maintenance without system downtime. The included 1200 W Platinum-level power supply provides high efficiency for reliable operation and reduced power loss. The rack-ready design and compatibility with EATX and ATX motherboards make the unit suitable for dense server deployments.

Suitable for

• Storage-dense server installations in limited rack space
• Backup and archival systems requiring multiple 3.5" HDDs
• Enterprise or data center environments using EATX/ATX motherboards
• Systems that need hot-swap drive accessibility and continuous operation

Key specifications

• Form factor: 2U rack chassis
• Drive bays: 12 hot-swap 3.5" bays
• Supported motherboards: EATX, ATX
• Power supply: 1200 W Platinum-level (included)
• AC input: 100–240 V, 50–60 Hz
• Dimensions (W x D x H): 437 x 647 x 89 mm
• Colour: Black

How to use

Install an EATX or ATX motherboard according to the chassis mounting points and secure the power supply in its bracket. Populate the hot-swap bays with compatible 3.5" HDDs or SSDs and connect each drive to the system SAS/SATA controller. Rack-mount the chassis in a suitable 19-inch rack, connect AC power within the specified 100–240 V range, and verify cooling fans and drive activity after powering on. Use the hot-swap trays for drive insertion and removal while the system remains operational, following standard server maintenance procedures.

Recommendations

For reliable long-term operation, maintain proper rack airflow, use drives certified for 24/7 server use, and install monitoring for power and temperature. If shipping is required, note that palletized packaging is provided for certain 1200 W models to protect the system during transport.
