Serverrack EFB Elektronik OFF-1568GR.V1RW

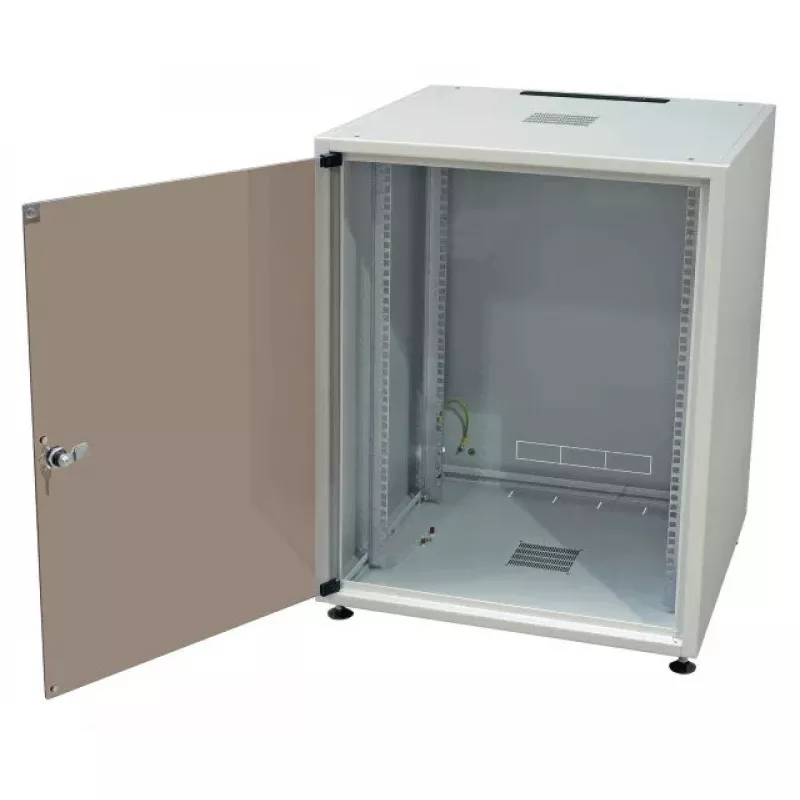

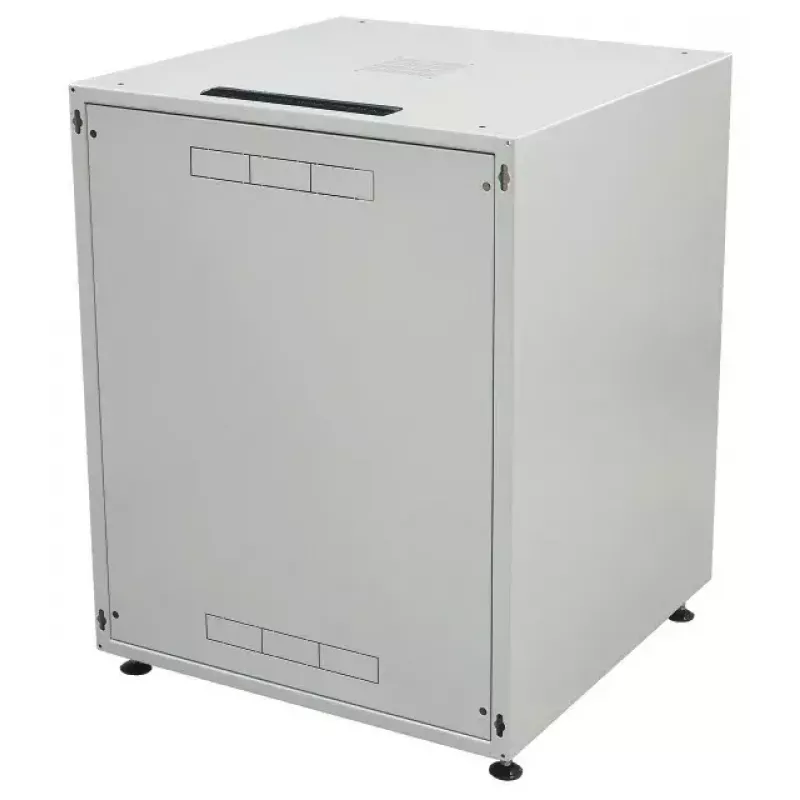

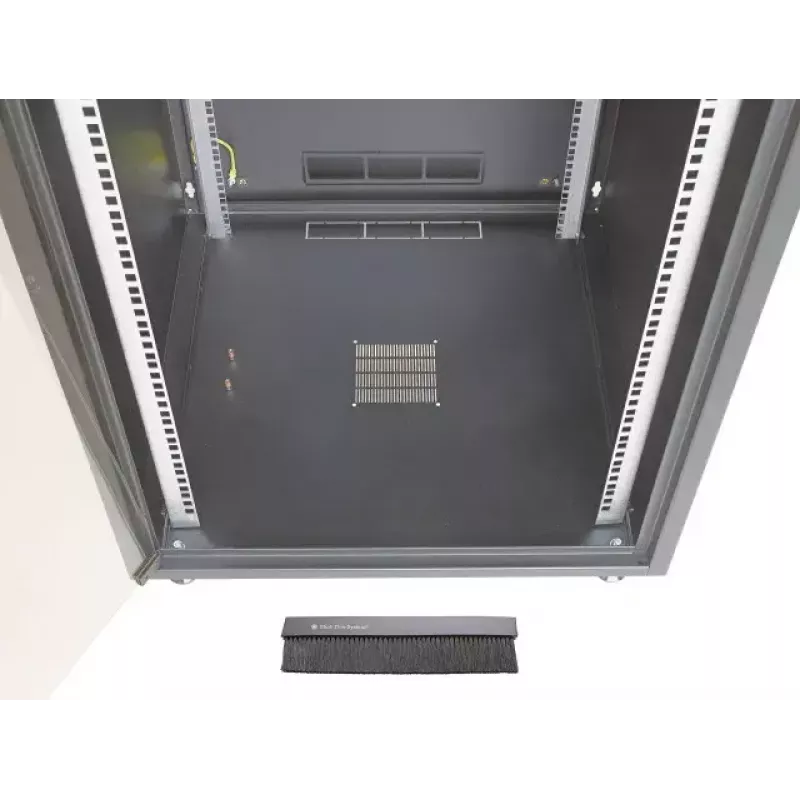

Freestanding rack EFB Elektronik OFF-1568GR.V1RW is a 19" network cabinet built from a self-supporting steel sheet housing and delivered completely pre-assembled. It provides internal, stepless depth-adjustable galvanized 19" profiles at the front and rear (2 front, 2 rear) and a single-piece full-glass front door (4 mm) with 1-point latch lock. The cabinet is self-ventilated, has pre-punched openings in the bottom and rear for cable entry and is finished in grey with an IP20 protection rating.

Advantages

The cabinet combines a compact 15U capacity with a robust steel construction and galvanised 19" rails for secure mounting of equipment. Its pre-assembled design and stepless depth-adjustable rails reduce installation time. A full-glass front door with a keyable 1-point lock allows visual inspection while providing basic physical protection. Self-ventilation and dedicated cable entry points simplify cable routing and airflow management. The grey finish suits office and technical environments.

Suitable for

• Small server or network equipment installations
• Patch panels and switches in office or communication rooms
• Floor-mounted mounting where a compact 15U cabinet is required
• Environments needing visible front access with basic physical security

Key specifications

• Size: 19"
• Width: 600 mm
• Depth: 800 mm
• Height: 737 mm (15U)
• Rack capacity: 15U
• Maximum weight capacity: 38 kg
• Material: steel sheet housing, galvanised 19" profiles
• Front door: single-piece full glass, 4 mm, 1-point lock
• Ventilation: self-ventilated
• Protection rating: IP20
• Product colour: Grey

How to use

Place the freestanding rack on a stable, level surface. Route incoming cables through the pre-punched openings in the bottom or rear and secure them as needed. Adjust the front and rear 19" profiles to the required depth for your equipment mounting and fasten devices to the rails using appropriate rack screws. Use the front glass door and key lock to control access and permit visual checks without opening the cabinet. Ensure adequate clearance around the cabinet for airflow.

Recommendations

Install the cabinet in a dry, dust-controlled indoor environment and avoid exposure to liquids. Do not exceed the specified maximum load of 38 kg and maintain free airflow; consider adding active ventilation if installed in a confined or warm space.
