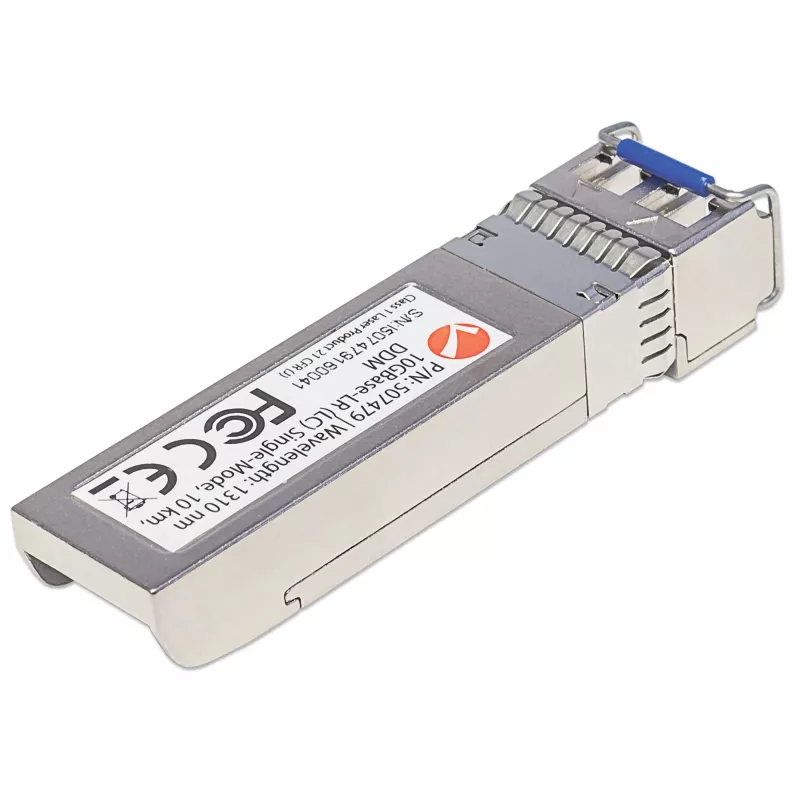

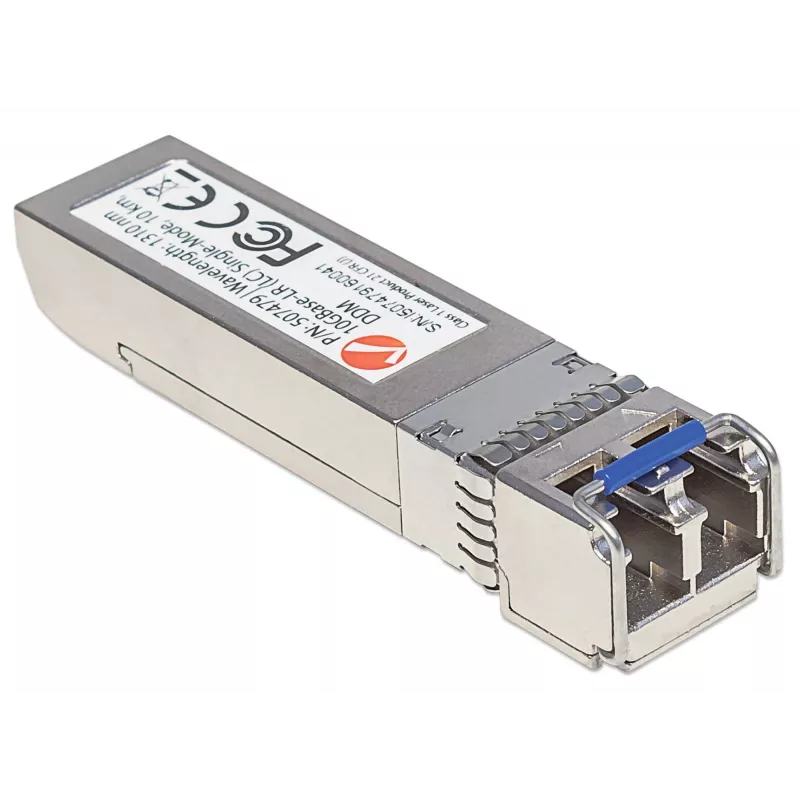

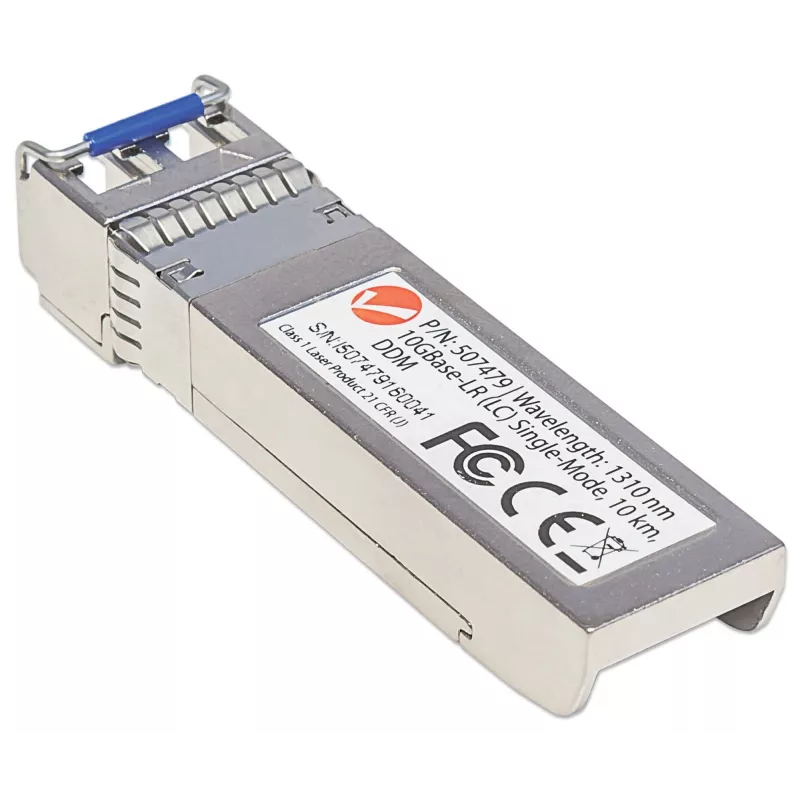

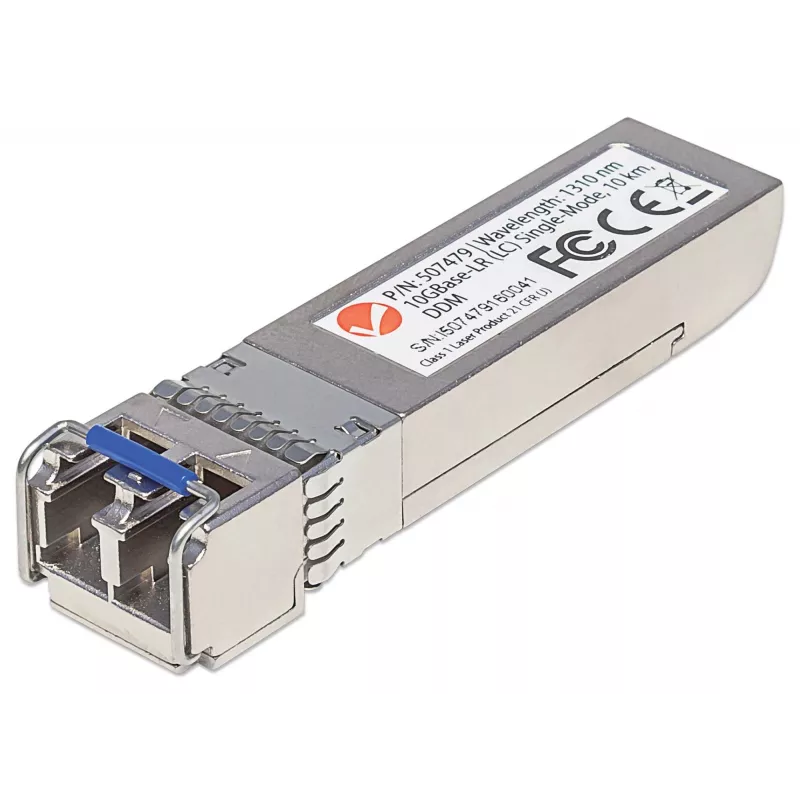

SFP+ module INTELLINET 0 single-mode LC

The INTELLINET SFP+ single-mode LC module is a compact hot-pluggable optical transceiver designed for 10 Gigabit Ethernet and other high-speed optical links. It provides a single-mode fiber interface with an LC duplex connector suitable for long-distance fiber connections. The module fits standard SFP+ ports on switches, routers and media converters and is intended for installations where a small form-factor, low-latency 10Gb/s optical link is required.

Advantages

This SFP+ module supports 10 Gigabit Ethernet data rates while maintaining a small, hot-swappable form factor that simplifies installation and replacement without powering down network equipment. The single-mode LC interface enables long-reach fiber connectivity and interoperability with equipment that accepts SFP+ LC transceivers. Its compact design reduces port space usage and helps maintain consistent optical performance for backbone links and aggregation connections.

Suitable for

• 10 Gigabit Ethernet uplinks between switches and routers
• Long-distance fiber backbone and campus connections
• Aggregation links in data center topologies
• Media converters and SFP+ enabled network appliances

Key specifications

• Form factor: SFP+ small form-factor pluggable
• Fiber type: single-mode
• Connector type: LC duplex
• Data rate: 10 Gigabit Ethernet compatible
• Hot-pluggable: yes
• Typical application: long-reach optical links and network uplinks

How to use

Insert the SFP+ module into an available SFP+ port on a compatible switch, router or media converter until it clicks into place, then secure any retaining mechanisms as required by the host device. Connect single-mode LC fiber patch cords to the transmit and receive LC ports, observing correct polarity. After installation, verify link status and configure the host interface for 10Gb/s operation if necessary. To remove, power down the port if required by the equipment, release the latch and pull the module straight out.

Recommendations

Use quality single-mode LC patch cords and ensure clean connector endfaces to maintain optical performance. Verify compatibility with the host device's supported SFP+ transceiver specifications and confirm fiber polarity before finalizing the installation.
