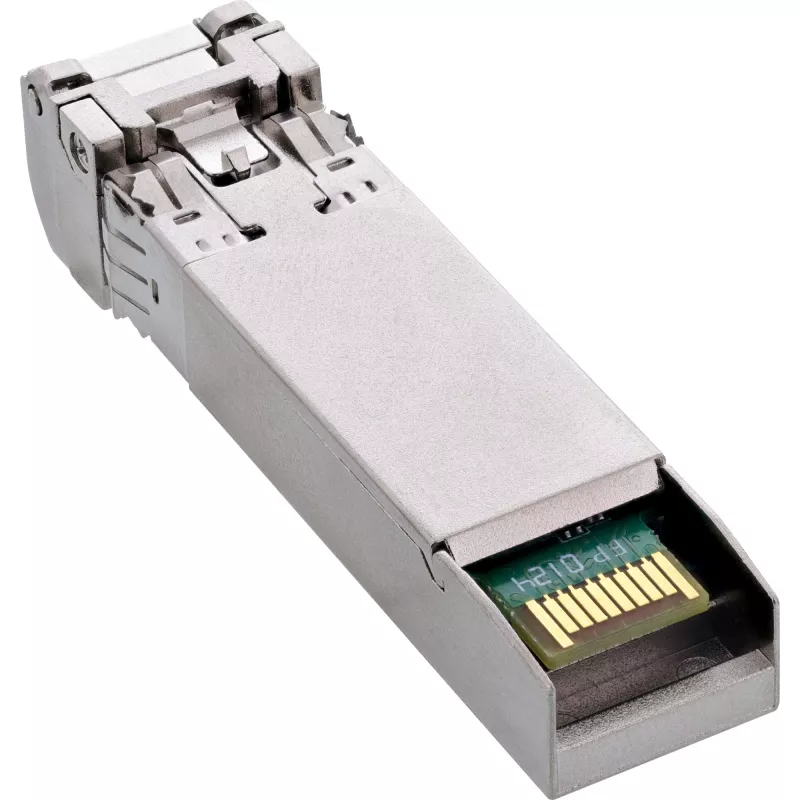

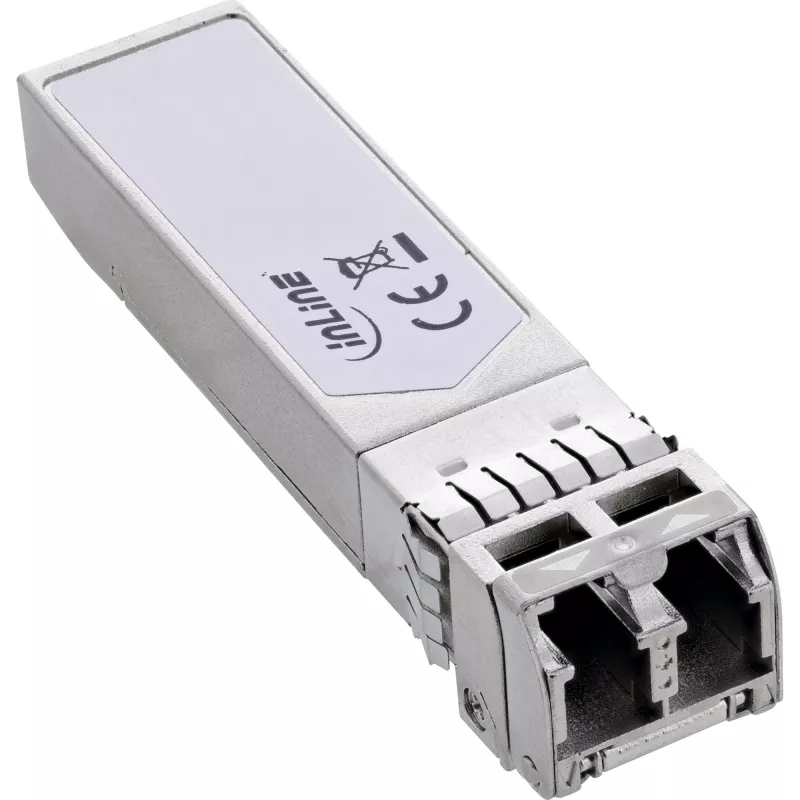

SFP+ optische transceiver InLine 32335T 1550nm singlemode 80km 10Gb/s

High data rate up to 10 Gb/s:Ideal for high-performance network connections with high bandwidth – e.g. in data centres or carrier networks.
Long-distance capability up to 80 km:For single-mode installations with long ranges – suitable for site networking and backbone links.
1550 nm EML laser:Ensures low-loss signal transmission with high range and low EM interference.
MSA SFF-8472 / IEEE 802.3ae compatible:Easy integration into existing systems – can be used across manufacturers.
Digital Diagnostic Monitoring (DDM):Real-time monitoring of temperature, current, voltage and reception level for greater control in network operation.

The InLine® SFP+ Module 32335T provides reliable and powerful 10GbE connections over distances of up to 80 km. It is ideal for professional applications such as carrier backbones, site networking and high-performance server infrastructures.
Thanks to an EML laser with a wavelength of 1550 nm and a receiver range of 1260–1620 nm, the module enables stable data transmission with low attenuation. Compliance with the MSA SFF-8472 and IEEE 802.3ae standards guarantees broad compatibility with many switches, routers and media converters on the market.
Digital Diagnostic Monitoring (DDM) allows critical parameters such as temperature, voltage, current consumption and reception power to be monitored – particularly important in professional network environments.
The module is hot-plug-capable and can be installed or replaced during operation. With a typical power consumption of less than 2 W, it is also extremely energy-efficient.

Form factor: SFP
Transmission rate: up to 10.3125 Gb/s (10GBASE-EW)
Fibre type: single mode
Range: up to 80 km
Transmitter: 1550 nm EML laser
Receiver: 1260–1620 nm (APD + TIA)
Connection: LC duplex
Hot-plug capable: Yes
Compatibility: MSA SFF-8472, SFF-8431, IEEE 802.3ae
Digital diagnostics: DDM / DOM supported
Power consumption: typical
Supply voltage: 3.3 V ±5 %
Current consumption: max. 450 mA
Operating temperature: 0 °C to +70 °C

Note on coding:
Our SFP modules are factory-coded – whether for Cisco, Intel or other systems, which may limit your choice.
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.

InLine 32335T. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10312.5 Mbit/s, Interface type: SFP+. Input voltage: 3.3 V, Power consumption (typical): 2 W. Compliance certificates: CE, TÜV mark. Width: 57 mm, Depth: 0.23 mm, Height: 13 mm. Package width: 60 mm, Package depth: 90 mm, Package height: 20 mm

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on the network device until it clicks into place. Connect singlemode fiber patch cords with appropriate connectors (e.g., LC) ensuring correct polarity. Verify link status LEDs and device diagnostics for proper operation. Configure the connected network equipment for 10 Gb/s operation as needed and monitor optical power and error statistics via the host device management tools to ensure the link meets performance requirements.

Recommendations

Use high-quality singlemode fiber with proper attenuation characteristics and certified connectors to achieve the specified 80 km range. Avoid bending or stressing fiber near the module, follow manufacturer procedures for hot-plug handling, and monitor optical power margins during deployment to maintain reliable long-distance links.
