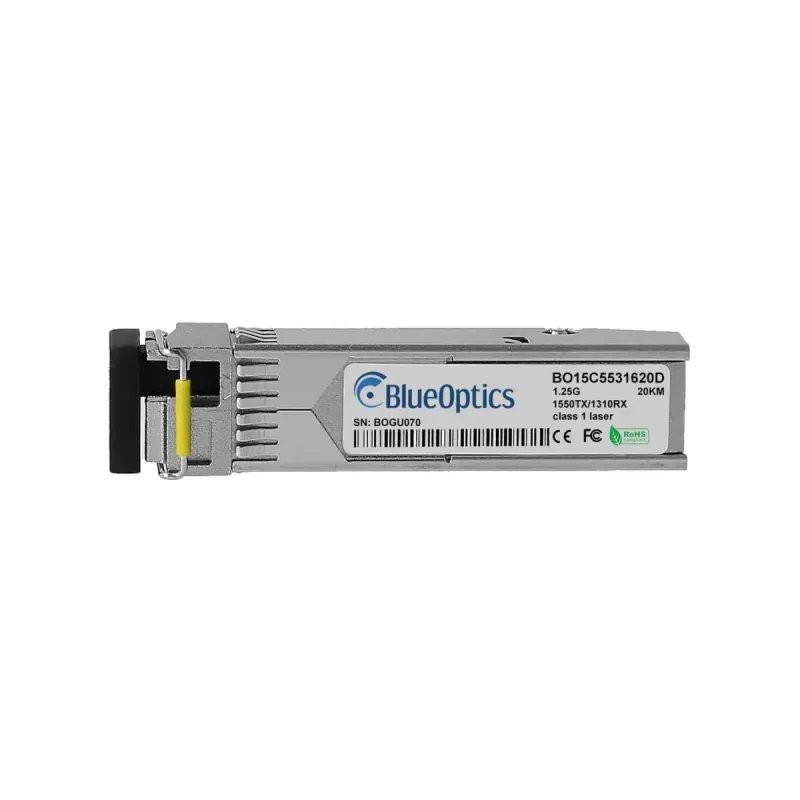

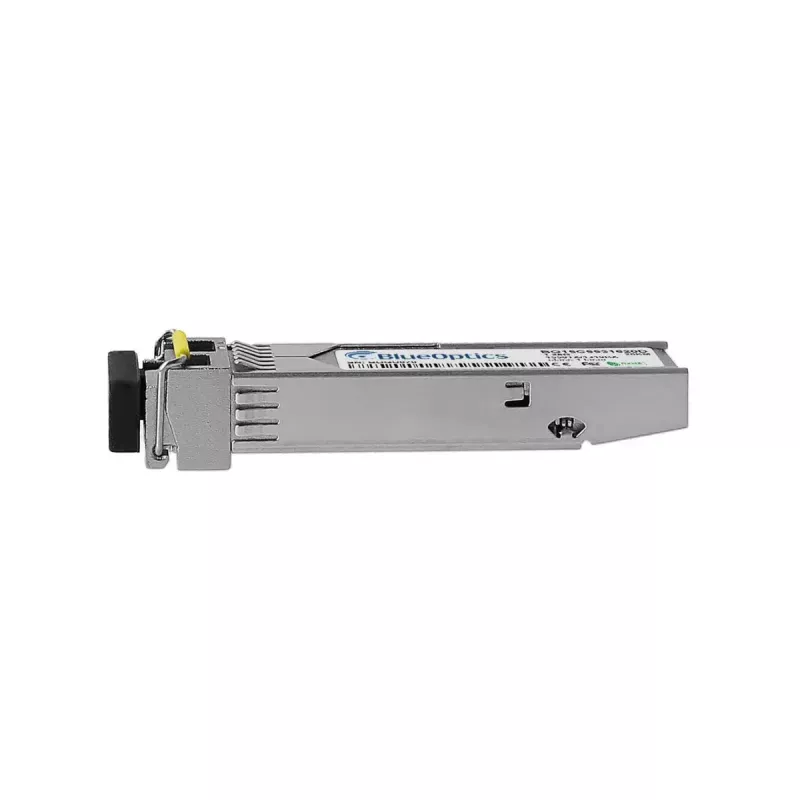

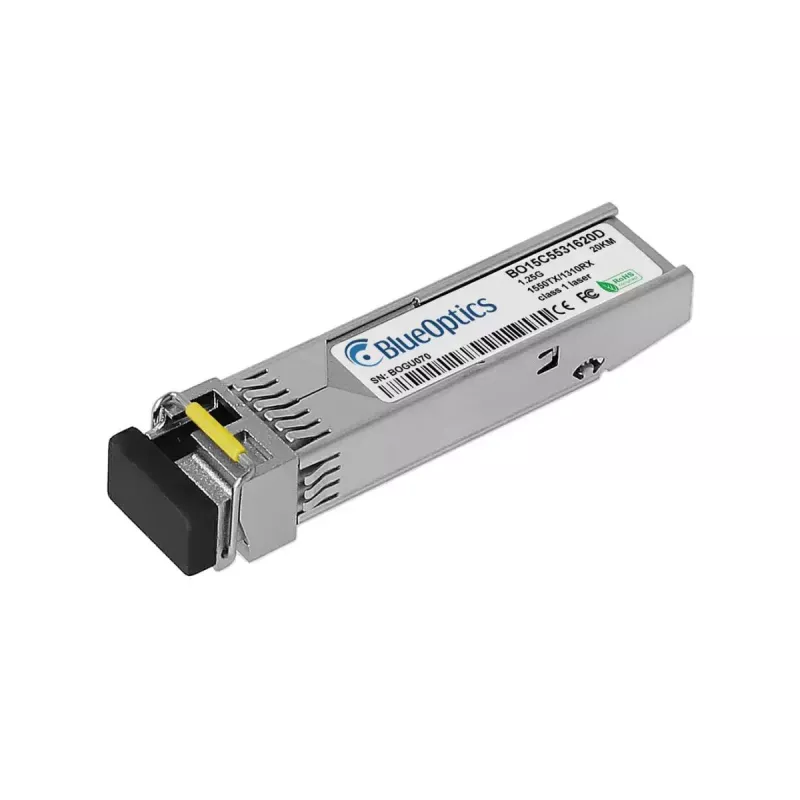

SFP-transceiver BlueOptics AC-SFP-BIB-LXE-BO 1250 Mbit/s zilver

The BlueOptics AC-SFP-BIB-LXE-BO is a single-port SFP fiber transceiver designed for 1000BASE-BX-D applications with a maximum data transfer rate of 1250 Mbit/s. Housed in a metal casing and weighing approximately 20 g, this SFP module supports single-mode fiber connections with LC simplex connector and is engineered for interoperable use in MSA-compliant networking equipment. Typical uses include Ethernet, Fibre Channel over Ethernet and SDH/SONET applications across long-reach links.

Advantages

The module offers a metal housing for mechanical durability and EMI shielding, a compact SFP form factor for hot-pluggable installation, and an MTBF around 1,000,000 hours for long service life. It implements separate transmitter and receiver wavelengths for 1000BASE-BX-D single-fiber operation and is manufactured to meet industry MSA specifications to ensure compatibility with major switch, router and storage platforms.

Suitable for

• Gigabit Ethernet uplinks and long-distance fiber links
• Carrier and metro networks using single-mode fiber
• Switches, routers and storage systems with SFP ports
• Environments requiring low-EMI fiber connectivity

Key specifications

• Interface type: SFP (small form-factor pluggable)
• Data rate: up to 1250 Mbit/s (1.25 Gbit/s)
• Connector: LC simplex (single-fiber BX-D operation)
• Fiber type: single-mode fiber support
• Housing material: metal
• Weight: approx. 0.02 kg
• Typical MTBF: ~1,000,000 hours

How to use

Install the SFP transceiver into an available SFP slot on a compatible switch, router or optical device while the host device is powered according to vendor guidelines for hot-pluggable modules. Connect a single-mode LC simplex patch cable following the correct fiber polarity for BX-D single-fiber operation. Configure the host interface and verify link status and negotiated speed. If supported by the host, enable and read digital diagnostic monitoring (DDM/DOM) to observe parameters such as temperature, supply voltage, transmit and receive optical power.

Recommendations

Verify that the target hardware supports 1000BASE-BX-D modules and DDM/DOM if you require diagnostic monitoring. Use industry-standard single-mode LC patch cords and, where possible, request a sample or test the module in your specific platform to confirm compatibility and link performance before large-scale deployment.
