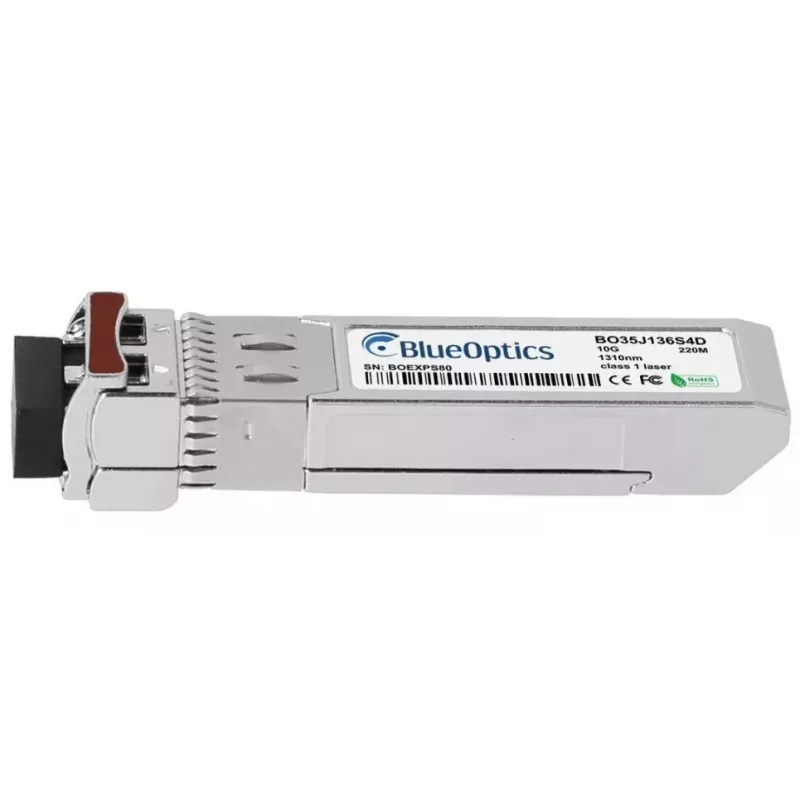

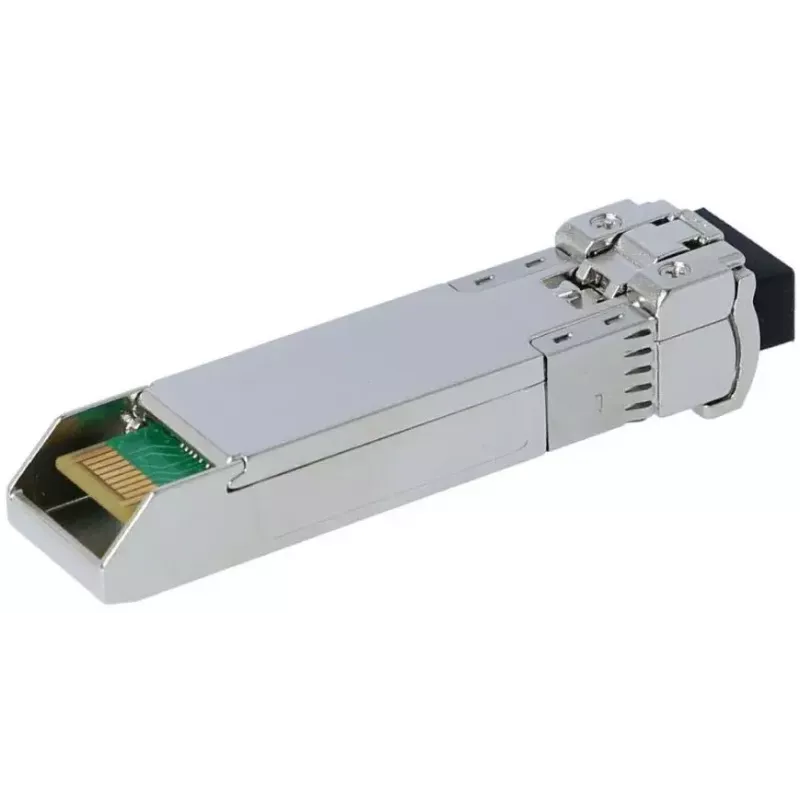

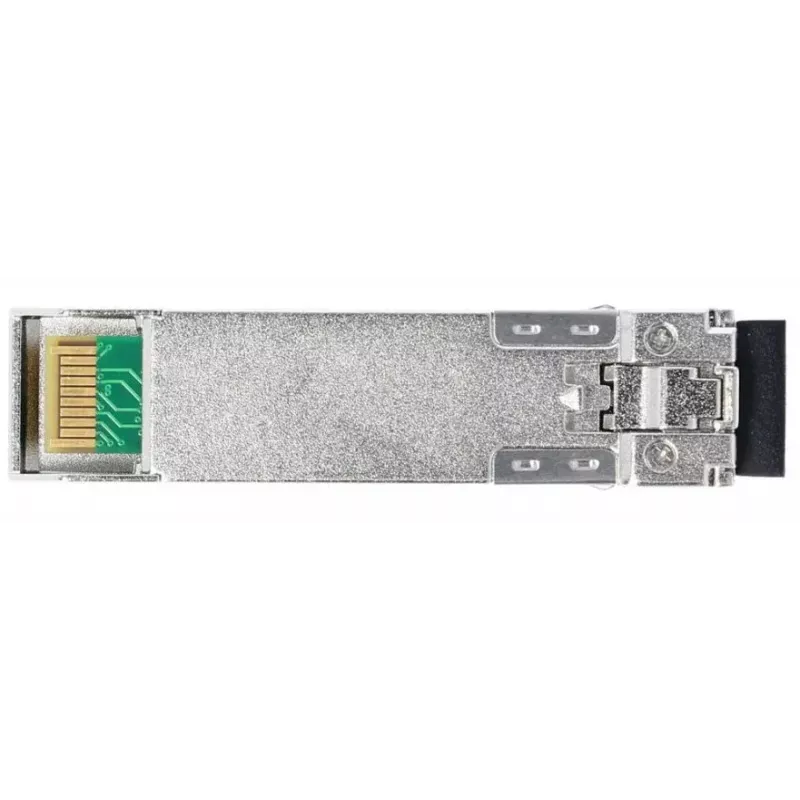

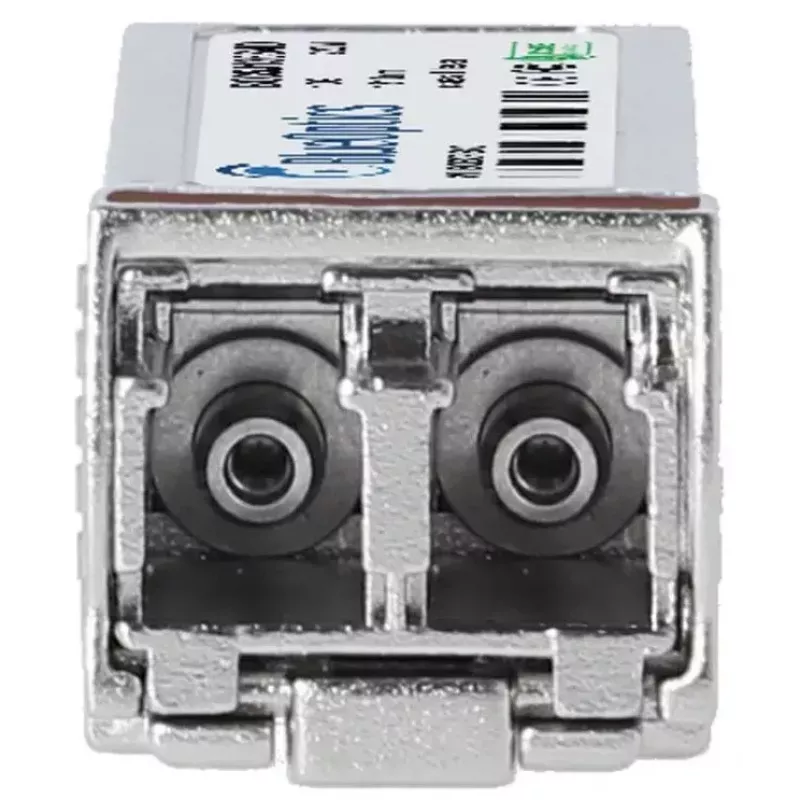

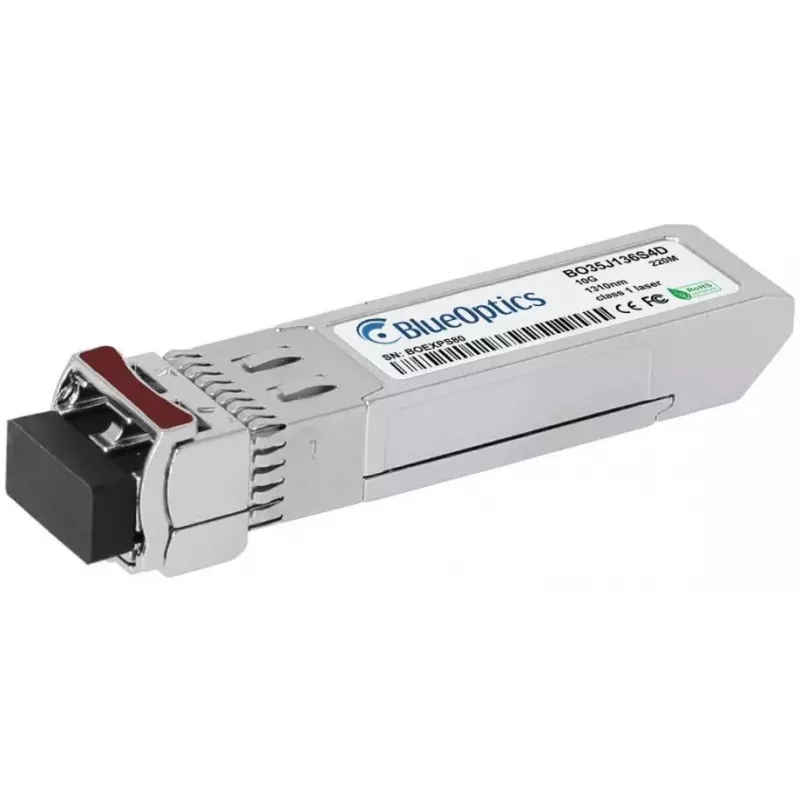

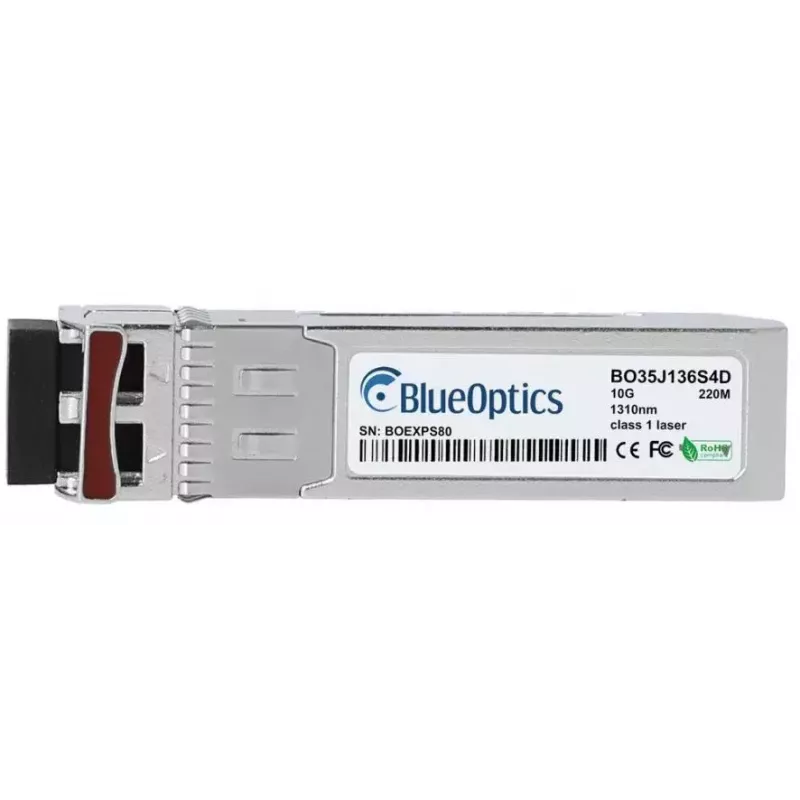

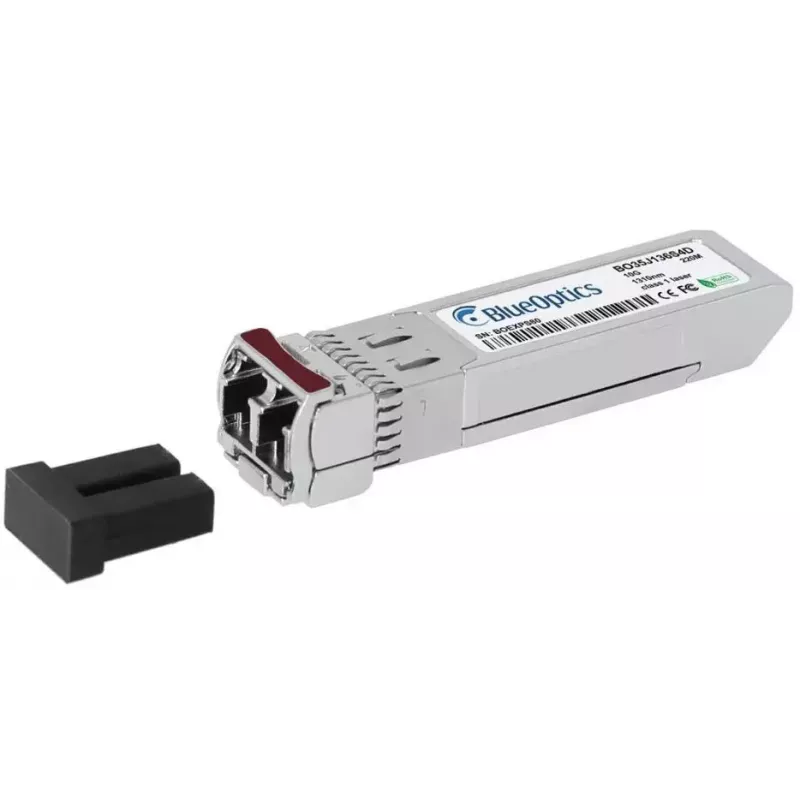

SFP-transceiver BlueOptics SFP-10G-LRM-NV 10000 Mbit/s 1310 nm

The BlueOptics SFP-10G-LRM-NV is an SFP+ fiber optic transceiver module designed for 10 Gbit/s network links. Operating at a wavelength of 1310 nm, this compact module provides a standardized optical interface for switches, routers and servers that support SFP+ ports. The transceiver is lightweight and housed in a silver metal enclosure, offering a space-efficient option for short to medium reach multimode fiber connections where 10 Gbit/s throughput is required.

Advantages

This BlueOptics SFP-10G-LRM-NV module supports a 10 Gbit/s data rate over established multimode fiber standards at 1310 nm, enabling interoperability with equipment that accepts SFP+ optics. Its small form factor and standard SFP+ interface simplify hot-plug replacement and installation in rack-mounted and modular networking devices. The metal housing aids in mechanical durability and thermal dissipation while the low weight reduces strain on port assemblies.

Suitable for

• 10 Gbit/s uplinks between switches and aggregation devices
• Server connections in data centers with SFP+ ports
• Short- to medium-reach multimode fiber links using 1310 nm optics
• Network equipment requiring hot-swappable SFP+ transceivers

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Operating wavelength: 1310 nm
• Form factor: SFP+ transceiver module
• Typical application: multimode fiber links (short to medium reach)
• Weight: 0.02 kg
• Color: silver metal housing

How to use

Install the BlueOptics SFP-10G-LRM-NV by inserting the module into a compatible SFP+ port until it clicks into place; ensure the host device is powered according to the manufacturer's guidelines. Connect the appropriate multimode fiber optic cable with matching connectors and verify link status via the host device interface. For safe handling, avoid touching optical interfaces and follow ESD precautions when installing or removing the transceiver.

Recommendations

Use multimode fiber that meets the distance and modal bandwidth requirements for 1310 nm LRM operation and verify compatibility with the host device firmware and optics policy. Keep the dust caps on unused ports and clean fiber connectors before connection. If higher reach or single-mode links are needed, select optics rated for those distances and wavelengths.
