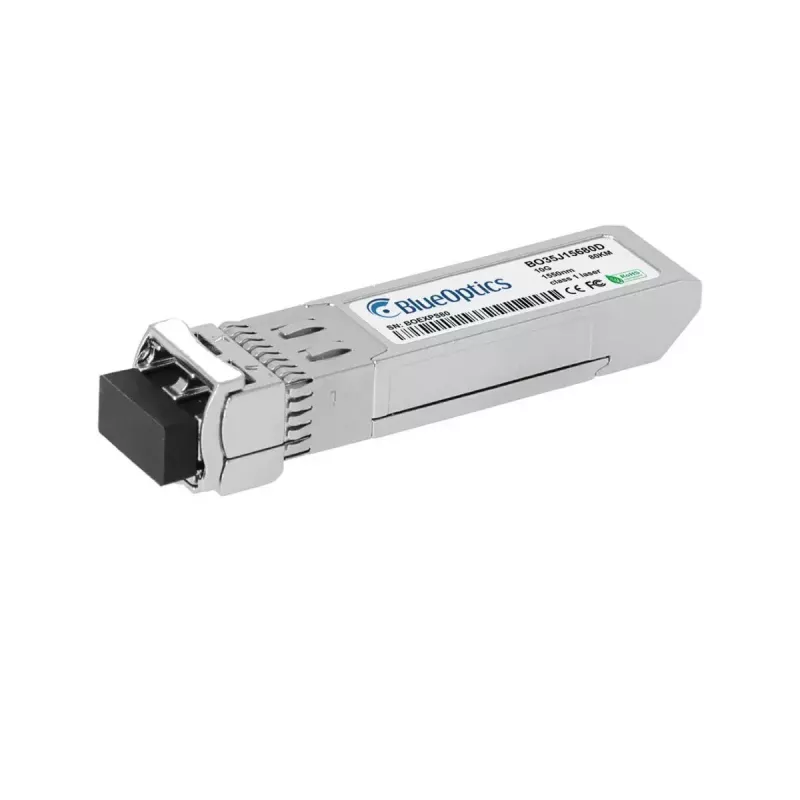

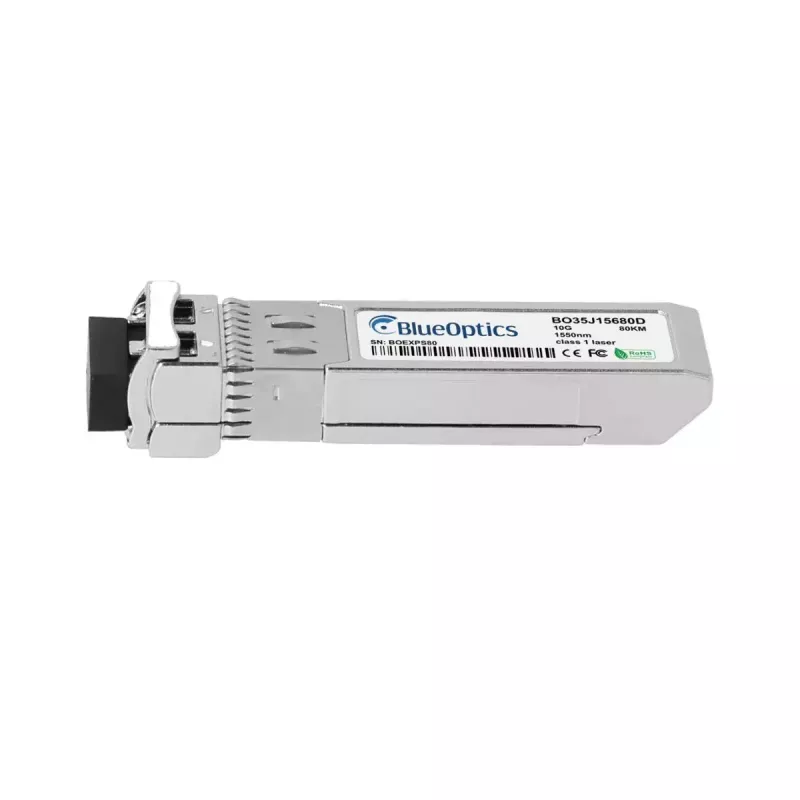

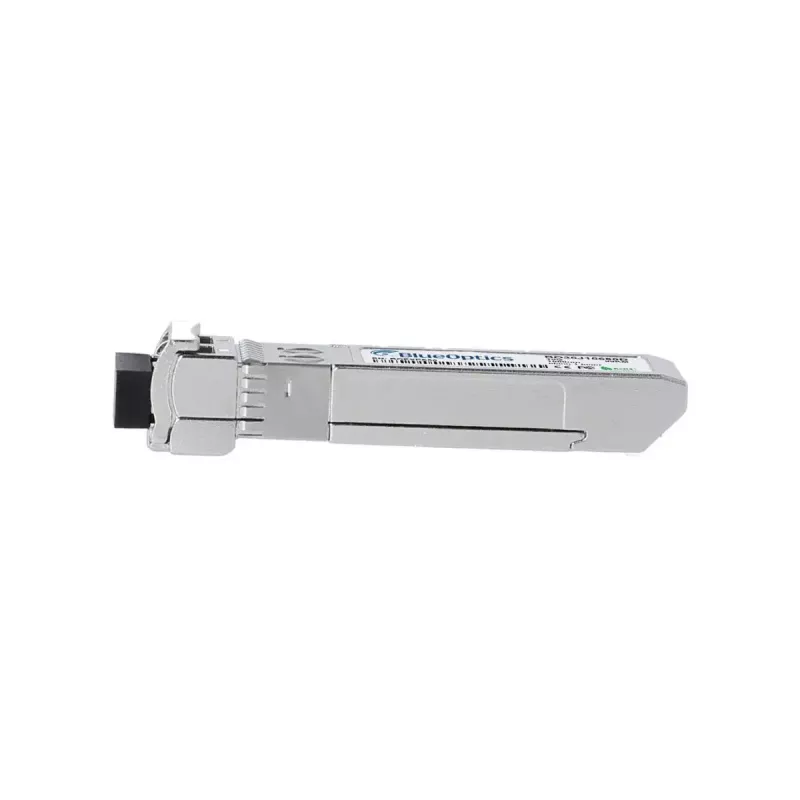

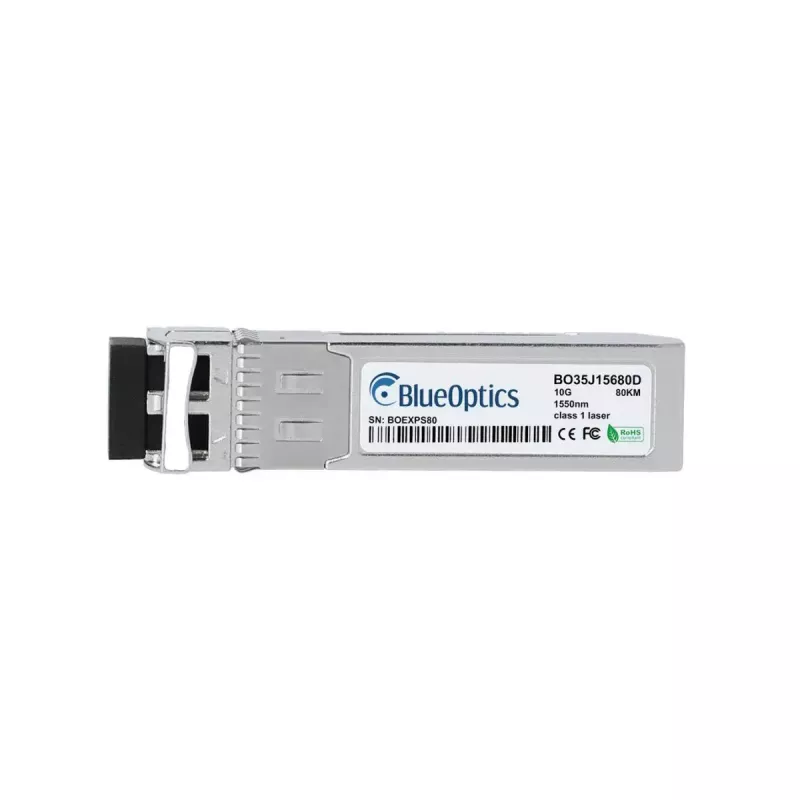

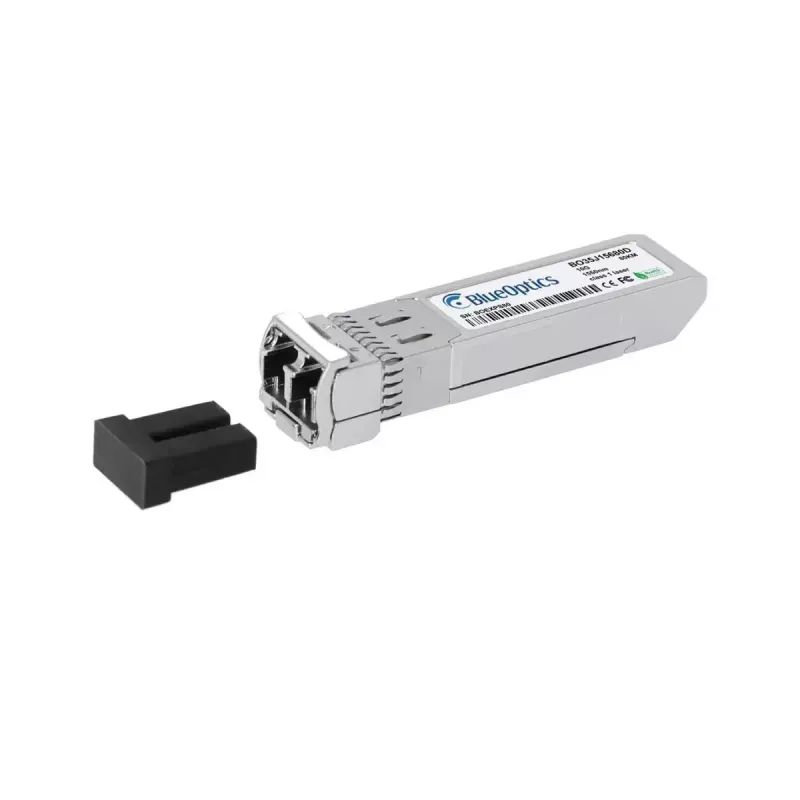

SFP+-transceivermodule BlueOptics 02310JFE-BO 10000 Mbit/s 1550 nm

The BlueOptics 02310JFE-BO SFP+ transceiver module is a single-mode fiber optic transceiver designed for 10 Gbit/s links with a 1550 nm wavelength. Encased in a silver housing and weighing approximately 20 g, it follows MSA form-factor requirements and provides compatibility with equipment that supports 10GBASE-ZR class optical modules. The module is RoHS compliant and specified for long operational life with an MTBF of 1,000,000 hours.

Advantages

This SFP+ module supports up to 10,000 Mbit/s data transfer and uses a 1550 nm transmitter and receiver for long-reach optical transmission over single-mode fiber. The module is built to industry MSA standards, includes LC duplex connectivity and implements digital diagnostic monitoring for remote status and performance checks. Components are selected for reliability to provide extended service life and stable optical performance.

Suitable for

• Long-reach 10 Gbit/s Ethernet links (10GBASE-ZR) over single-mode fiber
• High-speed connections between switches, routers and storage systems
• Data center interconnects and metropolitan area network links up to tens of kilometers
• Deployments requiring digital diagnostics (DDM/DOM) support for monitoring

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s
• Wavelength: 1550 nm (transmitter and receiver)
• Fiber type: Single-mode fiber
• Connector: LC duplex
• Housing color: Silver
• Weight: approx. 0.02 kg
• RoHS compliant
• MTBF: 1,000,000 hours
• Digital Diagnostic Monitoring (DDM/DOM) support (MSA SFF-8472 compatible)

How to use

Install the BlueOptics 02310JFE-BO SFP+ module into an SFP+ slot of a compatible network device until it clicks into place. Connect LC duplex single-mode fiber patch cords to the module’s ports, observing correct transmit/receive orientation. Verify link status on the host device and, if available, enable or read digital diagnostics through the equipment management interface to monitor parameters such as supply voltage, optical power and temperature. Follow the host vendor’s instructions for any software or compatibility settings required.

Recommendations

Use high-quality single-mode LC duplex patch cords and, where applicable, patch panels to preserve optimal optical performance. Confirm compatibility lists for the target hardware platform and enable DDM/DOM if remote monitoring is needed. Avoid bending fiber beyond specified radii and keep connectors clean to minimize attenuation and maintain link stability.
