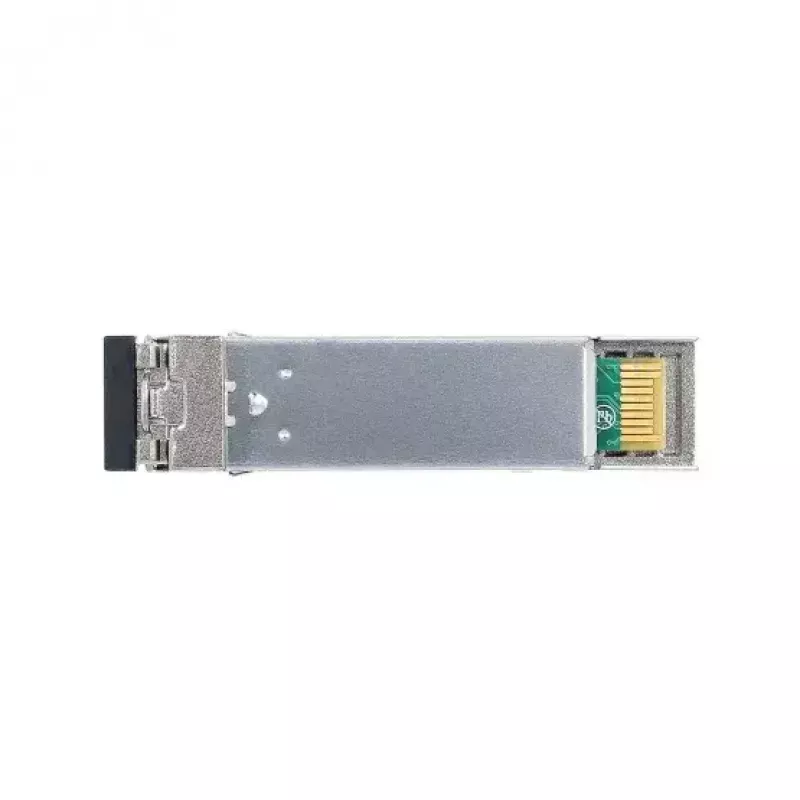

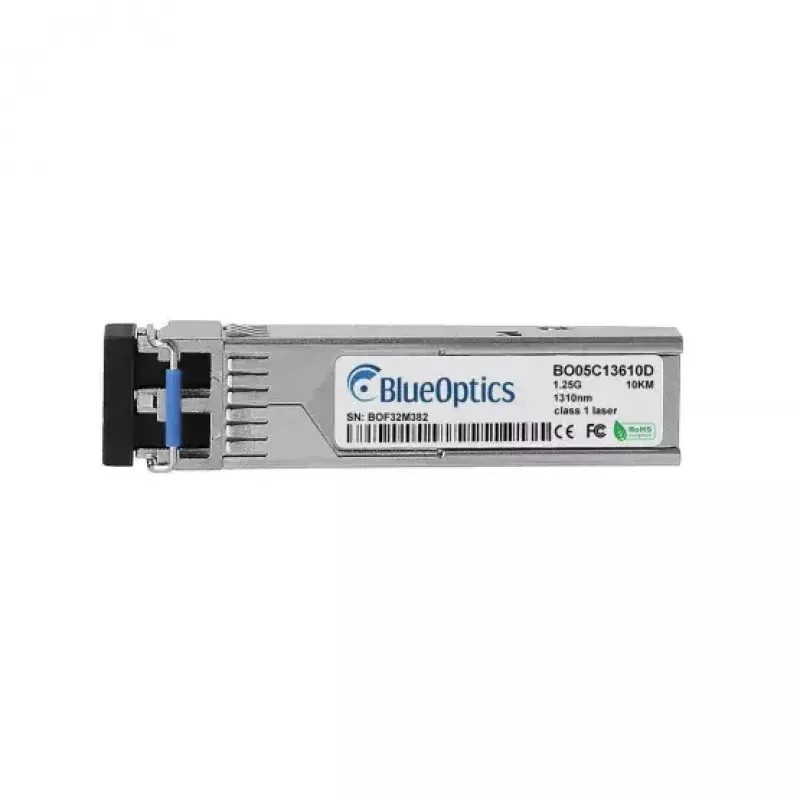

SFP-transceivermodule BlueOptics 943 015-001-BO 1310 nm LC 10000 m

The BlueOptics 943 015-001-BO SFP transceiver module is a single‑mode fiber optic transceiver in a compact SFP form factor. Operating at a wavelength of 1310 nm, it supports optical data transmission over distances up to 10,000 m and uses an LC duplex connector for fiber interfaces. The module is compatible with 1000BASE‑LX applications and is designed for integration into network switches, routers and storage equipment that accept SFP transceivers.

Advantages

This SFP transceiver offers a standardized SFP interface that simplifies installation and replacement. With single‑mode 1310 nm optics and LC connectivity it enables long‑reach links up to 10 km while remaining lightweight and compact. The module is built to MSA mechanical and electrical standards for interoperability and includes support for digital diagnostics (DDM/DOM) when supported by host hardware, allowing remote monitoring of parameters such as optical power and temperature.

Suitable for

• Long‑reach Gigabit Ethernet links (1000BASE‑LX) over single‑mode fiber
• Interconnecting switches, routers and storage systems across campus or metropolitan distances
• Replacing or extending existing SFP ports to enable fiber uplinks up to 10 km
• Environments where LC duplex fiber connections are used

Key specifications

• Form factor: SFP (small form‑factor pluggable)
• Wavelength: 1310 nm
• Maximum transmission distance: up to 10,000 m (10 km) over single‑mode fiber
• Connector: LC duplex
• Supported standard: 1000BASE‑LX (Gigabit Ethernet)
• Weight: 20 g
• Color: grey
• Digital Diagnostics: supported when enabled by host (DDM/DOM, SFF‑8472 compliant)

How to use

Install the module into an empty SFP slot on a compatible switch, router or storage device, ensuring the host device supports 1000BASE‑LX SFP transceivers and DDM if diagnostics are required. Connect LC duplex single‑mode fiber patch cords to the module, observing correct Tx/Rx orientation. Configure the host interface according to network settings (speed, duplex and any administrative parameters) and verify link status through the device management interface. For diagnostic monitoring, enable and read DDM/DOM values via the host platform when supported.

Recommendations

Use high‑quality single‑mode LC patch cords and maintain proper fiber handling to achieve the specified range and signal integrity. Verify compatibility with your hardware vendor’s supported transceiver list and test a sample in your environment before large deployments. Keep the module and fiber connectors clean and protected when not in use to prevent signal loss and connector damage.
