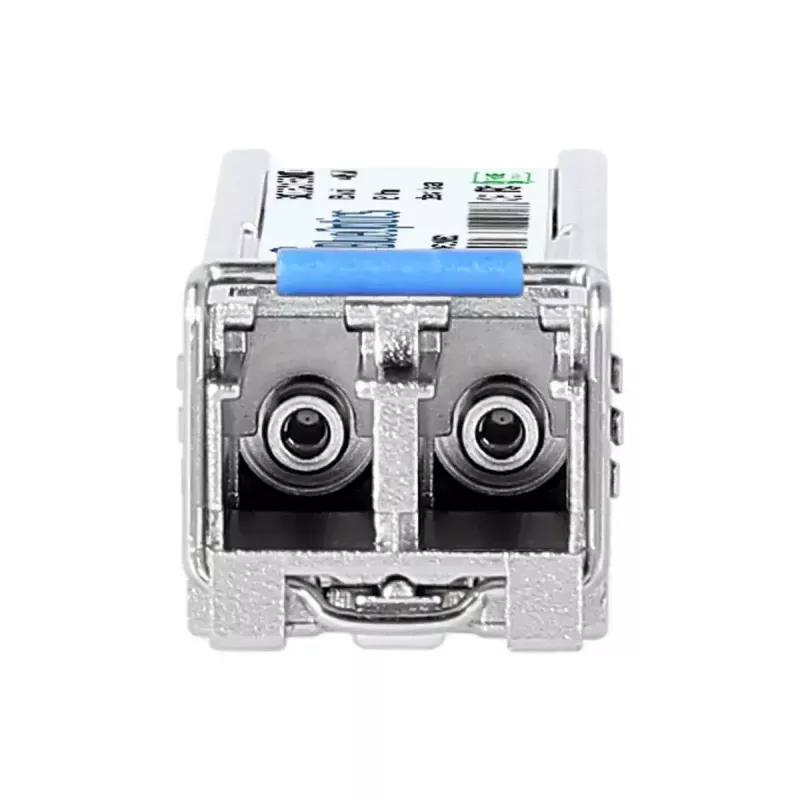

SFP-transceivermodule BlueOptics SFP-100FX-S-30KM-T-BO 155 Mbit/s 1310 nm

The BlueOptics SFP-100FX-S-30KM-T-BO is an SFP fiber optic transceiver module designed for 100BASE-LH applications with a maximum data transfer rate of 155 Mbit/s. Operating at a wavelength of 1310 nm and fitted with an LC duplex connector, this compact module supports optical links up to 40,000 m and weighs approximately 20 g. The module follows MSA standards and is intended for use in common networking hardware such as switches, routers, storage systems and other devices that accept SFP form-factor transceivers.

Advantages

The transceiver offers stable optical transmission with separate transmit and receive lasers at 1310 nm and complies with industry MSA specifications for interoperability. It is engineered using high-quality components to provide a long mean time between failures (MTBF) of around 3,000,000 hours and supports Digital Diagnostics Monitoring (DDM/DOM) for real-time status reporting of voltage, temperature and optical power when used in compatible hosts. Its small form factor and LC duplex interface facilitate straightforward installation and integration into existing fiber networks.

Suitable for

Key specifications

How to use

Insert the SFP-100FX-S-30KM-T-BO into a compatible SFP slot on the target device while the device is powered according to the manufacturer's guidance or hot-plug if supported. Connect LC duplex fiber patch cables ensuring correct transmit-to-receive alignment. Verify that the host device recognizes the transceiver and, if required, enable or confirm DDM/DOM monitoring in host management software to access diagnostic parameters. Use appropriate single-mode fiber and follow recommended installation practices for fiber routing, strain relief and connector cleanliness to ensure reliable operation.

Recommendations

Use single-mode fiber with LC duplex connectors and maintain clean connectors and proper polishing to achieve rated distance and signal quality. Confirm host compatibility with 100BASE-LH SFP modules and enable DDM/DOM in the host if remote diagnostics are required. Avoid bending fiber beyond recommended radius and protect the transceiver from electrostatic discharge during handling.
