SFP-transceivermodule BlueOptics SFP-FC-M-A-A-BO 155 Mbit/s 1310 nm

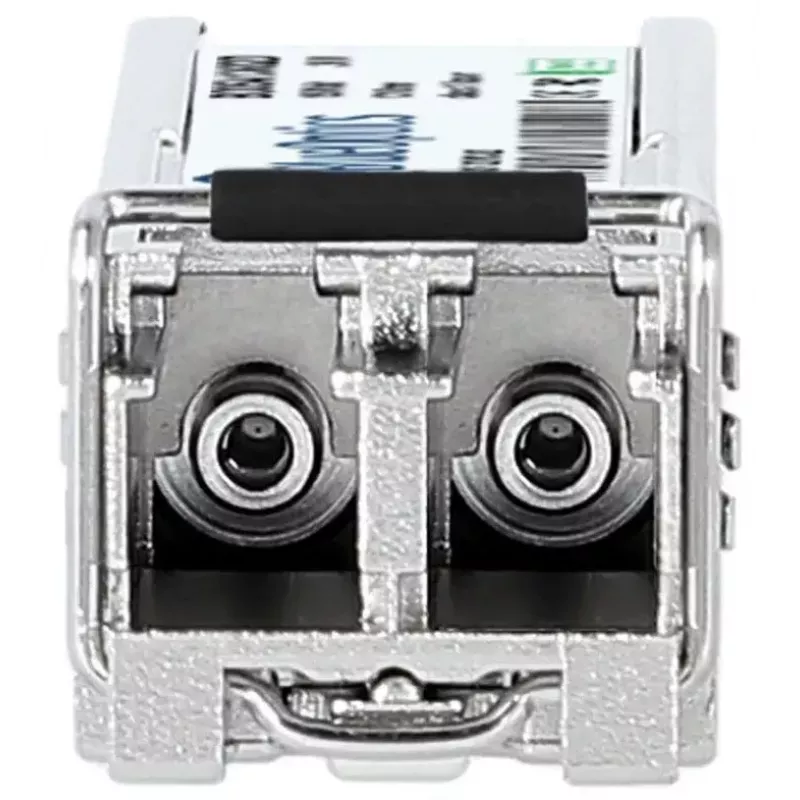

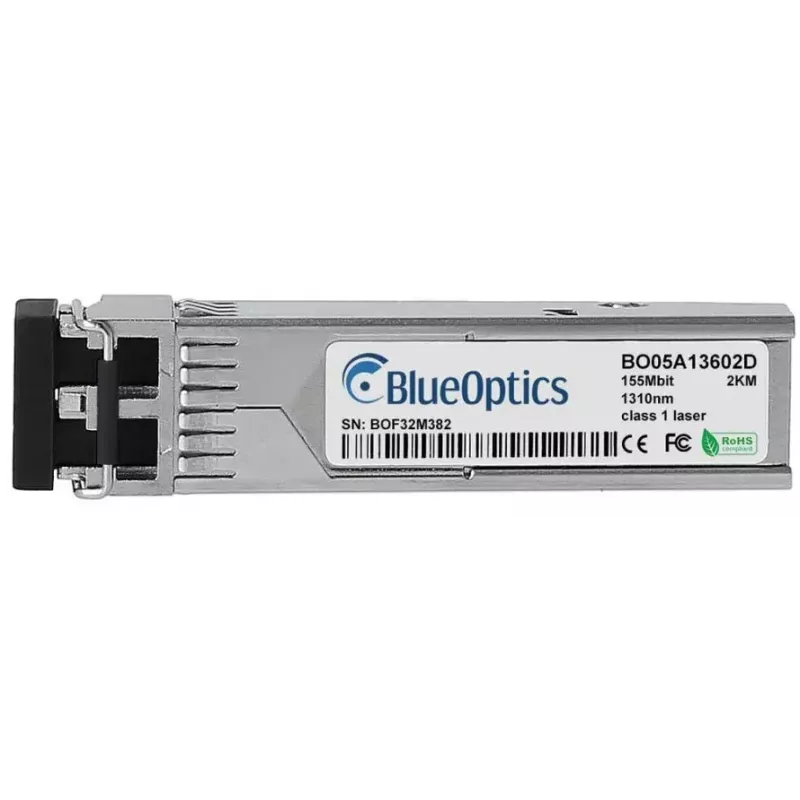

The BlueOptics SFP-FC-M-A-A-BO is a small-form pluggable fiber-optic transceiver module designed for optical data links with a maximum line rate of 155 Mbit/s. It operates at a wavelength of 1310 nm, features an SFP interface and an LC duplex optical connector design, and comes in a compact metal housing with a product weight of approximately 3 g. The module uses 3.3 V supply voltage and is intended for integration into network equipment that accepts SFP-format transceivers.

Advantages

This SFP transceiver supports standardized SFP form factor specifications and is built to meet common MSA compatibility requirements, enabling straightforward insertion into compatible switches, routers and other networking devices. The 1310 nm optical wavelength and LC duplex connection allow simultaneous transmit and receive channels on separate fibers, while the metal casing provides mechanical robustness and EMI protection. The low weight and compact size reduce space occupation in dense port environments.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP transceiver by inserting it into an empty SFP slot on compatible network equipment until it latches. Connect LC duplex fiber patch cords to the module—one fiber for transmit and one for receive—observing correct polarity. Power up the host device and verify link status in the device management interface. If the host supports digital diagnostic monitoring (DDM/DOM), enable or query the diagnostics to view real-time parameters such as supply voltage, optical output and input power, laser bias current and module temperature.

Recommendations

Use multimode or single-mode fiber as specified by the system design and ensure patch cords and patch panels are rated for 1310 nm operation. Confirm host device compatibility with third-party SFP modules and verify whether DDM/DOM functionality is supported by the equipment to access monitoring features. Handle the optical connector endfaces carefully and keep dust caps in place when not connected to avoid signal loss or damage.
