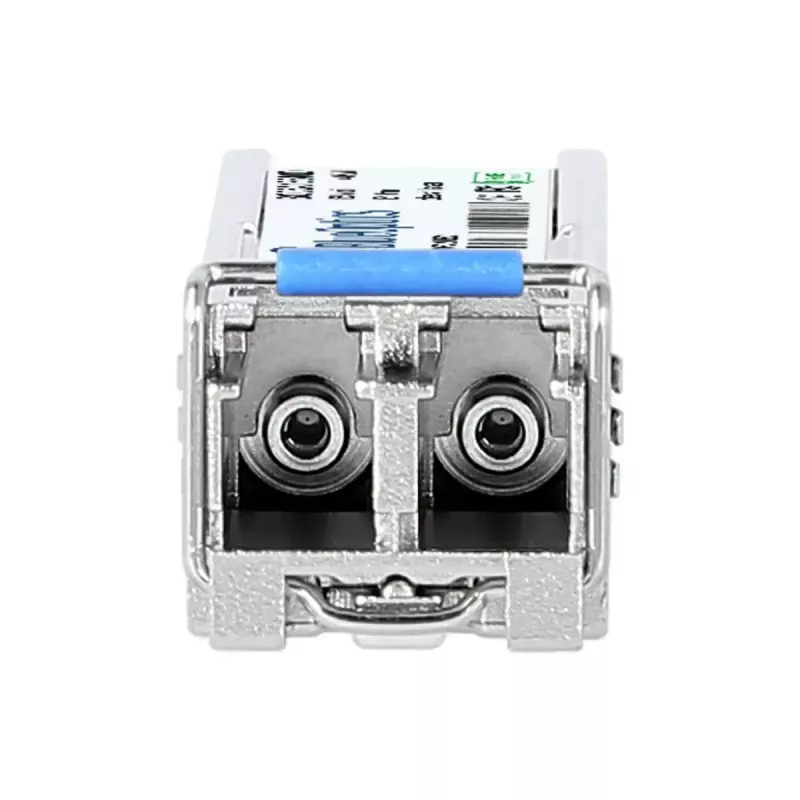

SFP-transceivermodule BlueOptics SFP100SM30D-W-BO 155 Mbit/s 1310 nm

The BlueOptics SFP100SM30D-W-BO is a small form-factor pluggable (SFP) fiber optic transceiver module designed for data rates up to 155 Mbit/s. It operates at a wavelength of 1310 nm, uses single-mode fiber with an LC duplex connector, and is housed in a durable metal casing with a lightweight construction of approximately 3 g. The module runs on a 3.3 V supply and is intended for use in network equipment that supports MSA-compliant SFP transceivers.

Advantages

This SFP transceiver supports up to 155 Mbit/s over single-mode fiber and is compatible with MSA SFP form-factor slots. The metal housing provides mechanical protection and thermal stability while the compact, lightweight design simplifies installation in switches, routers and other network devices. Compliance with common SFP interfaces and use of proven optical and electronic components contribute to long operating life and reliable optical links.

Suitable for

• Point-to-point fiber links between switches and routers
• Long-distance Ethernet and SDH/SONET applications up to multi-kilometre ranges
• Upgrading legacy 100BASE-LH ports to SFP modules
• Storage and network hardware that accept MSA SFP transceivers

Key specifications

• Form factor: SFP (small form-factor pluggable)
• Data rate: up to 155 Mbit/s
• Wavelength: 1310 nm
• Fiber type: single-mode fiber (SMF)
• Connector: LC duplex
• Operating voltage: 3.3 V
• Housing: metal casing, silver colour
• Weight: approx. 0.003 kg

How to use

Insert the BlueOptics SFP100SM30D-W-BO module into an appropriate MSA-compliant SFP slot on your network device until it latches securely. Connect LC duplex single-mode fiber patch cords to the transmitter and receiver ports, ensuring correct TX/RX orientation. Power the host device and verify link status via device LEDs or management interface. If supported by the host, enable and monitor digital diagnostics (DDM/DOM) to obtain real-time parameters such as supply voltage, temperature, transmit power and receive power.

Recommendations

Ensure the host device officially supports third-party SFP modules or is configured to accept MSA-compliant transceivers. Use quality single-mode LC duplex patch cords and, where possible, test the module in your hardware prior to deployment. If DDM/DOM monitoring is required, confirm the host hardware and firmware support these diagnostics to access live transmitter/receiver and environmental data.
