SFP+-transceivermodule BlueOptics SFPP-10G-LR-C-BO 10000 Mbit/s 1310 nm

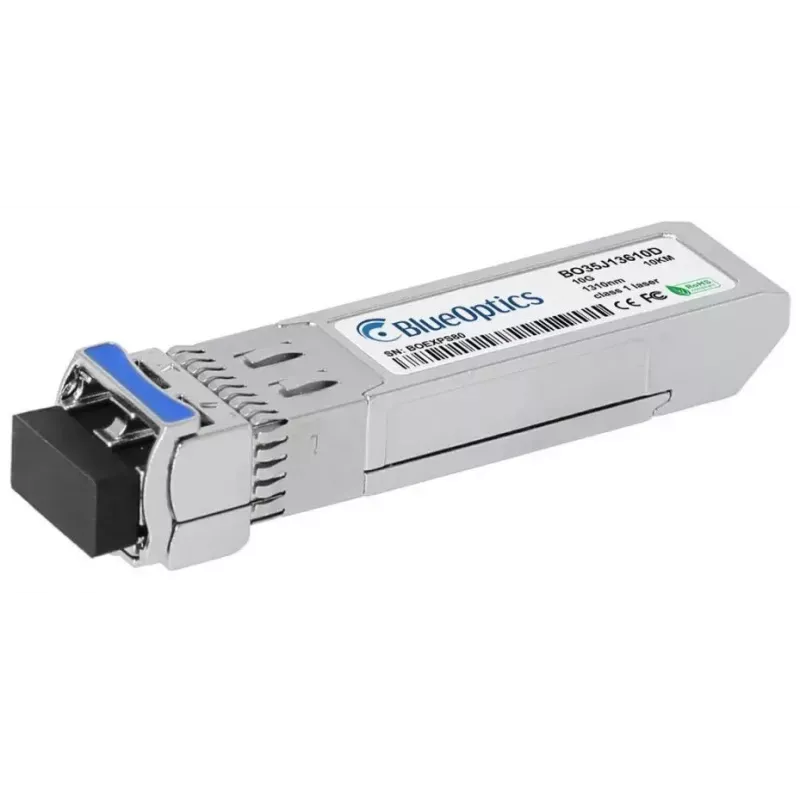

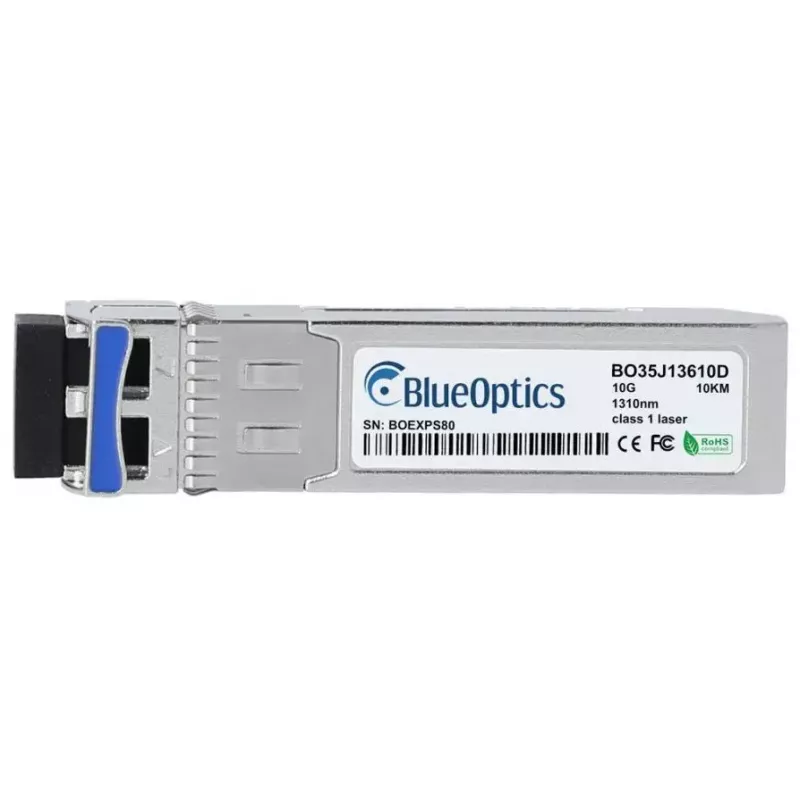

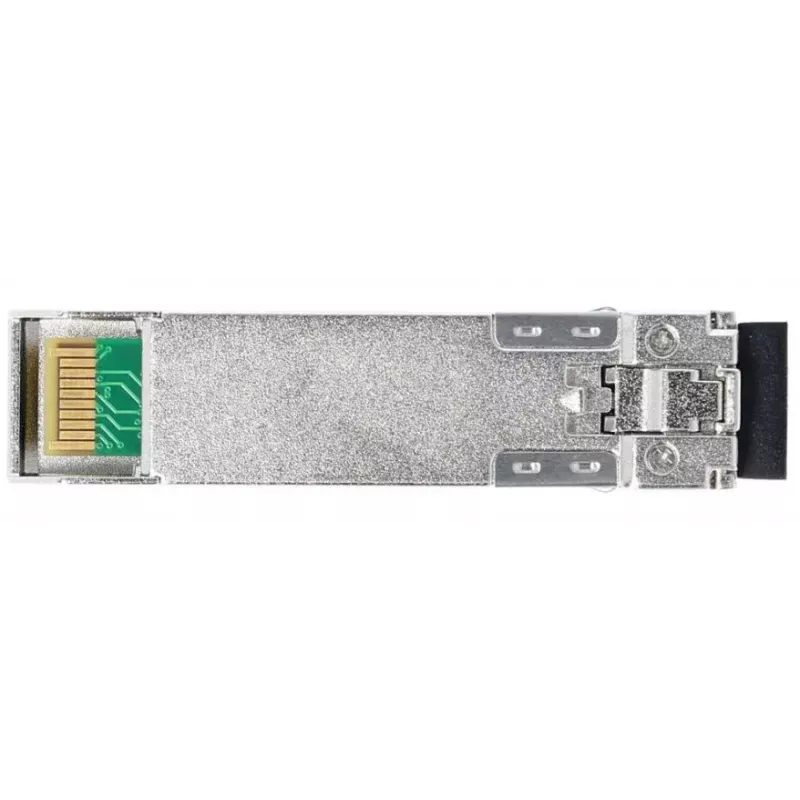

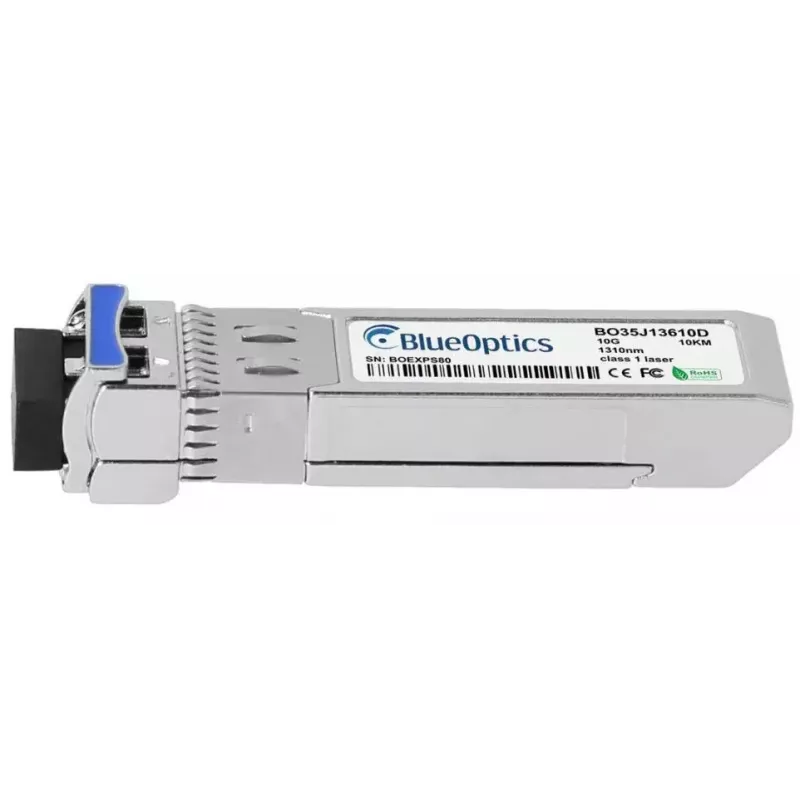

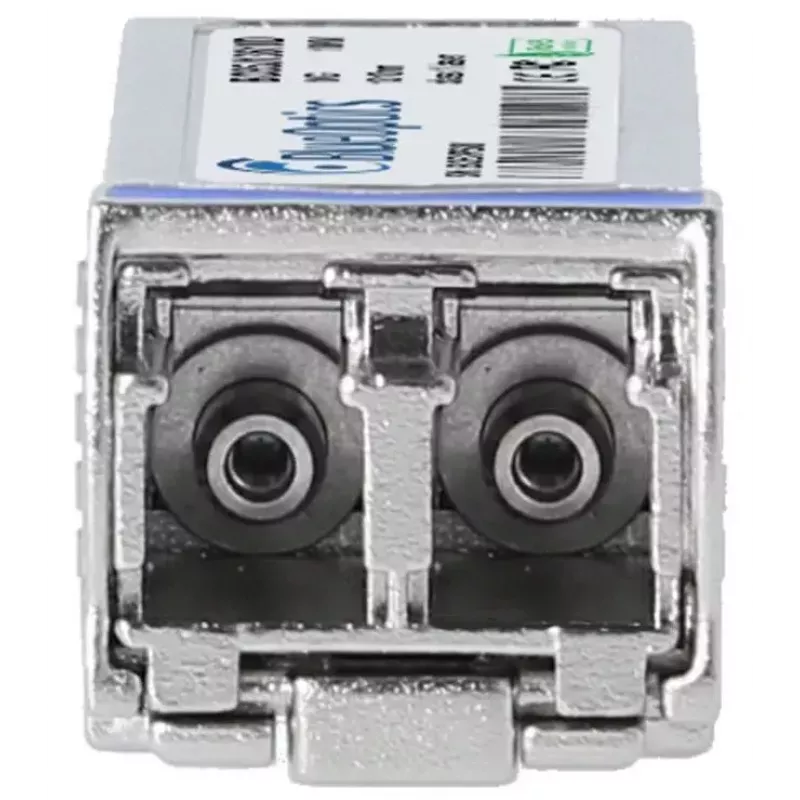

The BlueOptics SFPP-10G-LR-C-BO is an SFP+ fiber-optic transceiver module for single-mode links, supporting data rates up to 10,000 Mbit/s and operating at a wavelength of 1310 nm. Encased in a compact metal housing and powered by a 3.3 V input, the module uses an LC duplex optical connector and is designed for insertion into SFP+ ports of compatible network equipment. Its lightweight silver metal body and standardized SFP+ interface make it suitable for high-speed optical connections over extended distances.

Advantages

The transceiver delivers 10GBASE-LR performance with a 1310 nm transmitter and receiver optimized for single-mode fiber, providing a standardized SFP+ form factor that supports common high-speed protocols such as Ethernet and Fibre Channel over optical links. The metal housing offers mechanical durability and EMI resilience while the low weight simplifies handling and installation. Compliance with Multi-Source Agreement (MSA) form factor and use of an LC duplex connector ensures broad interoperability with SFP+ ports and fiber patching infrastructure.

Suitable for

Key specifications

How to use

Ensure the host device supports SFP+ transceivers and that the slot is powered down or follows the equipment manufacturer's hot-swap procedure. Align and insert the SFP+ module into an appropriate SFP+ port until it latches; connect LC duplex single-mode fiber patch cords to the module's optical connector, observing transmit and receive orientation. Verify link activity and speed through the host device management interface. If digital diagnostics are available and supported by the host, monitor operational parameters such as input/output power and temperature via the device's diagnostics utilities.

Recommendations

Use single-mode LC duplex fiber patch cords and, where possible, clean connector end-faces before mating. Confirm compatibility with the host device and allow proper cooling and airflow around the module. For stable long-term operation monitor diagnostic readings when supported and follow fiber handling best practices to preserve link quality.
