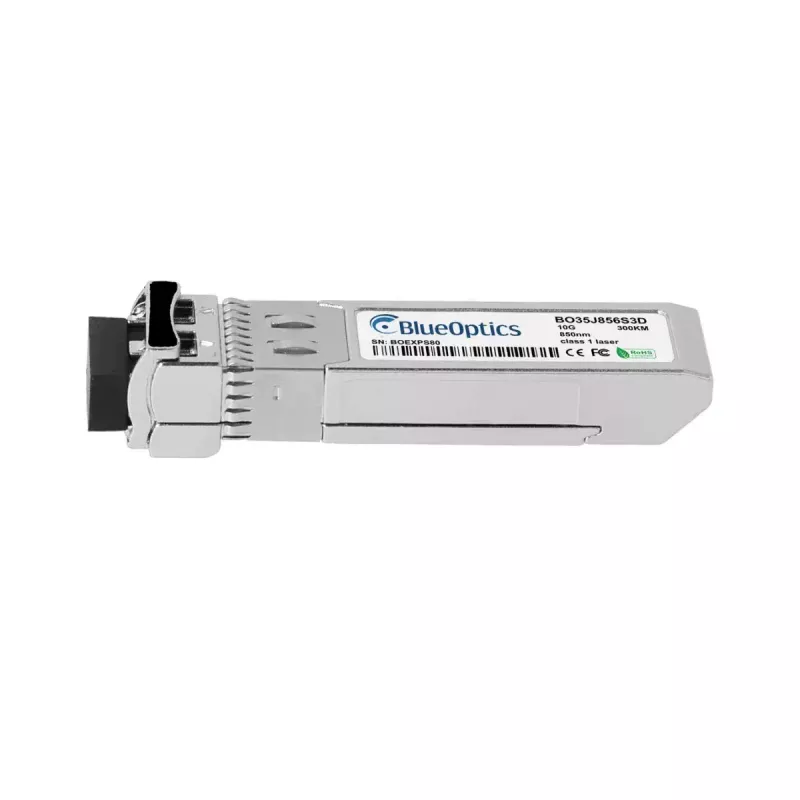

SFP+-transceivermodule BlueOptics TRX-10GITSFPP-SR-BO 10000 Mbit/s 850 nm

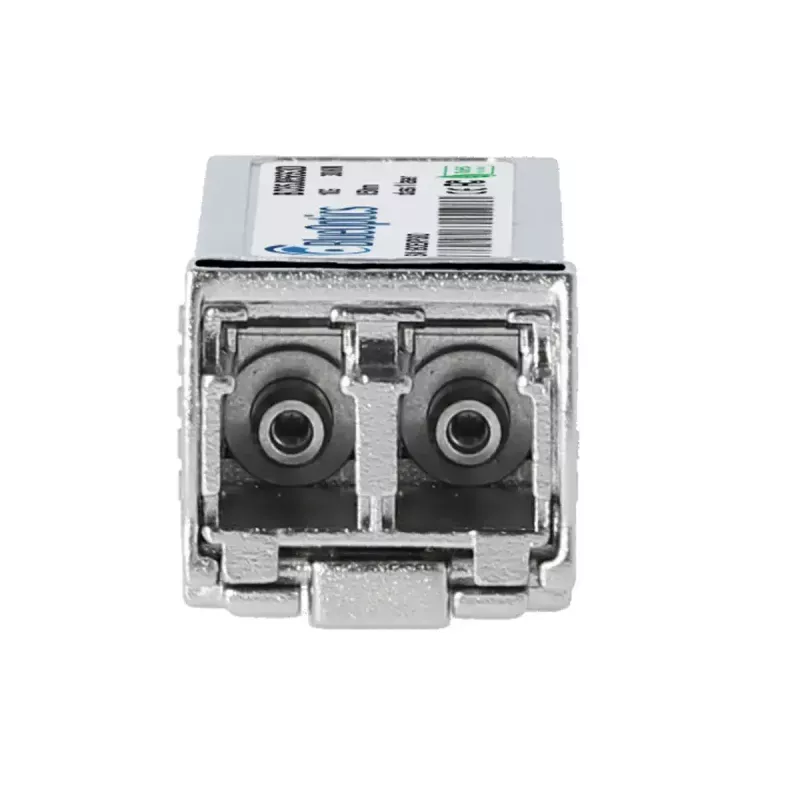

The BlueOptics TRX-10GITSFPP-SR-BO is an SFP+ transceiver module for 10GBASE-SR applications, offering a maximum data transfer rate of 10000 Mbit/s over multimode fiber at an 850 nm wavelength. Housed in a compact SFP+ form factor with an LC duplex connector, the module supports optical transmission up to 300 m and includes digital diagnostic monitoring (DDM/DOM) compatible with MSA SFF-8472 when supported by the host device. The transceiver is designed for compatibility with common network hardware platforms and is engineered for long operational life with an MTBF of 3,000,000 hours.

Advantages

The transceiver combines high-speed 10 Gigabit connectivity with a compact SFP+ form factor and LC duplex interface, enabling easy integration into switches, routers and storage devices. Multimode operation at 850 nm provides reliable short-range links up to 300 m, while the integrated DDM/DOM capability enables real-time monitoring of voltage, temperature, transmit and receive power levels when supported by the host. Constructed using MSA-compliant components and selected optical and electronics parts, the module is engineered for consistent performance and long service life.

Suitable for

Key specifications

How to use

Insert the SFP+ transceiver into a compatible SFP+ slot on your switch, router or storage system until it clicks into place, making sure the host hardware supports 10GBASE-SR SFP+ modules and, if required, DDM/DOM functions. Connect LC duplex multimode fiber patch cables to the module’s LC ports, respecting transmit and receive orientation. After installation, verify link status and operational parameters via the host device management interface or, if available, the module’s digital diagnostics readouts to confirm correct power levels and temperature.

Recommendations

Use high-quality OM3/OM4 multimode fiber patch cables for optimal reach and performance up to the specified 300 m. Verify that the host device firmware or configuration allows third-party SFP+ modules if applicable, and enable DDM/DOM monitoring in the host to take advantage of diagnostic data. Handle the module by its housing, avoid touching the fiber connectors, and keep protective dust caps on connectors when not in use to prevent contamination.
