SHARKOON Tower Chassis - V1000 RGB Micro Tower zwart

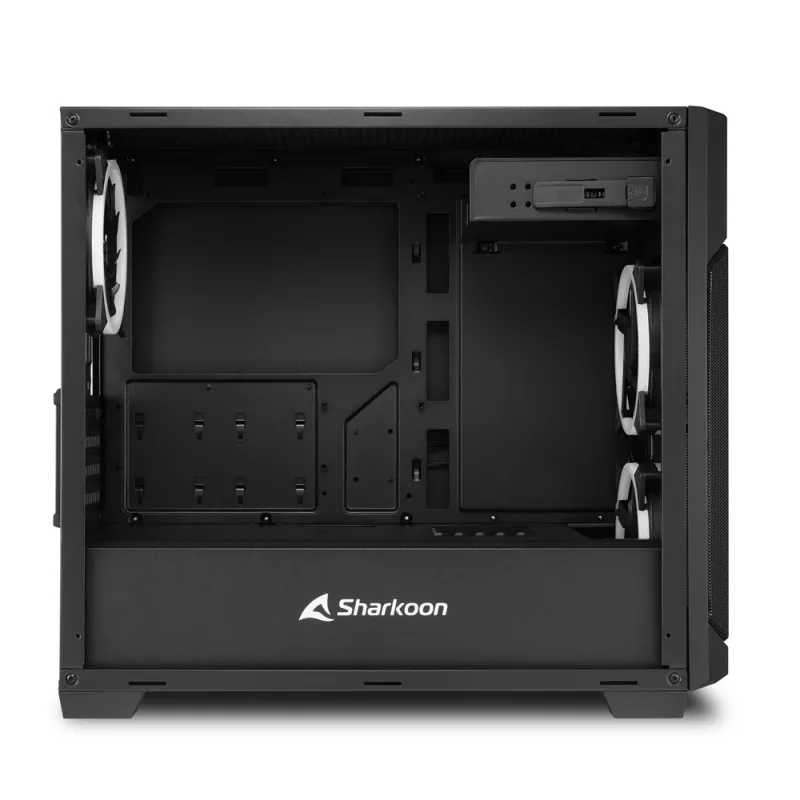

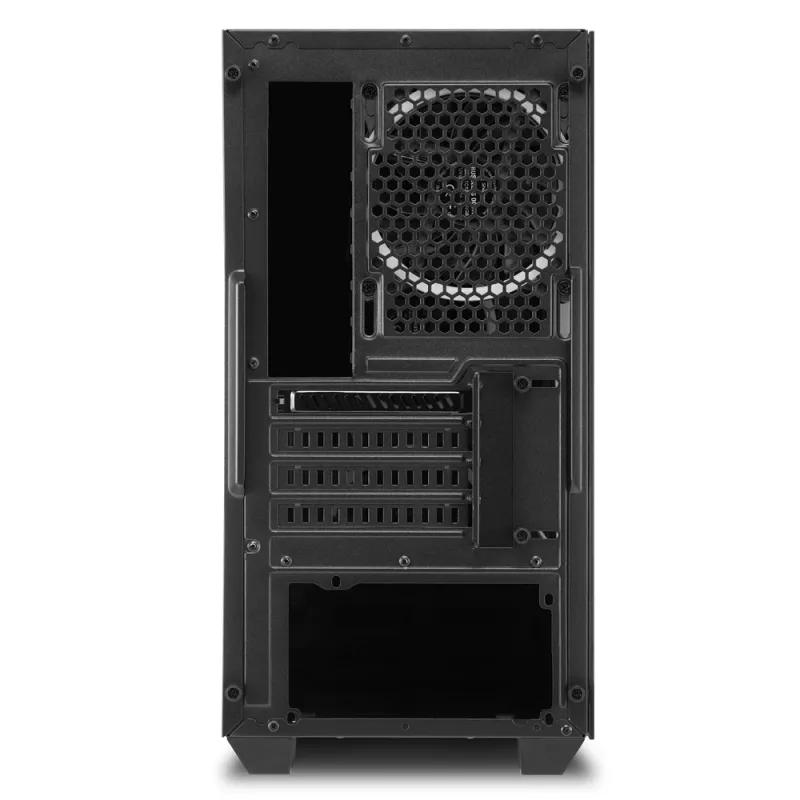

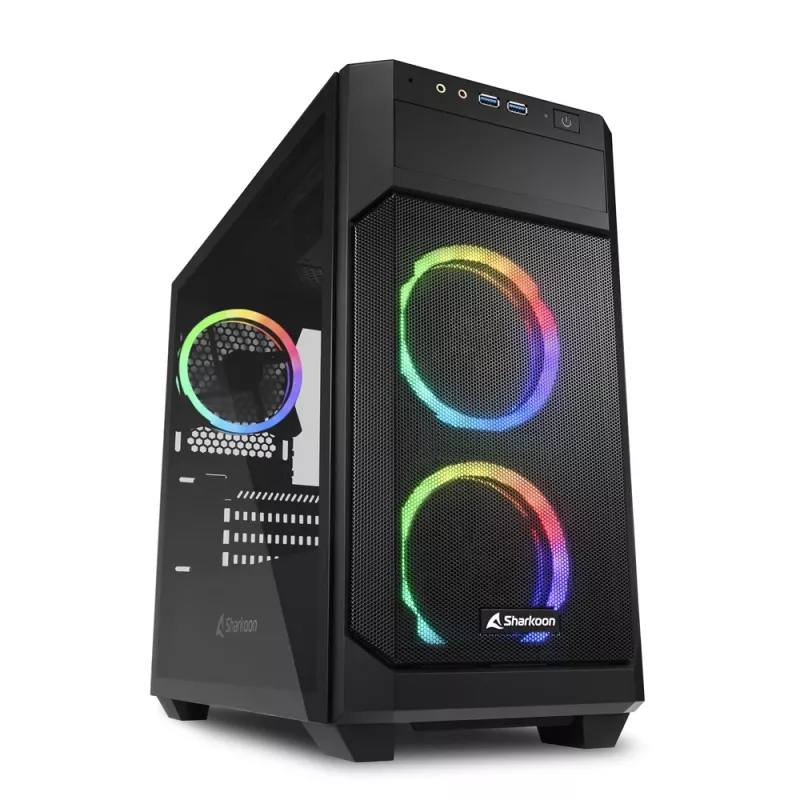

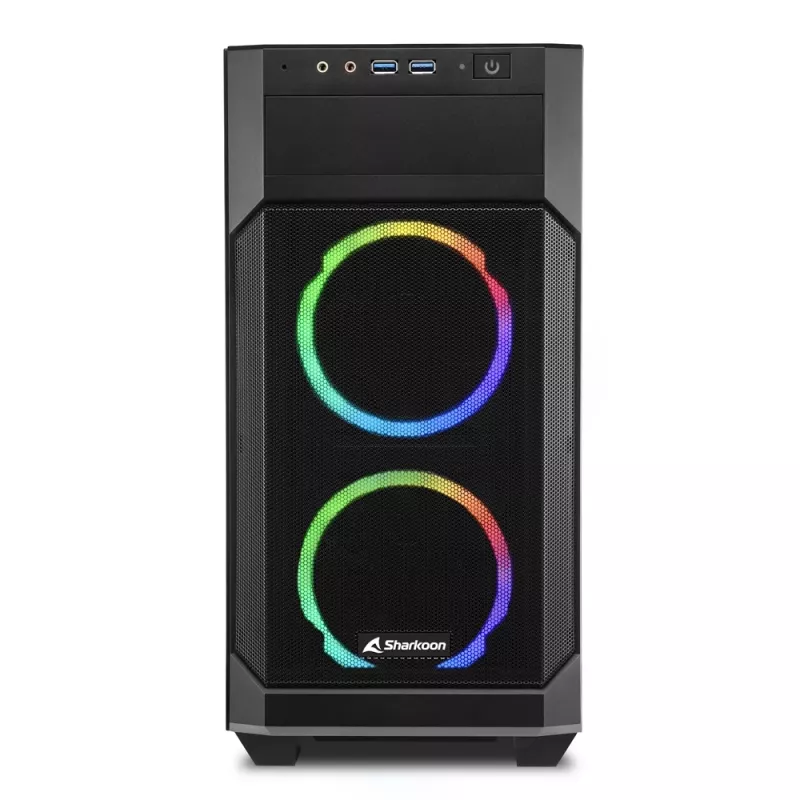

The Sharkoon V1000 RGB Micro Tower in black is a compact micro-ATX PC case with three pre-installed 120 mm RGB LED fans (two in the front behind a mesh panel and one at the rear). It supports Micro ATX and Mini-ITX motherboards and offers space for large components such as graphics cards up to 40 cm in length. The case includes a bottom power supply tunnel to conceal cables and an integrated tempered glass side panel for component presentation.

Advantages

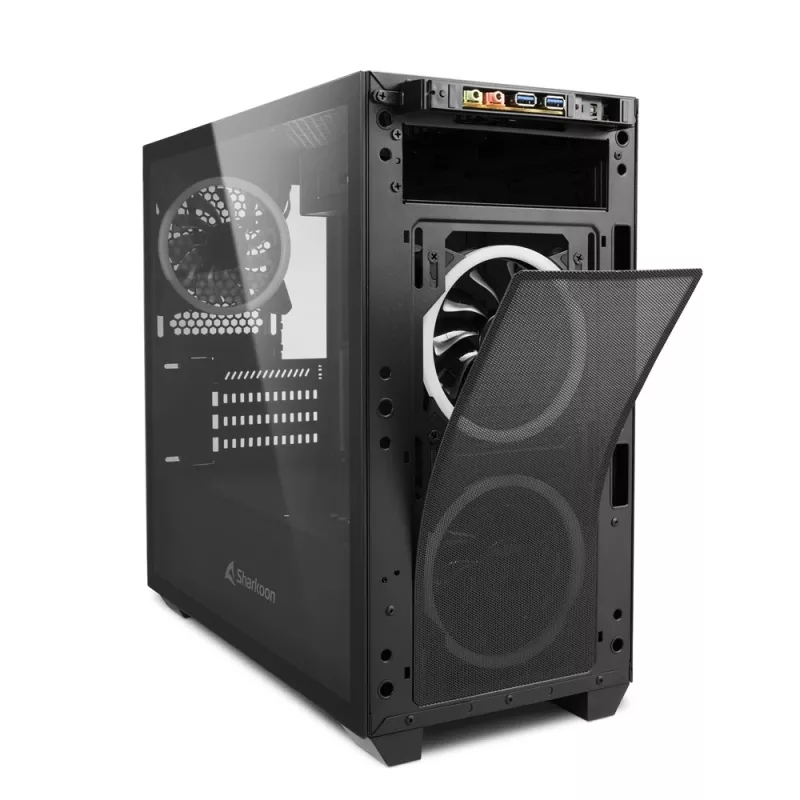

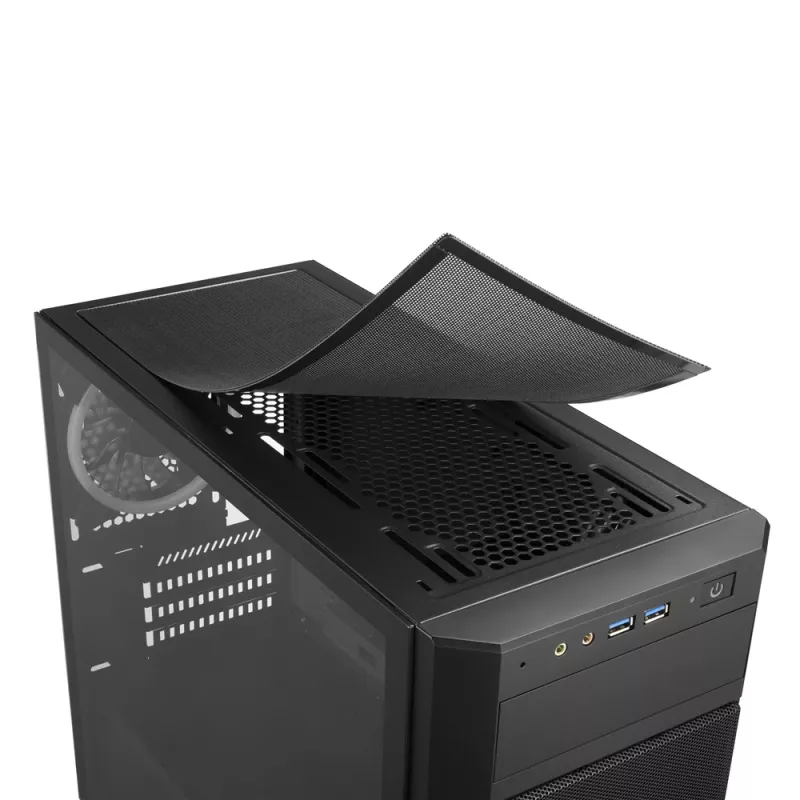

The V1000 RGB comes with three RGB 120 mm fans pre-installed and provides additional mounting space at the top for up to three 120 mm or two 140 mm fans. Removable dust filters on the front, top and bottom protect internal components and simplify cleaning. The bottom tunnel holds the PSU (up to 24 cm) and the HDD/SSD cage, helping to keep the interior tidy. The tempered glass side panel displays illuminated hardware, and the case supports motherboard-based RGB control via a 5V-D-G or 5V-D-coded-G header.

Suitable for

• Compact gaming builds with Micro ATX or Mini-ITX motherboards
• Office PCs and small multimedia stations
• RGB-focused systems using 5V addressable RGB headers

Key specifications

• Form factor: Micro Tower (supports Micro ATX, Mini-ITX)
• Pre-installed fans: 3 × 120 mm RGB (2 front, 1 rear)
• Additional fan mounts: Top for up to 3 × 120 mm or 2 × 140 mm

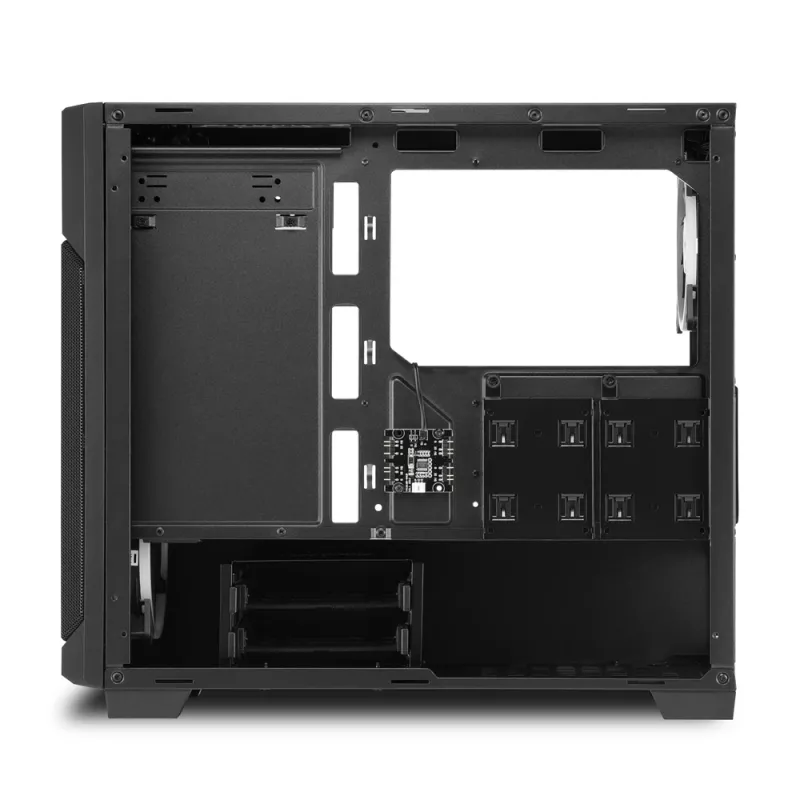

• Drive bays: 1 × 5.25" removable mount (with 3.5" opening), 2 × 3.5" HDD (or 2 × 2.5" SSD) in cage, plus 2 × 2.5" behind motherboard tray
• Max GPU length: 400 mm
• Max CPU cooler height: approx. 158 mm
• PSU length limit in tunnel: 240 mm

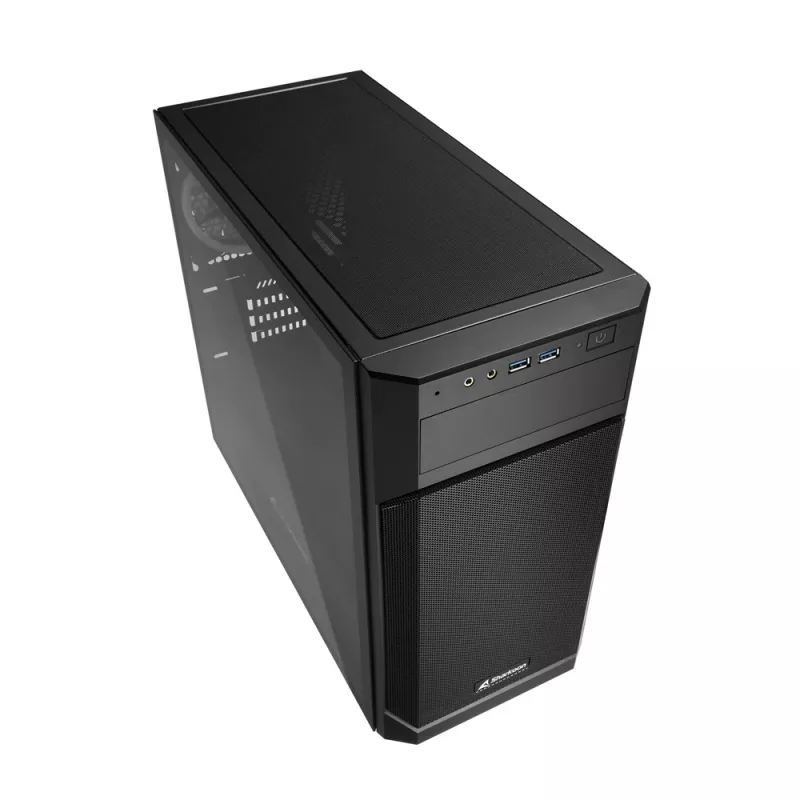

• Front panel ports: 2 × USB 3.2 Gen 1 Type-A

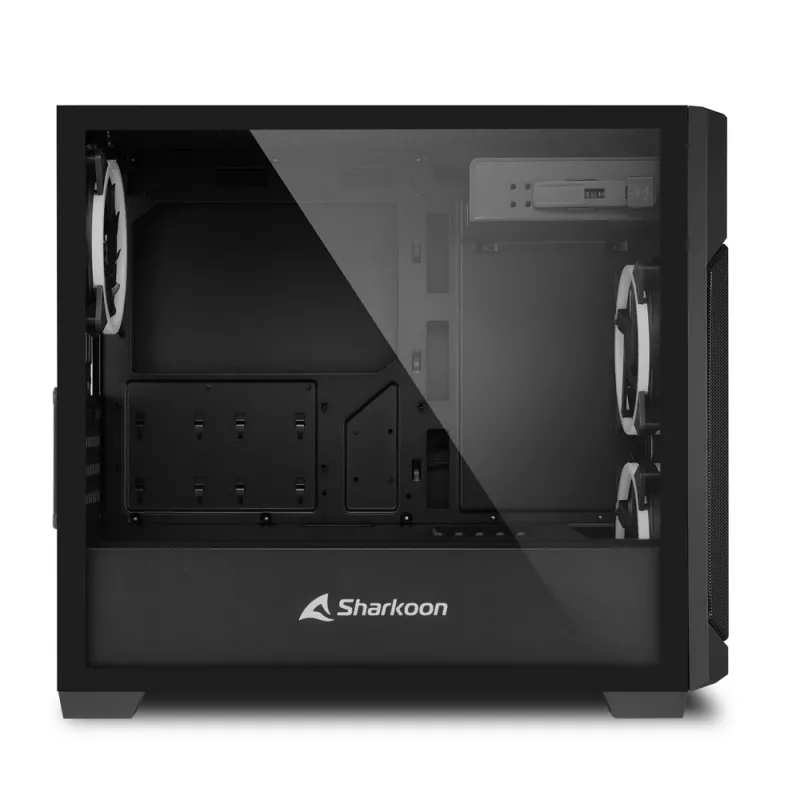

• Side panel: Tempered glass
• Dimensions (W×D×H): 200 × 450 × 402 mm
• Weight: 5.85 kg
• Colour: Black

How to use

Install a compatible Micro ATX or Mini-ITX motherboard and mount storage drives in the removable front mount, the HDD/SSD cage inside the tunnel or on the mounts behind the motherboard tray. Fit a power supply up to 240 mm in the bottom tunnel and route cables through the pass-throughs behind the motherboard tray to keep the interior tidy. Connect the pre-installed RGB fans to a 5V addressable RGB header on the motherboard (5V-D-G or 5V-D-coded-G) for synchronized lighting, or use the fans without RGB control.

Recommendations

For optimal airflow and noise balance, keep dust filters cleaned regularly and consider installing additional top fans if you plan to run high-performance GPUs or heavy workloads. When using addressable RGB, check your motherboard manual for the correct 5V header pinout before connecting.
