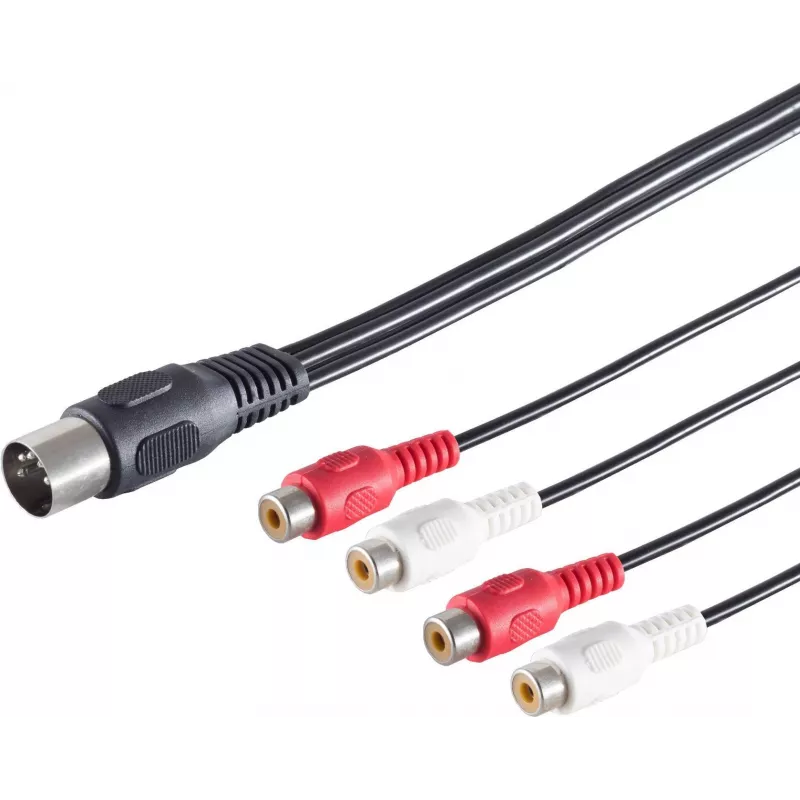

ShiverPeaks diodenstekker 10231 5-polig naar 4 cinch kabeladapter, 0,20 m

The ShiverPeaks Diodenstecker 10231 5-pin to 4 RCA cable adapter, 0.20 m provides a compact wiring solution to convert a single 5-pin output into four RCA (Chinch) connectors. This short cable is intended for direct, space-saving connections between devices that use a 5-pin diodenstecker style connector and equipment with standard RCA inputs, enabling straightforward audio or signal routing where a multi-RCA interface is required.

Advantages

The adapter offers a compact 0.20 m lead that minimizes cable clutter and signal path length. It provides four separate RCA channels from one 5-pin source, allowing simultaneous connection of multiple inputs or outputs without additional splitters. The fixed cable assembly simplifies installation and reduces the need for extra adapters in compact AV racks or equipment setups.

Suitable for

• Connecting a 5-pin diodenstecker output to RCA inputs on amplifiers or mixers
• Routing audio or low-frequency signals from specialized devices to consumer AV equipment
• Short, neat interconnections in compact installations or test benches
• Converting multi-channel outputs for recording or monitoring with RCA-equipped devices

Key specifications

• Connector 1: 5-pin diodenstecker style plug
• Connector 2: Four RCA (Chinch) female plugs
• Cable length: 0.20 m (approx. 20 cm)
• Number of channels: 4 separate RCA channels
• Use: Analog signal transfer for audio/video or low-frequency signals

How to use

Insert the 5-pin plug into the matching 5-pin output on your source device, making sure the connector is fully seated. Connect the four RCA plugs to the corresponding inputs on your target device, matching colors or channel labels where applicable. Use short, direct routing to maintain signal integrity; avoid tight bends at the connector ends. No additional configuration is required on passive adapters—signal routing is determined by the device wiring and channel assignment.

Recommendations

For reliable connections, verify pin-to-RCA mapping in the source device manual before use. Keep the cable length short as intended to minimize potential signal degradation and electromagnetic interference. Avoid exposing the connectors to moisture and handle the plugs by their housings to prevent stress on the cable joints.
