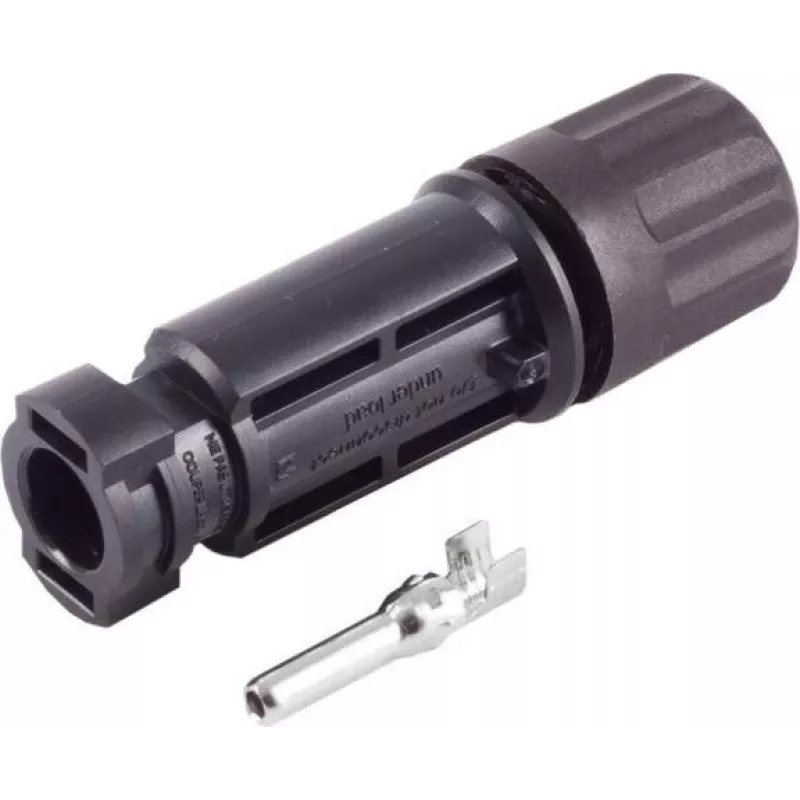

SHIVERPEAKS PV4 solarstekker 2,5-6mm² IP68 1500V DC crimp, 50-pack BS02-20015

Solar installations demand reliable connections that withstand harsh outdoor conditions. The SHIVERPEAKS BS02-20015 PV4 connectors provide a secure, weatherproof link for photovoltaic cables from 2.5 to 6 mm², ensuring minimal power loss and long-term durability in any environment.

Who is it for

Designed for solar installers, PV system integrators, and maintenance technicians who need dependable, high-voltage connectors for residential and commercial solar arrays. Ideal for both new installations and retrofits where MC4-compatible connections are required.

Main features

• Compatible with standard PV4/MC4 connectors for broad interoperability.
• Supports cable cross-sections from 2.5 to 6 mm² (AWG 14-10).
• IP68-rated for complete protection against dust and water immersion.
• Rated for up to 1500 V DC and 30 A current (for 4-6 mm² cable).
• UV-resistant and flame-retardant (UL94-V0) housing for outdoor longevity.
• Crimp connection system ensures a gas-tight, low-resistance joint.
• Snap-in locking mechanism prevents accidental disconnection.
• Operating temperature range from -40°C to +90°C.
• Compliant with TÜV and CE standards for safety and performance.

Specifications

• Connector type: PV4 (MC4 compatible)
• Contact material: Tinned copper
• Insulation material: PPO/PC
• Contact resistance: ≤ 0.5 mΩ
• Safety class: Class II
• Colour: Black
• Pack size: 50 pieces

Tips

Use a proper crimping tool designed for PV connectors to ensure a secure connection. Always verify polarity before mating connectors, and apply a torque of 2.5-3 Nm when tightening the cable gland to maintain the IP68 seal.
