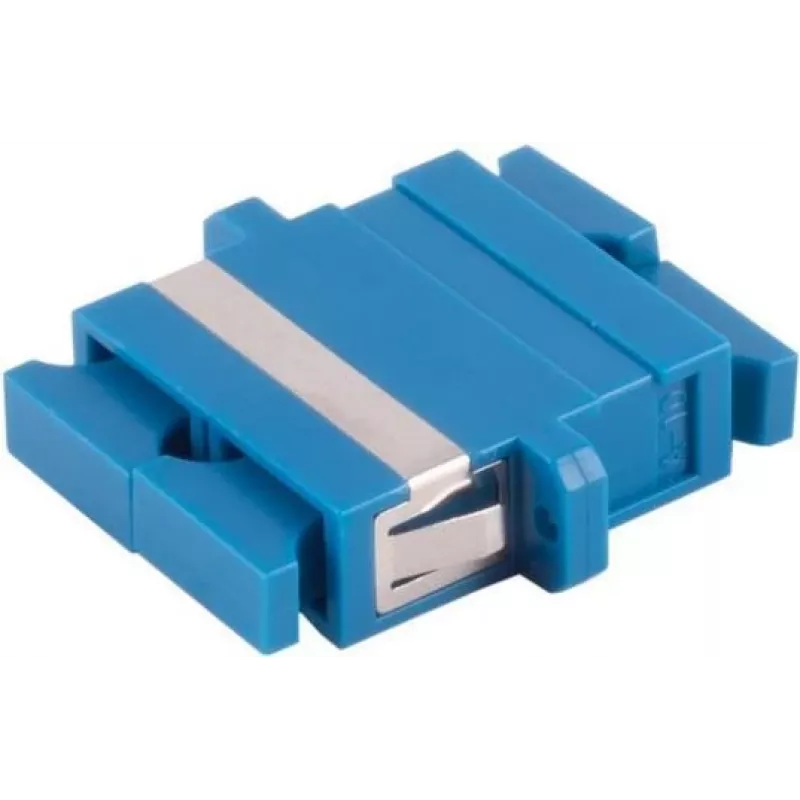

SHIVERPEAKS S/CONN Maximum Connectivity SC-SC duplex multimode glasvezelkoppeling, blauw 07-60060

Fibre optic couplers provide a reliable connection point for joining two SC-terminated multimode cables, and this SHIVERPEAKS duplex unit excels with its precision zirconia ceramic sleeves that ensure low insertion loss and stable optical performance. Ideal for patch panels, wall outlets, and distribution boxes, it supports OM3 and OM4 fibre for high-speed networks.

Advantages

The duplex configuration accommodates two fibres simultaneously, simplifying installation in high-density environments. Zirconia ceramic sleeves offer superior alignment and durability, with a mating durability of over 500 cycles. The blue housing is colour-coded for multimode applications, making identification quick and error-free. Low insertion loss (<0.2 dB) and high return loss (>30 dB) maintain signal integrity across the link.

Suitable for

• Fibre optic patch panels in data centres and enterprise networks
• Wall outlets in office buildings and residential installations
• Distribution boxes for FTTH and LAN backbone connections
• High-speed multimode links using OM3 or OM4 fibre

Key specifications

• Connector type: SC-SC duplex
• Fibre mode: Multimode (OM3, OM4 compatible)
• Sleeve material: Zirconia ceramic
• Insertion loss: < 0.2 dB typical
• Return loss: > 30 dB typical
• Mating durability: > 500 cycles
• Operating temperature: -20°C to +70°C
• Mounting type: Flange mount
• Compliance: IEC 61754-4, TIA/EIA-604-3

Recommendations

For reliable multimode fibre connections, pair this coupler with high-quality SC-terminated patch cables and ensure proper cleaning of connector end faces before mating. Use in controlled environments to maximise performance and longevity.
