Shuttle WWN03 - LTE/4G-uitbreidingsset voor DS/DH slanke pc-serie

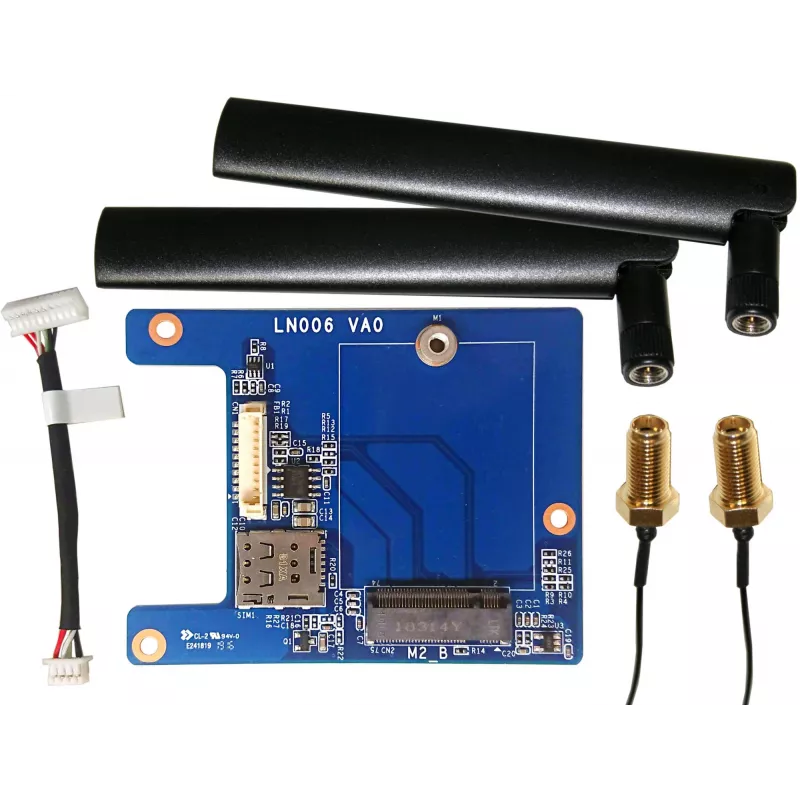

The Shuttle XPC accessory WWN03 adds LTE/4G capability to compatible Shuttle DS/DH slim systems by providing an M.2-3042 slot for a cellular modem. When installed in a Shuttle XPC slim Barebone DS10U (and other supported DS/DH Slim models), the LTE card uses the 2.5" drive bay, so mass storage should be provided by an M.2 SSD. The LTE/4G card and an activated Nano SIM are not included.

Advantages

The LTE/4G expansion kit enables mobile network access without replacing the system motherboard and preserves the existing WLAN functionality. It is compact, fits Shuttle slim barebones that support the M.2-3042 form factor, and allows flexible placement of storage by using an M.2 SSD instead of a 2.5" drive.

Suitable for (tasks / use cases)

• Adding mobile internet connectivity to Shuttle XPC slim systems
• Remote or mobile deployments where wired Ethernet is unavailable
• Industrial, kiosk, POS, or digital signage applications requiring cellular backup or primary connection

Key specifications

• Compatibility: Shuttle DS/DH Slim series (including DS20U(V2), DS20U3(V2), DS20U5(V2), DS20U7(V2), DH32U, DH32U5, DH410, DH410S, DH470, DH610, DH610S, and DS10U)
• Form factor: M.2-3042 slot for LTE/4G card
• Occupies: 2.5" drive bay when installed
• Included items: expansion kit only; LTE/4G card and Nano SIM not included
• Manufacturer: SHUTTLE, MPN: POE-WWN03, EAN: 0887993800318

How to use

Install the WWN03 expansion kit into the dedicated M.2-3042 connector of the compatible Shuttle slim barebone following the system manual. Insert a compatible LTE/4G M.2-3042 modem into the kit and secure it according to the installation instructions. Place an M.2 SSD in the system for mass storage, since the LTE card occupies the 2.5" bay. Insert an activated Nano SIM into the installed modem and configure network settings in the operating system or modem management utility.

Recommendations

Use only compatible M.2-3042 LTE/4G modules and an activated Nano SIM from your mobile operator. Verify antenna connections and driver support for your operating system. Keep a backup of important data before modifying drives, and follow Shuttle's installation instructions to avoid voiding warranty.
