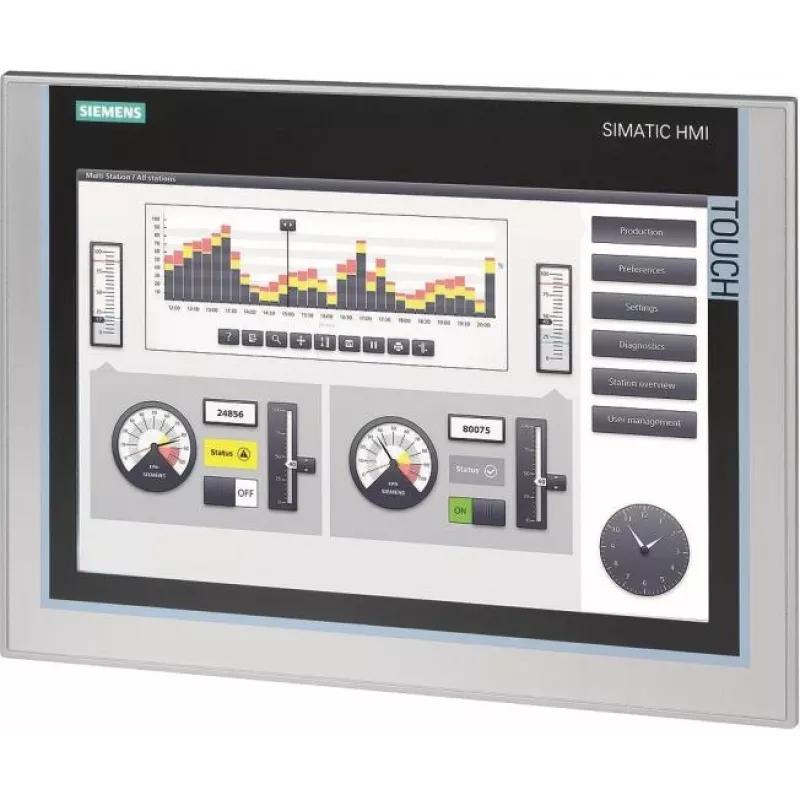

Siemens 6AV2124-0MC01-0AX0 TFT-paneel TP1200 12 inch HMI

The Siemens 6AV2124-0MC01-0AX0 is a high-performance TFT-Panel TP1200 HMI with a 12-inch widescreen display. Designed for industrial automation, it offers intuitive operation via keypad and resistive touch. With PROFINET and MPI/PROFIBUS DP interfaces, it integrates seamlessly into Siemens TIA Portal environments.

Advantages

Robust IP65 front protection, long 50,000-hour backlight lifetime, and flexible portrait/landscape mounting make this panel ideal for demanding factory floor applications.

Suitable for

• Industrial machine control and monitoring
• Process automation with Siemens PLCs
• HMI applications requiring high reliability and connectivity

Key specifications

• Display: 12-inch TFT widescreen, 1280x800 pixels, 65536 colors
• Operation: Key and resistive touch
• Interfaces: PROFINET (Ethernet), MPI/PROFIBUS DP (RS485)
• Supply voltage: 24 V DC
• User memory: 10 MB
• Software: TIA Portal WinCC Basic V13 SP1 or higher
• Protection: IP65 front, IP20 rear
• Cut-out: 310 x 198 mm
• Operating temperature: 0 to 50 °C

Recommendations

For optimal performance, use with Siemens S7-1200/S7-1500 controllers and TIA Portal engineering software.
