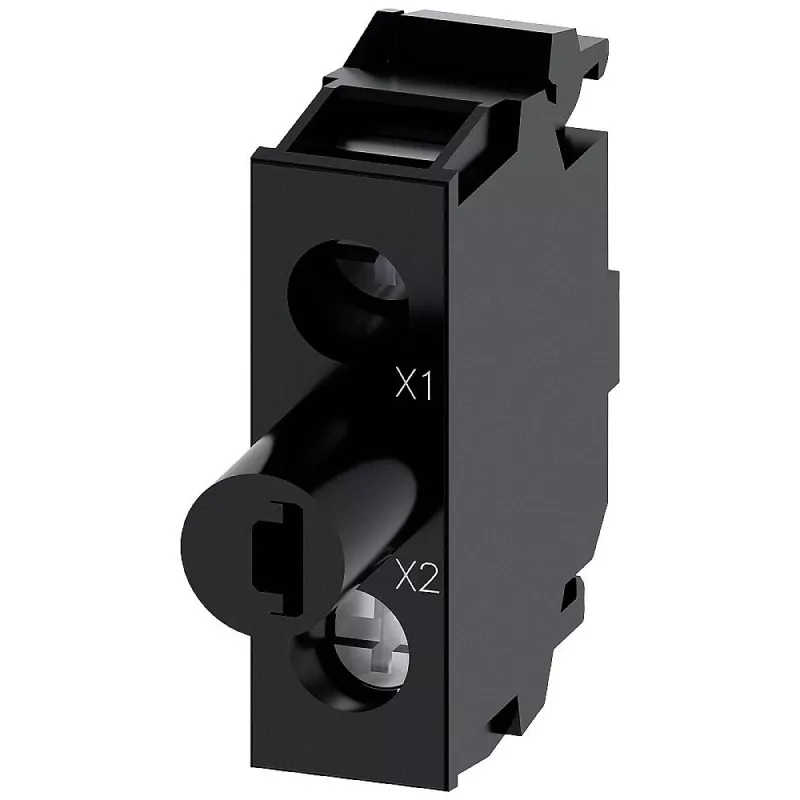

SIEMENS LED-module met geïntegreerde LED, rood, 24 V AC/DC, schroefklem, SIRIUS ACT 3SU14012BB201AA0

This LED module stands out by integrating the LED directly into the unit, eliminating the need for a separate bulb and simplifying assembly in control panels. Its red illumination provides clear status indication for industrial applications.

Highlights

• Integrated red LED for reliable status signaling
• Operates on 24 V AC/DC, suitable for standard control circuits
• Screw terminal connection ensures secure wiring
• Designed for Siemens SIRIUS ACT series, ensuring compatibility
• Long lifespan of 100,000 hours reduces maintenance

In daily use

Install this module in pushbuttons or indicator lights within the SIRIUS ACT range. The screw terminals allow quick and secure connection, and the LED's low current consumption of 15 mA minimizes load on the control circuit. With an operating temperature range from -25 to +70 °C, it performs reliably in harsh environments.

Full specifications

• Module type: LED module
• LED colour: Red
• Operating voltage: 24 V AC/DC
• Current consumption: 15 mA
• Connection type: Screw terminal
• Compatibility: Siemens SIRIUS ACT series
• Lifespan (LED): 100,000 hours
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Degree of protection (terminals): IP20
• Rated insulation voltage: 320 V
• Standards compliance: IEC 60947-5-1, EN 60947-5-1, UL 508, CSA C22.2 No. 14

Final note

For applications requiring clear red indication with minimal wiring effort, this module offers a compact and durable solution.
