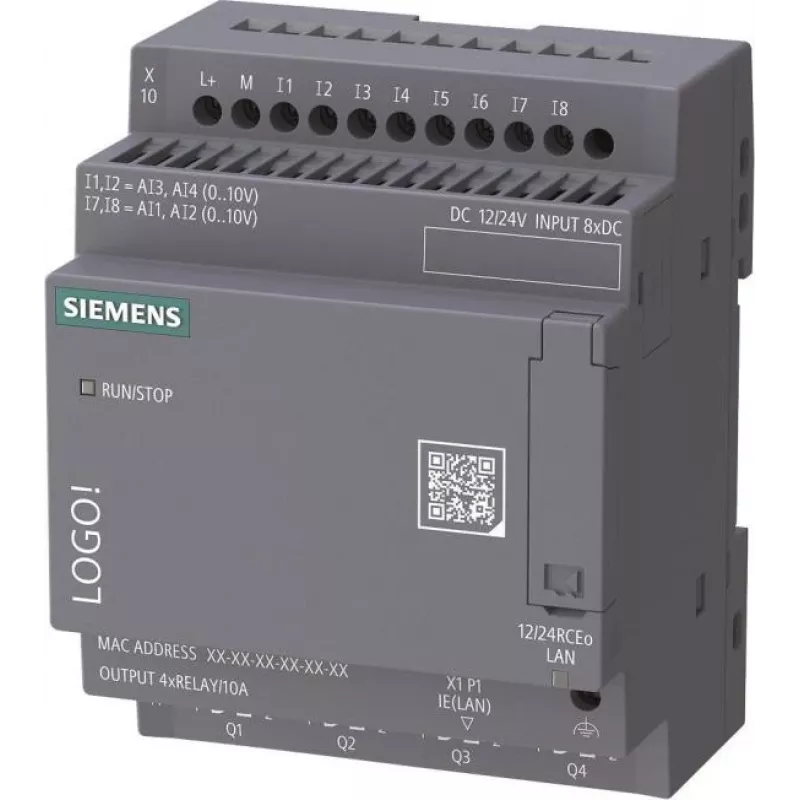

Siemens LOGO! 12/24 RCEo logicamodule 6ED1052-2MD08-0BA3

The Siemens LOGO! 12/24 RCEo is a compact logic module from the LOGO! 8.3 series, designed for basic automation tasks. It operates on 12/24V DC and features 8 digital inputs (4 configurable as analog), 4 relay outputs, and an Ethernet interface for communication. This base module does not include a display, making it ideal for cost-sensitive applications where remote monitoring is sufficient.

Advantages

Flexible input configuration allows adaptation to various sensor types. Integrated web server and cloud connectivity enable remote access and data logging. Expandable up to 24 DI, 20 DO, 8 AI, and 8 AO via expansion modules. Real-time clock with automatic daylight saving adjustment ensures accurate time-stamping.

Suitable for

• Small-scale automation in building services (lighting, HVAC, shading)
• Machine control in industrial environments
• Educational and training setups for PLC programming

Key specifications

• Supply voltage: 12/24V DC
• Digital inputs: 8 (4 configurable as analog)
• Analog inputs: 4 (shared with DI)
• Relay outputs: 4
• Display: No
• Communication: Ethernet (RJ45)
• Integrated web server: Yes
• Cloud connectivity: Yes
• Data logging: Yes
• Memory card: Standard microSD
• Real-time clock: Yes
• Expandability: Yes (up to 24 DI, 20 DO, 8 AI, 8 AO)
• Programming software: LOGO! Soft Comfort V8.3 or higher
• Mounting: DIN rail (35 mm)
• Protection class: IP20
• Operating temperature: -20 to +55 °C
• Program memory: 400 blocks

Recommendations

For applications requiring a local display, consider the LOGO! 12/24 RCEO with display. Use LOGO! Soft Comfort V8.3 or higher for programming. Expansion modules (e.g., digital/analog I/O, communication) are available separately.
