Siemens SENTRON 5SV6016-7GV16 AFDD/MCB 6kA C16 1P+N 1TE (12-pack)

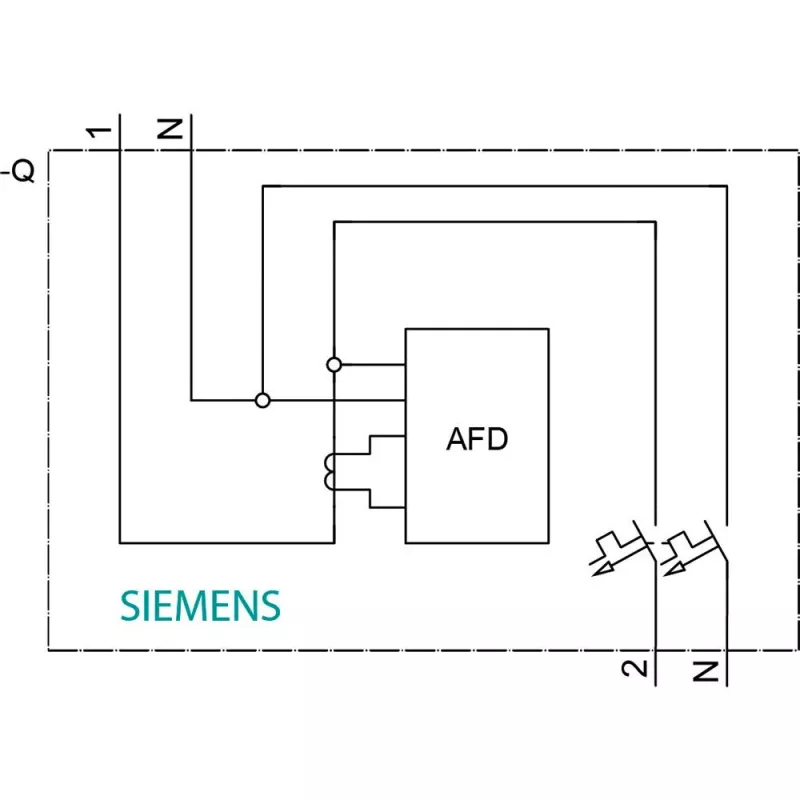

In residential and commercial electrical installations, the Siemens 5SV6016-7GV16 combines arc fault detection with miniature circuit breaker protection in a single 1TE module. It protects final circuits against arc faults, overload, and short circuit, reducing fire risk in bedrooms, living areas, and offices.

Key specifications

• Rated current: 16 A
• Tripping characteristic: C
• Rated breaking capacity: 6 kA
• Number of poles: 1P+N
• Module width: 1 TE
• Rated voltage: 230 V AC
• Frequency: 50/60 Hz
• Mounting: DIN rail
• Degree of protection: IP20
• Operating temperature: -25 to +55 °C
• Standards: IEC 60898-1, IEC 62606
• Packaging quantity: 12 units

Why choose it

This device integrates AFDD and MCB functions, saving space and simplifying installation. The C-curve characteristic suits general power circuits, and the 6 kA breaking capacity handles typical residential and commercial fault levels.

Ideal use cases

• Protection of socket outlet circuits in bedrooms and living rooms
• Fire prevention in buildings with high fire loads
• Upgrading existing installations to meet arc fault protection requirements

Good to know

Supplied in bulk packaging of 12 units, ideal for projects. Screw terminals ensure reliable wiring. The device is part of the SENTRON portfolio for electrical safety.
