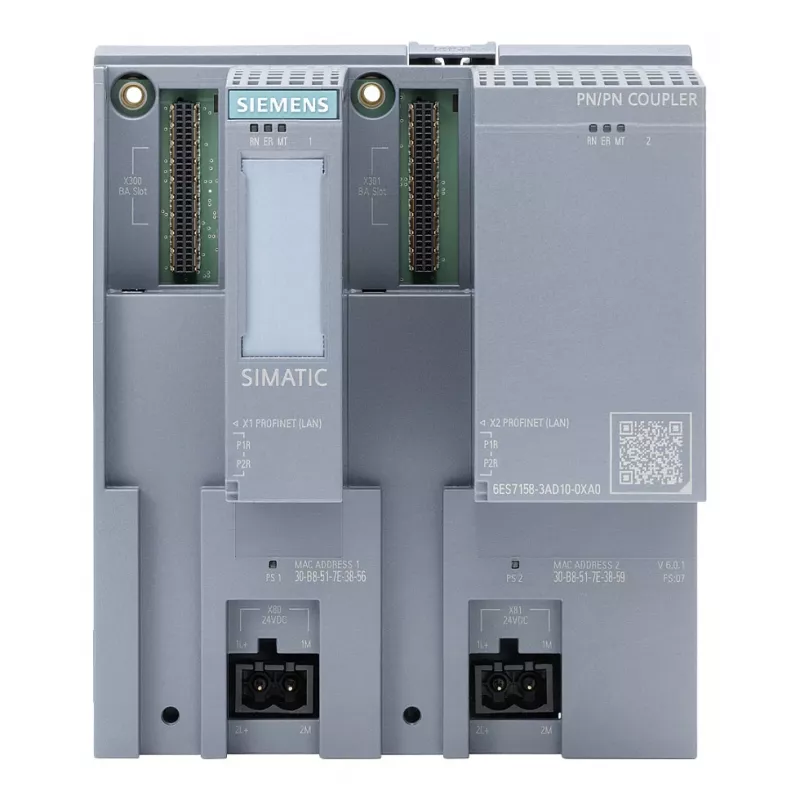

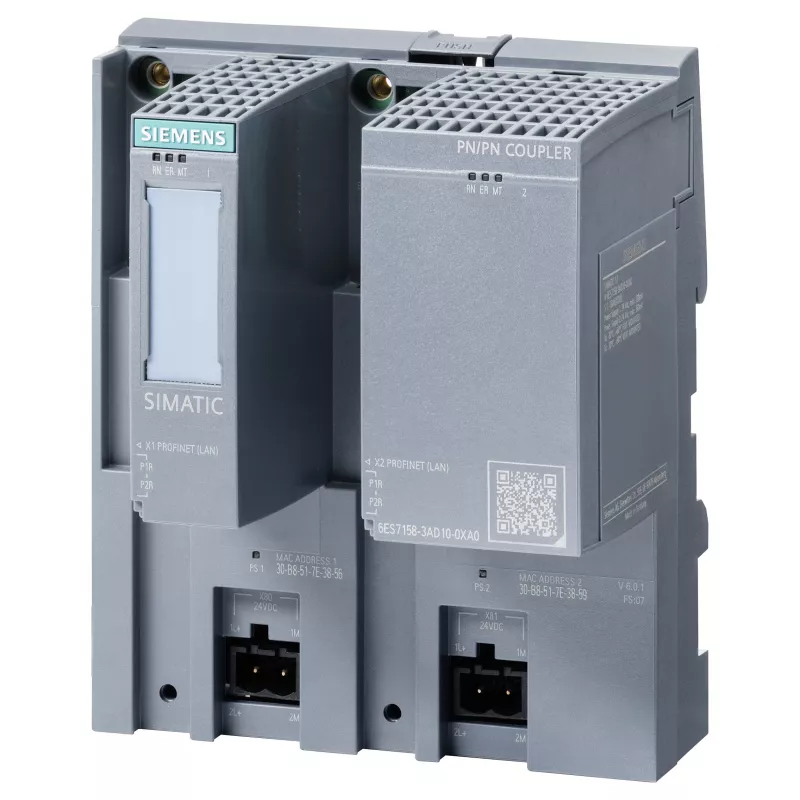

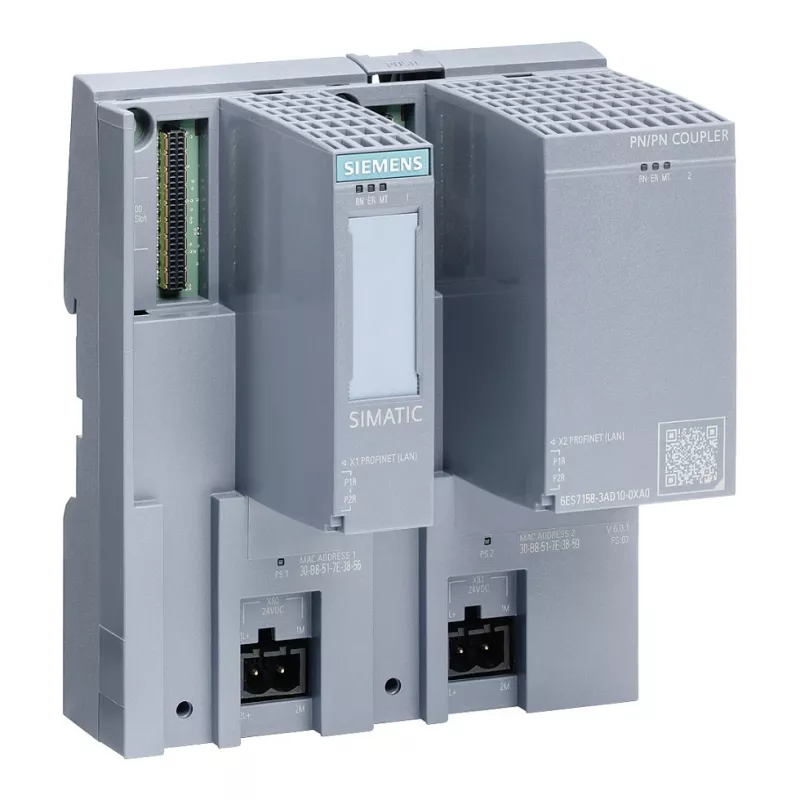

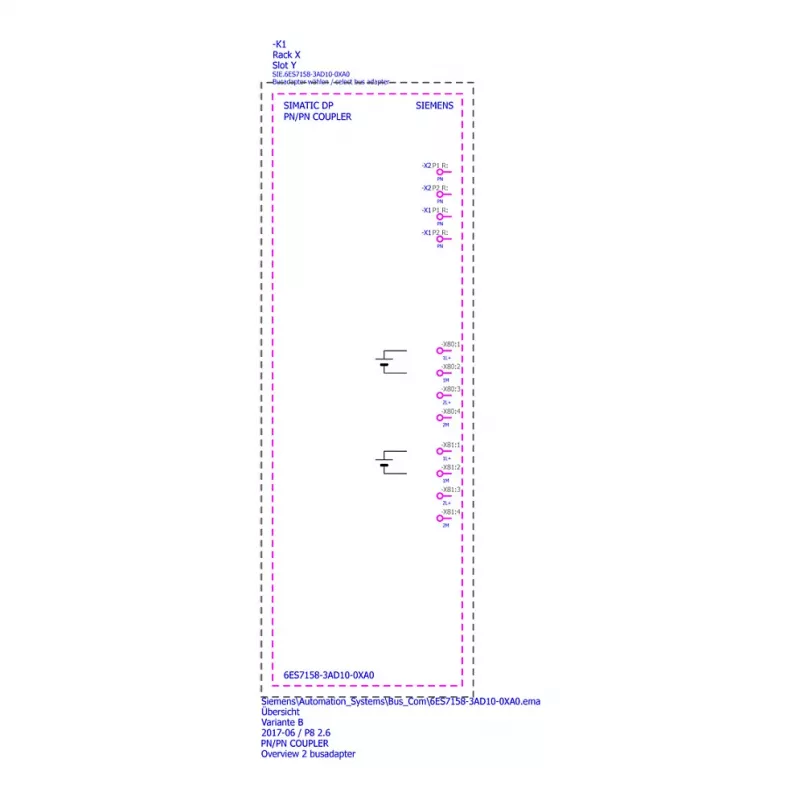

SIEMENS SIMATIC PN/PN Coupler 6ES7158-3AD10-0XA0 | PROFINET IO-koppelaar voor netwerkkoppeling

Linking two independent PROFINET IO networks often requires complex gateways and time-consuming configuration. The SIEMENS SIMATIC PN/PN Coupler 6ES7158-3AD10-0XA0 eliminates this hurdle by acting as a transparent bridge, enabling seamless data exchange between two separate PROFINET IO systems without additional programming.

Who is it for

This coupler is ideal for automation engineers, system integrators, and maintenance professionals working in Siemens SIMATIC environments. It is particularly useful in distributed manufacturing lines, process control systems, or any application where two separate PROFINET networks must exchange data, such as linking different plant areas or integrating legacy systems.

Main features

• Connects two PROFINET IO networks, acting as an IO device on both sides
• Two RJ45 Ethernet ports for Fast Ethernet (100 Mbit/s) connectivity
• Supports up to 1024 bytes of input and 1024 bytes of output data per side
• Operates on 24V DC supply, consuming a maximum of 200 mA
• DIN rail mounting for easy installation in control cabinets
• Extensive diagnostics for network and module status monitoring
• Conforms to PROFINET Conformance Class B (CC-B) for standard real-time communication

Specifications

• Product Type: PROFINET IO Coupler
• Number of PROFINET Interfaces: 2
• Interface Type: RJ45 (Ethernet)
• Data Transfer Rate: 100 Mbit/s (Fast Ethernet)
• PROFINET Role: IO Device on both sides
• Max. I/O Data Length (per side): 1024 bytes input, 1024 bytes output
• Supply Voltage: 24V DC
• Current Consumption: Max. 200 mA (at 24V DC)
• Configuration Software: TIA Portal, GSDML file

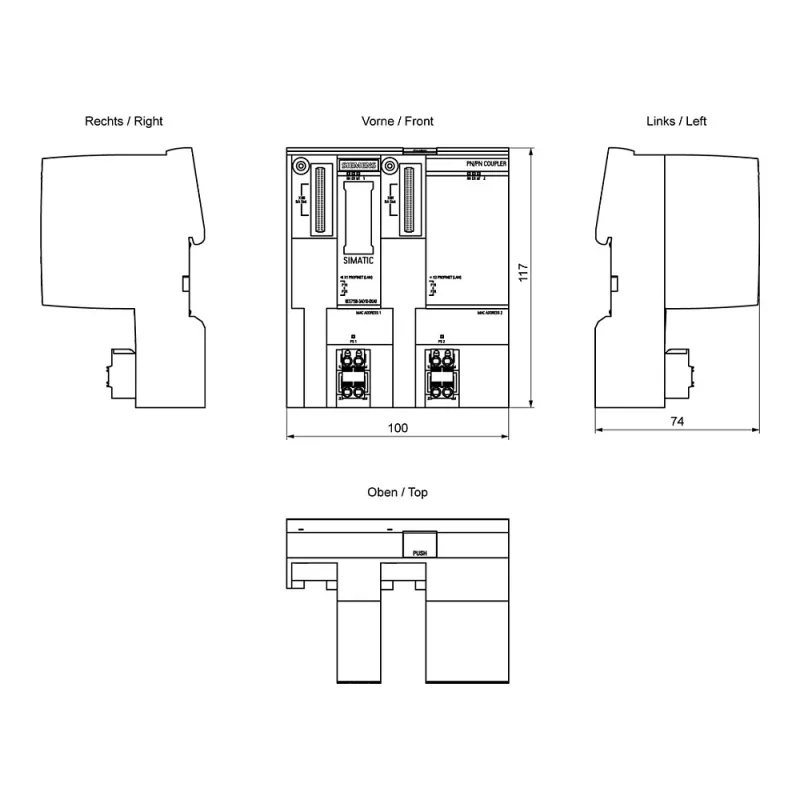

• Mounting Type: DIN rail
• Operating Temperature: 0 to 60 °C
• Storage Temperature: -40 to +70 °C
• Protection Class: IP20
• Electrical Isolation: Yes, between PROFINET interfaces
• Diagnostics: Extensive diagnostics (e.g., network status, module status)
• Firmware Update: Yes, via PROFINET
• Housing Material: Plastic/Metal composite
• PROFINET Conformance Class: Conformance Class B (CC-B)
• Synchronization: Standard Real-Time (RT), not for Isochronous Real-Time (IRT)

Tips

For optimal performance, ensure both PROFINET networks are configured with compatible data lengths and update cycles. Use the GSDML file in TIA Portal for straightforward integration, and take advantage of the built-in diagnostics to quickly identify network issues during commissioning.
