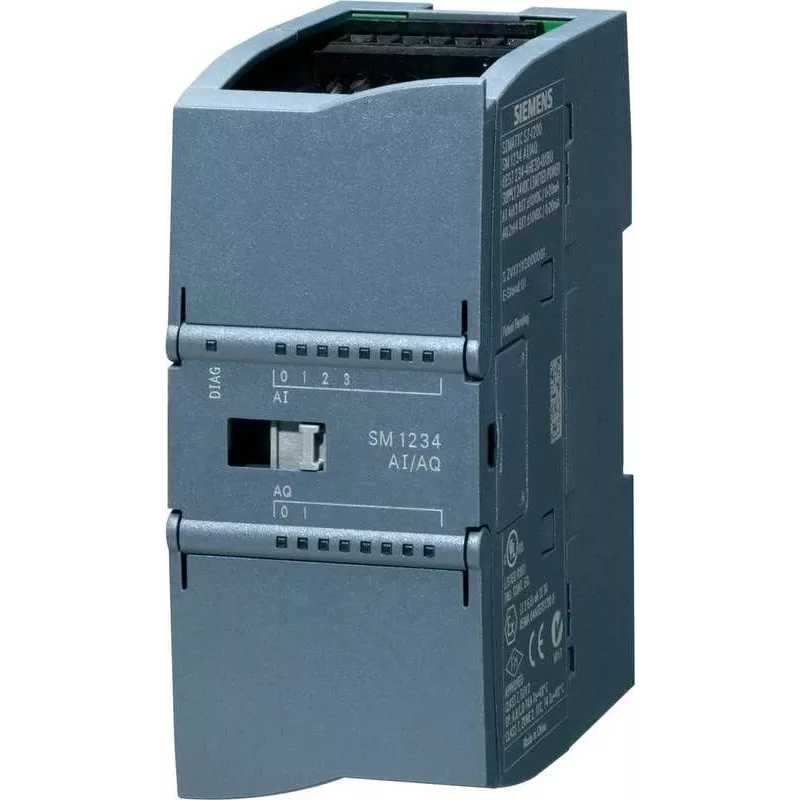

Siemens SIMATIC S7-1200 SM 1234 analoog in-/uitgangsmodule 6ES7234-4HE32-0XB0

Automation engineers integrating mixed signal requirements into SIMATIC S7-1200 systems will find the SM 1234 module an essential building block for compact machine control. This signal module combines four digital inputs, two relay digital outputs, two analog inputs, and one analog output in a single housing, simplifying wiring and reducing panel space. It is ideal for applications such as small-scale process control, packaging machinery, and HVAC systems where both discrete and analog signals must be handled by one controller.

Key specifications

• Digital inputs: 4 x 24V DC, sinking/sourcing
• Digital outputs: 2 x relay, 2A per relay
• Analog inputs: 2, selectable 0-10V, 0-20mA, or 4-20mA
• Analog input resolution: 13 bits + sign
• Analog output: 1, selectable 0-10V, 0-20mA, or 4-20mA
• Analog output resolution: 14 bits + sign
• Power supply: via backplane bus, max 80 mA
• Isolation between channels and backplane bus
• Mounting: DIN rail, operating temperature 0°C to 55°C

Why choose it

The SM 1234 offers a balanced mix of I/O points that reduces the need for multiple separate modules. Its relay outputs can switch higher current loads directly, while the analog channels support common industrial signal ranges. The module's integrated isolation enhances noise immunity, making it reliable in electrically demanding environments. With low power consumption and a compact footprint, it is a cost-effective solution for expanding S7-1200 capabilities.

Ideal use cases

• Small machine control panels requiring both digital and analog I/O
• Process monitoring with sensor inputs (4-20mA transmitters) and actuator control
• Building automation systems with temperature sensors and relay-driven devices
• Retrofit projects where space and wiring simplicity are priorities

Good to know

The module is engineered for seamless integration with SIMATIC S7-1200 CPUs via the backplane bus, requiring no additional power wiring. It is suitable for standard industrial environments with operating temperatures from 0°C to 55°C. For detailed configuration and wiring, refer to the Siemens S7-1200 system manual. The module's relay outputs are rated for 2A, making them suitable for many solenoid valves, contactors, and indicator lamps.
