Siemens SINAMICS G120 CU250S-2 PN besturingseenheid 6SL3244-0BB12-1BA1

Industrial drive systems demand precise control, seamless communication, and uncompromising safety. The Siemens SINAMICS G120 CU250S-2 PN Control Unit (6SL3244-0BB12-1BA1) addresses these needs by providing a high-performance control interface for SINAMICS G120 power modules. Engineered for PROFINET networks, this control unit enables advanced motion control and integrated safety functions, making it ideal for complex automation tasks in manufacturing, material handling, and process industries.

Who is it for

This control unit is built for automation engineers, system integrators, and machine builders who require reliable vector control, flexible I/O configuration, and functional safety in their drive systems. It suits applications ranging from conveyor belts and pumps to sophisticated multi-axis machinery where safety-rated functions are mandatory.

Main features

• PROFINET communication for real-time data exchange and easy integration into industrial networks.
• Integrated Safety Integrated functions including STO, SS1, SBC, SLS, SSM, SDI, SLP, and SP, ensuring compliance with machinery safety standards.
• Supports both V/f and vector control (sensorless and with encoder) for precise speed and torque regulation.

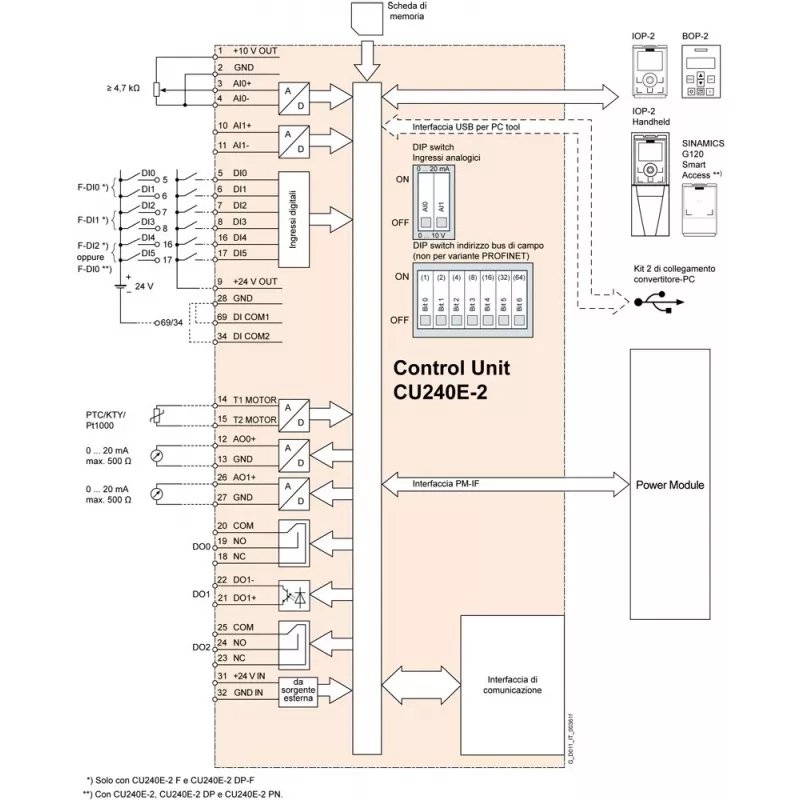

• Six configurable digital inputs, three relay outputs, two analog inputs, and two analog outputs offer versatile connectivity.
• Dual encoder interfaces: one HTL/TTL/SSI and one resolver/incremental, enabling closed-loop control for demanding applications.
• Onboard USB port and SD card slot simplify commissioning, parameter backup, and firmware updates.
• Integrated PID controller for process control tasks such as pressure, flow, or temperature regulation.
• Compact design for wall or cabinet mounting, with IP20 protection suitable for control cabinet environments.

Specifications

• Control unit series: SINAMICS G120
• Model designation: CU250S-2 PN
• Communication protocol: PROFINET (PN)
• Supply voltage: 24 V DC
• Digital inputs: 6 (configurable)
• Digital outputs: 3 (relay, configurable)
• Analog inputs: 2 (configurable)
• Analog outputs: 2 (configurable)
• Encoder interfaces: 1x HTL/TTL/SSI, 1x Resolver/Incremental
• Safety functions: STO, SS1, SBC, SLS, SSM, SDI, SLP, SP
• Control modes: V/f, Vector control (sensorless/encoder)
• Protection class: IP20
• Operating temperature: -10 to +50 °C
• Integrated USB port: Yes (for commissioning)
• Memory card support: SD card
• Compatibility: SINAMICS G120 power modules
• Mounting type: Wall/cabinet mounting
• Integrated PID controller: Yes

Tips

For optimal performance, ensure the control unit is mounted in a clean, dry control cabinet with adequate ventilation. Use the SD card to back up parameters after commissioning to facilitate quick replacement or duplication. When integrating safety functions, refer to the SINAMICS G120 safety manual and perform a thorough risk assessment. The USB port allows direct connection to a PC with STARTER or Startdrive software for intuitive configuration and diagnostics.
