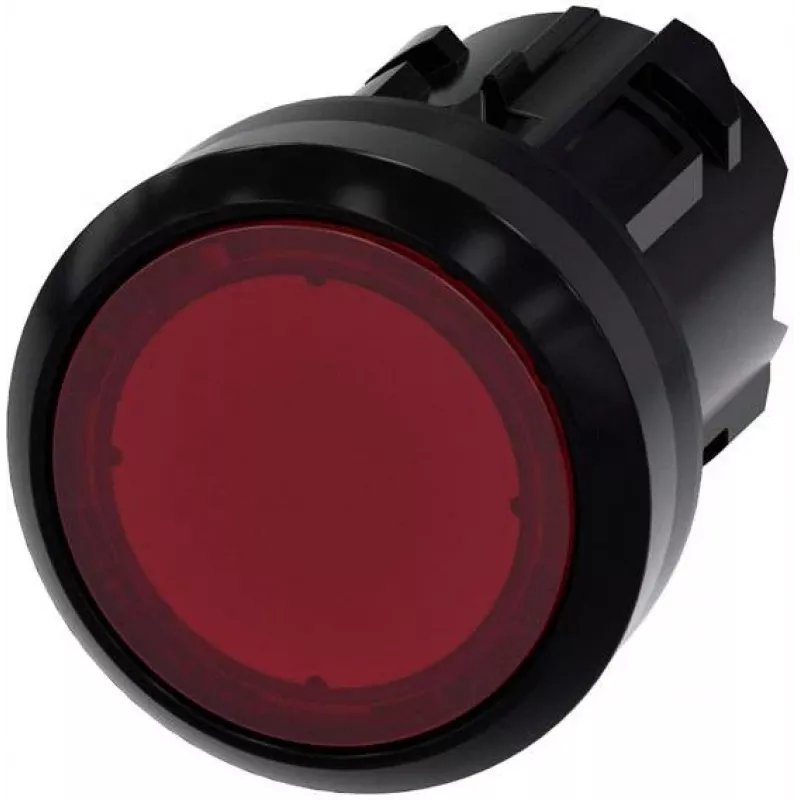

Siemens SIRIUS ACT drukknop-aandrijving 22mm rond rood tastsend 3SU1001-0AD20-0 3SU10010AD200AA0

This Siemens pushbutton actuator stands out with its robust, flush design and vibrant red momentary action, built for reliable control in demanding industrial environments. Unlike generic actuators, it is part of the SIRIUS ACT series, ensuring compatibility with a wide range of contact blocks and front rings.

Highlights

• 22 mm mounting diameter for standard panel cutouts
• Round, flat actuator in red plastic with black front ring
• Momentary (spring-return) operation for precise control
• Unilluminated design, ideal for simple signaling tasks
• High mechanical endurance of 10 million operating cycles

In daily use

The actuator's flush profile reduces accidental activation while maintaining easy access. Its IP66/IP67/IP69K front protection makes it suitable for washdown areas and harsh conditions. Pair it with a compatible contact block (not included) to complete your pushbutton station.

Full specifications

• Series: SIRIUS ACT
• Mounting diameter: 22 mm
• Actuator type: Momentary (spring-return)
• Actuator shape: Round
• Actuator color: Red
• Actuator material: Plastic
• Front ring material: Plastic
• Front ring color: Black
• Illumination: Unilluminated
• Design: Flat / Flush
• Degree of protection (front): IP66, IP67, IP69K
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Mechanical endurance: 10,000,000 operating cycles
• Connection type: For contact blocks (not included)

Final note

Engineered for reliability, this actuator is a core component of modern control systems, offering long service life and consistent performance.
