SIEMENS SIRIUS ACT LED-module met geïntegreerde LED, 24V AC/DC, geel (3SU14012BB301AA0)

This LED module integrates a yellow LED for clear status indication in SIRIUS ACT control units, operating at 24V AC/DC with a service life of 100,000 hours.

Overview

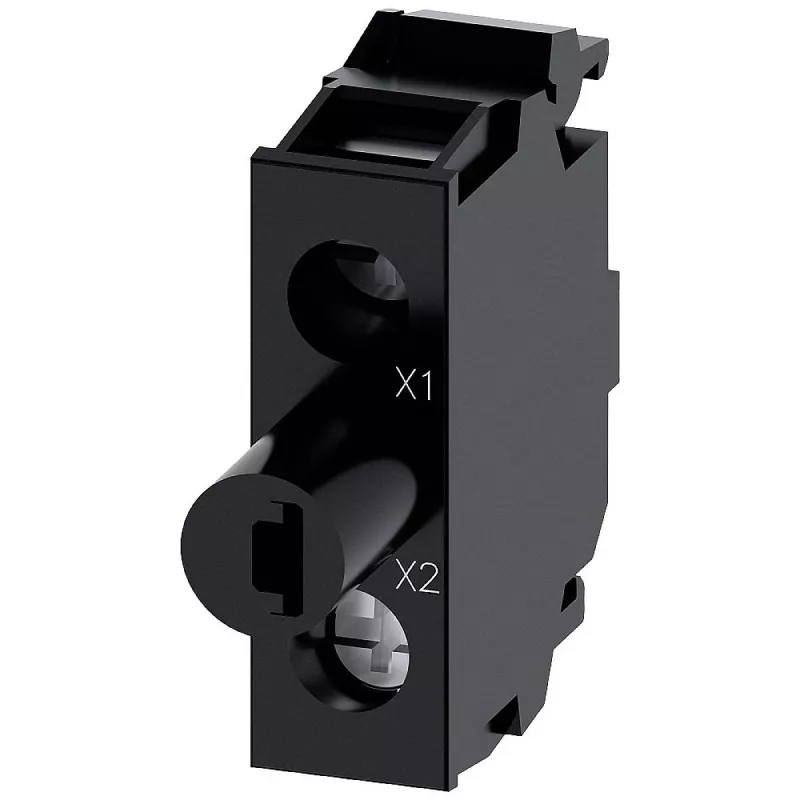

The SIEMENS LED module 3SU14012BB301AA0 is a component of the SIRIUS ACT series, designed for floor mounting in control units. It features an integrated yellow LED, screw terminal connection, and continuous illumination.

What stands out

• Integrated yellow LED for immediate visual feedback
• Wide operating voltage range: 24V AC/DC
• Long electrical service life of 100,000 hours
• Reliable screw terminal connection
• Compact plastic housing for industrial environments

Technical details

• Product Type: LED Module
• Series: SIRIUS ACT
• Light Source: Integrated LED
• Operating Voltage: 24V AC/DC
• Light Color: Yellow
• Connection Type: Screw Terminal
• Mounting Method: Floor mounting (for control units)
• Compatibility: Siemens SIRIUS ACT Control Units
• Type of Voltage: AC/DC
• Current Consumption: Approx. 15 mA (at 24V)
• Electrical Service Life: 100,000 hours
• Operating Temperature Range: -25 to +70 °C
• Storage Temperature Range: -40 to +80 °C
• Degree of Protection (Rear): IP20
• Material: Plastic
• Standards Compliance: IEC 60947-5-1, EN 60947-5-1
• Approvals: CE, UL, CSA, CCC, EAC
• Illumination Type: Continuous light

Our verdict

A durable and reliable LED module for SIRIUS ACT control units, offering long service life and clear yellow indication.
