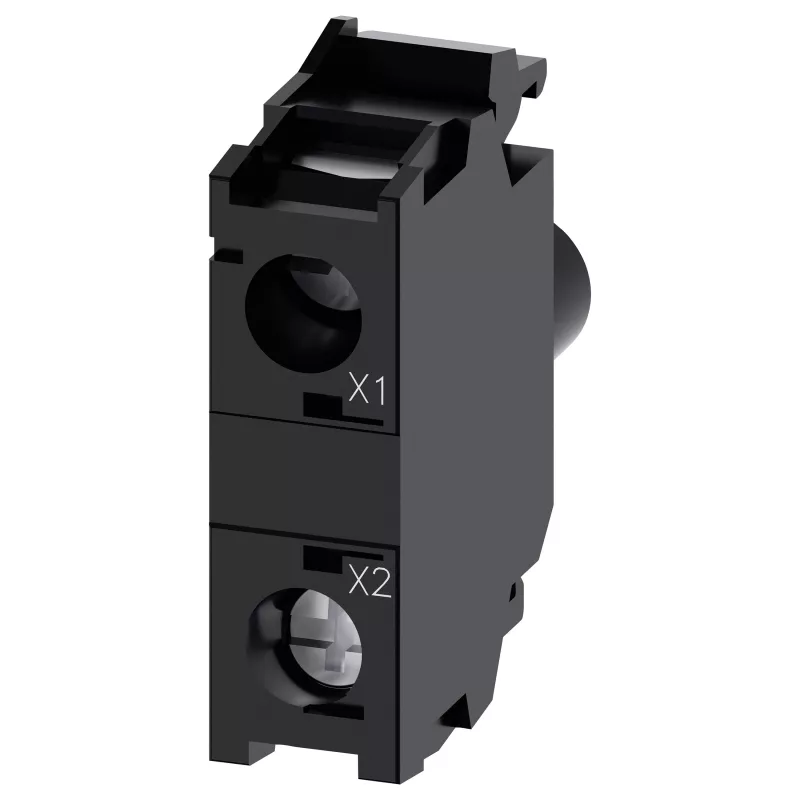

Siemens SIRIUS ACT LED-module met geïntegreerde LED AC/DC 24V wit

The Siemens SIRIUS ACT LED Module with integrated LED is a high-quality, durable indicator light designed for industrial control applications. Operating at 24V AC/DC, this white LED module provides clear visual status indication with a long service life of over 100,000 hours. It is part of the SIRIUS ACT series, ensuring compatibility with a wide range of control devices.

Advantages

Integrated LED for easy installation and maintenance; screw terminal connection for secure wiring; robust plastic construction with IP20 protection; low power consumption of approximately 0.3 W; wide operating temperature range from -25 to +70 °C.

Suitable for

• Industrial control panels
• Machine building
• Automation systems
• Status indication in manufacturing environments

Key specifications

• Product Type: LED Module
• Light Color: White
• Operating Voltage: 24V AC/DC
• Current Consumption: Approx. 15 mA
• Connection Type: Screw Terminal
• Series: SIRIUS ACT
• Light Source Type: LED
• Service Life: > 100,000 hours
• Ambient Operating Temperature: -25 to +70 °C
• Number of LEDs: 1
• Wire Cross-section (solid): 0.5 ... 1.5 mm²
• Wire Cross-section (flexible with ferrule): 0.5 ... 1.5 mm²
• Power Loss: Approx. 0.3 W
• Mounting Type: Clip-on (into holder)
• Degree of Protection (terminals): IP20
• Material: Plastic
• Standards Compliance: IEC 60947-5-1, UL, CSA, CE

Recommendations

For optimal performance, use with Siemens SIRIUS ACT control devices and ensure proper wiring according to the specified cross-sections. This module is ideal for applications requiring reliable and long-lasting visual indication.
