Sjabloon Bosch Bosch kopieerhulzen 2609200142

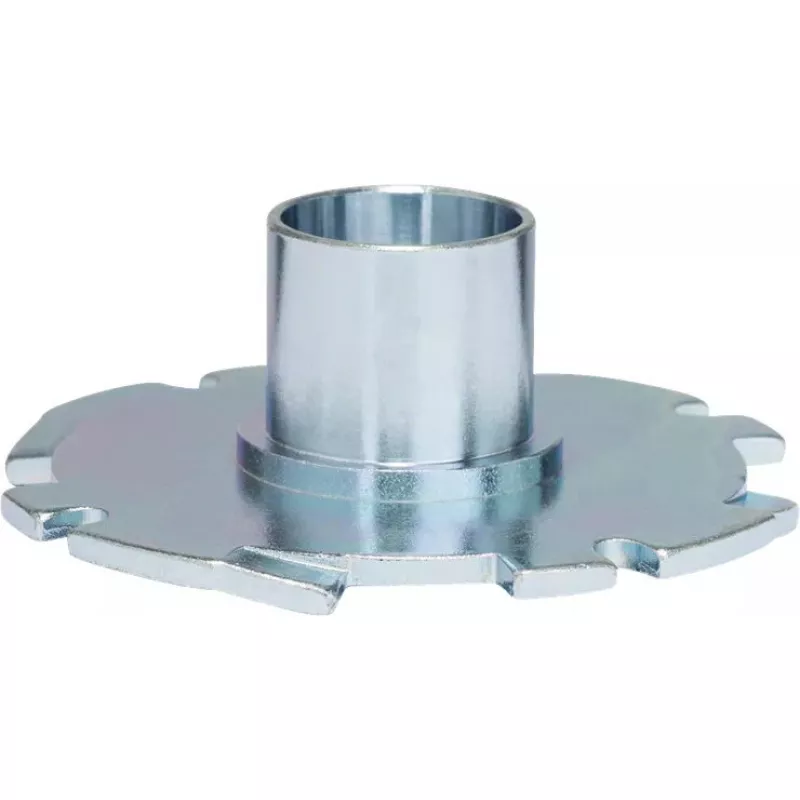

The Blade Bosch Template Guides 2609200142 are precision template guides (blades) designed for use with routers when transferring shapes onto a workpiece. Intended for metal cutting, these template guides are compatible with Bosch tools and have a width and depth of 30 mm to support accurate and repeatable cuts. When used with a router and template guide system they help maintain consistent spacing between the template edge and the cut line.

Advantages

The Bosch template guides provide precise guidance for router bits during shape transfer, reducing user guesswork and improving cut quality. Their 30 mm width and depth offer stable contact with the template, and compatibility with Bosch equipment ensures reliable fit and long-term use in both professional and DIY settings.

Suitable for

Key specifications

How to use

Mount the template guide to the router according to the router manufacturer's instructions and ensure secure fastening. Position the template on the workpiece and account for the offset between the guide and the router bit when preparing the template. Calculate the required template offset using the formula: (diameter of template guide (K) – diameter of router bit (F)) / 2. Run the router steadily along the template edge while maintaining firm control to achieve an accurate transfer of the shape.

Recommendations

Verify compatibility with your specific Bosch router model before use, select a router bit suitable for metal cutting, and wear appropriate personal protective equipment. When preparing templates, always include the offset calculated by the supplied formula to ensure the finished dimensions match the intended shape.
