SkyRC T100 batterijlader AC, 5A laadstroom

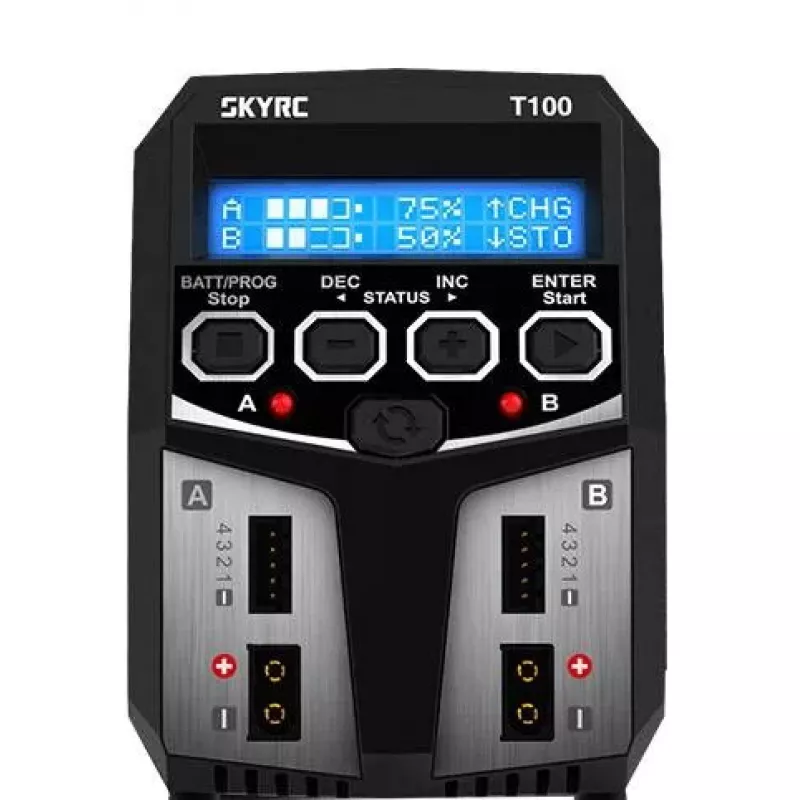

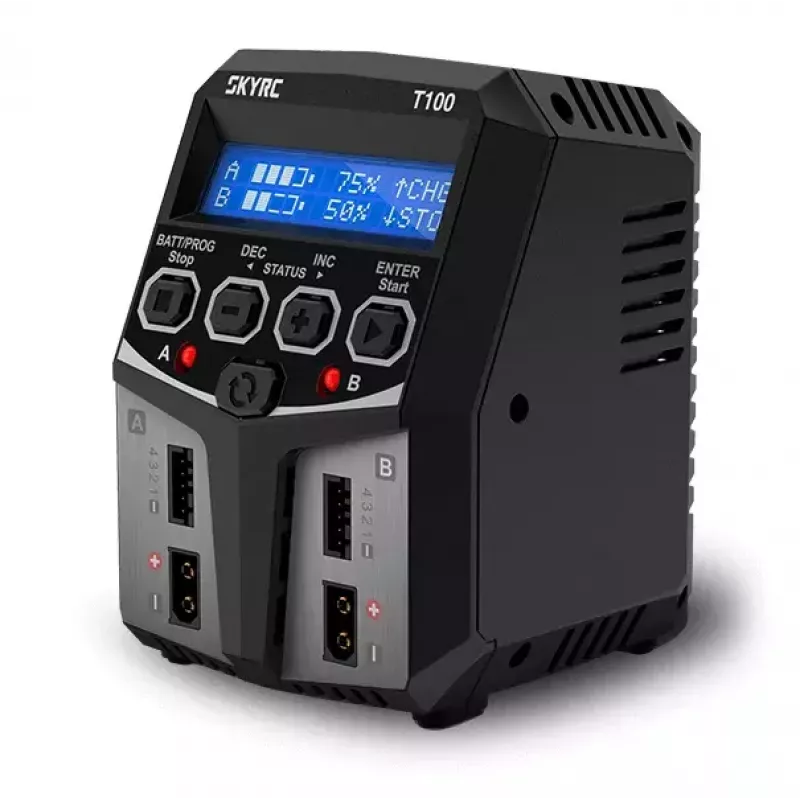

SkyRC T100 is a twin-channel AC battery charger designed to charge a wide range of battery chemistries including LiPo, LiFe, LiIon, LiHV, NiMH, NiCd and Pb. The charger features two independent circuits that allow simultaneous charging of two batteries with different configurations. Its front-loading design provides convenient access to balance ports and an embedded XT60 connector. The unit delivers up to 100W total charging power and up to 5A charging current per channel, supports AGM and cold-charge modes for lead‑acid (PB) batteries, and meets CE/FCC safety and EMC requirements.

Advantages

The SkyRC T100 offers dual independent charging channels so two batteries can be charged at the same time even if they have different chemistries or cell counts. An embedded XT60 connector reduces the risk of reverse polarity and simplifies connection for popular battery packs. Compact dimensions and a clear LCD make the charger suitable for bench or portable use, while certified safety compliance ensures regulated operation across 100–240V AC input.

Suitable for (tasks / use cases)

• Charging LiPo, LiFe, Li‑Ion and LiHV model batteries
• Charging NiMH and NiCd battery packs
• Charging lead‑acid (Pb) and AGM batteries, including cold‑temperature charging
• Charging two different batteries simultaneously (mixed chemistries allowed)

Key specifications

• Input voltage: 100–240 V AC
• Maximum charging power: 100 W
• Maximum charging current: 5 A
• Supported chemistries: LiPo / LiFe / LiIon / LiHV / NiMH / NiCd / Pb (AGM)
• Embedded XT60 connector and balance ports
• Dimensions: 90 × 100 × 127 mm
• Weight: 0.5 kg
• Certifications: CE, FCC

How to use

Connect the charger to a suitable AC mains supply (100–240 V). Insert the battery balance plug into the appropriate balance port and connect the battery to the embedded XT60 connector or the corresponding output leads. Select the correct battery chemistry and cell count on the charger display, set the desired charge current (up to 5 A) and start the charging process. The two channels operate independently, so repeat connection and configuration for a second battery if required. Monitor the LCD for charge status and follow on‑screen prompts until charging completes.

Recommendations

Always verify battery chemistry, cell count and polarity before starting. Use AGM or cold‑charge modes when charging lead‑acid batteries at low temperatures. Charge in a well‑ventilated area and never leave batteries unattended for extended periods. Follow manufacturer battery care instructions and the charger’s on‑screen guidance to ensure safe operation.
