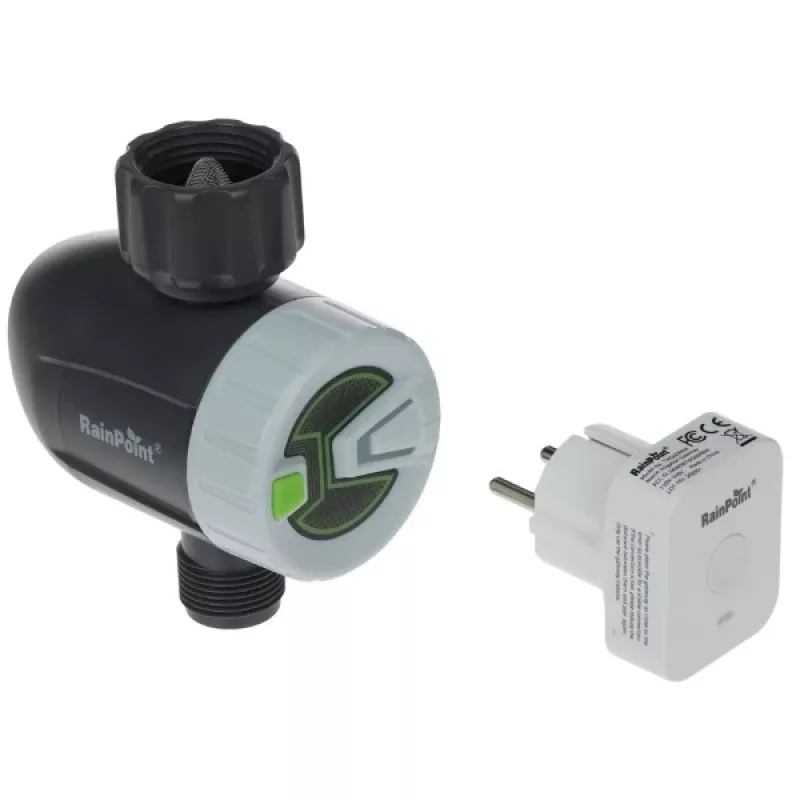

Slimme beregeningsklep met WiFi TTV102B+TWG009BW

Upgrade your garden watering with the Smart Irrigation Valve with WiFi TTV102B+TWG009BW. This complete kit combines a Zigbee 3.0 valve and a Wi-Fi gateway, enabling remote control and scheduling via the Tuya Smart or Smart Life app. Designed for easy installation on standard taps, it supports both timed and cyclic watering programs, helping you save water and maintain a healthy garden.

Advantages

Remote control from anywhere via smartphone; flexible scheduling (timed, cyclic, delay, manual); works with Amazon Alexa and Google Assistant for voice control; durable IP66-rated valve body; supports up to 128 Zigbee devices for future expansion.

Suitable for

• Home gardens and lawns
• Greenhouses and planters
• Drip irrigation systems
• Automated watering of flower beds

Key specifications

• Valve Model: TTV102B
• Gateway Model: TWG009BW
• Wireless Protocol (Gateway): Wi-Fi 2.4GHz (IEEE 802.11b/g/n)
• Wireless Protocol (Valve): Zigbee 3.0
• App Control: Tuya Smart / Smart Life
• Valve Power Source: 2 x AA Batteries (3V DC)
• Gateway Power Source: DC 5V/1A (Micro USB)
• Water Pressure Range: 0.05 - 0.8 MPa (0.5 - 8 bar)
• Water Flow Rate: Up to 30 L/min
• Thread Compatibility: G1/2" (DN15) and G3/4" (DN20) with adapters
• Ingress Protection (Valve): IP66
• Operating Temperature (Valve): 1°C to 50°C
• Operating Humidity (Valve): 0% - 95% RH (non-condensing)
• Valve Body Material: ABS Plastic
• Internal Valve Material: Brass
• Battery Life (Valve): Up to 6-12 months (typical)
• Max Zigbee Devices (Gateway): Up to 128

Recommendations

For best performance, use high-quality alkaline AA batteries and ensure the gateway is within Wi-Fi range. The valve is suitable for outdoor use but the gateway should be placed indoors or in a dry location.
