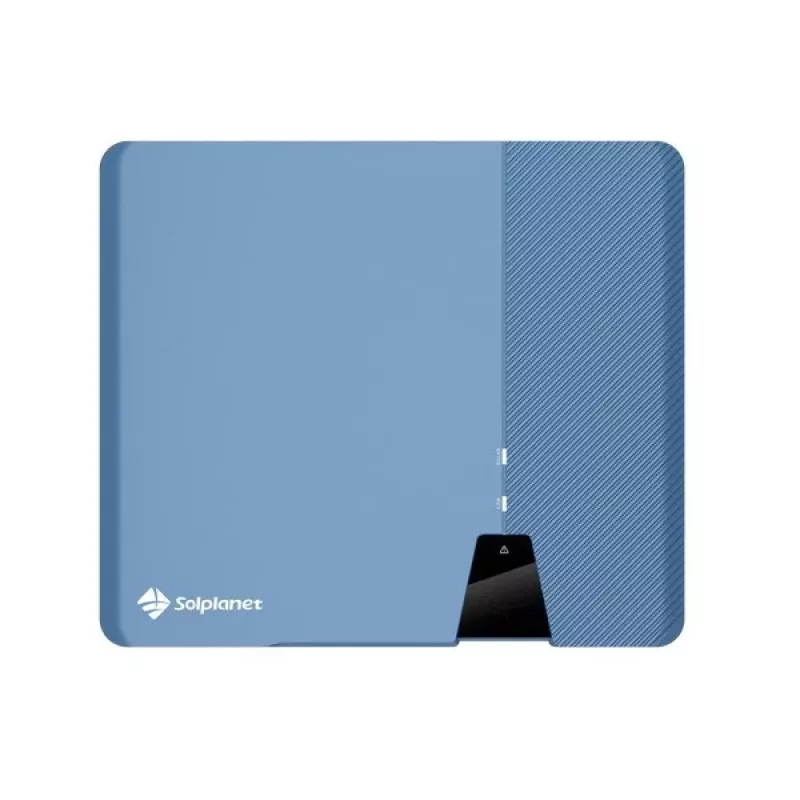

Solplanet ASW_12K-LT-G2 Pro 12kW driefasige omvormer met AFCI

The Solplanet ASW_12K-LT-G2 Pro is a high-performance three-phase inverter designed for residential and commercial solar installations. With a rated output of 12 kW and advanced AFCI protection, it ensures safe and efficient energy conversion. The inverter features dual MPPTs, natural convection cooling, and an IP65 rating for outdoor use. It supports WLAN communication for easy monitoring and includes integrated DC switch and Type II SPD for overvoltage protection.

Advantages

High efficiency up to 98.6% with a wide MPPT voltage range ensures maximum energy harvest. The transformerless topology reduces weight and size, while natural convection cooling eliminates fan noise and maintenance. AFCI protection enhances safety by detecting and extinguishing arc faults. The IP65 enclosure allows flexible installation both indoors and outdoors.

Suitable for

• Residential and small commercial solar systems
• Three-phase grid connections
• Installations requiring advanced safety features

Key specifications

• Rated AC Output Power: 12000 W
• Max. DC Input Power: 18000 W
• Number of MPPTs: 2
• Max. DC Input Voltage: 1100 V
• MPPT Voltage Range: 150 V - 1000 V
• Rated AC Grid Voltage: 3/N/PE, 230V/400V
• AC Grid Type: Three-phase
• Max. Efficiency: 98.6%
• European Efficiency: 97.9%
• Ingress Protection: IP65
• Communication Interfaces: WLAN (Wi-Fi)
• Protection Features: AFCI, DC Reverse Polarity, Anti-Islanding, AC Overcurrent, DC Overvoltage (Type II SPD)
• Operating Temperature Range: -25°C to +60°C
• Cooling Method: Natural Convection
• DC Switch: Integrated
• Topology: Transformerless
• Max. Output Current: 17.4 A (at 400V)
• Warranty: 10 Years (Standard)

Recommendations

For optimal performance, pair this inverter with compatible solar panels and ensure proper installation by a certified electrician. Regular monitoring via the WLAN interface helps maintain system efficiency.
