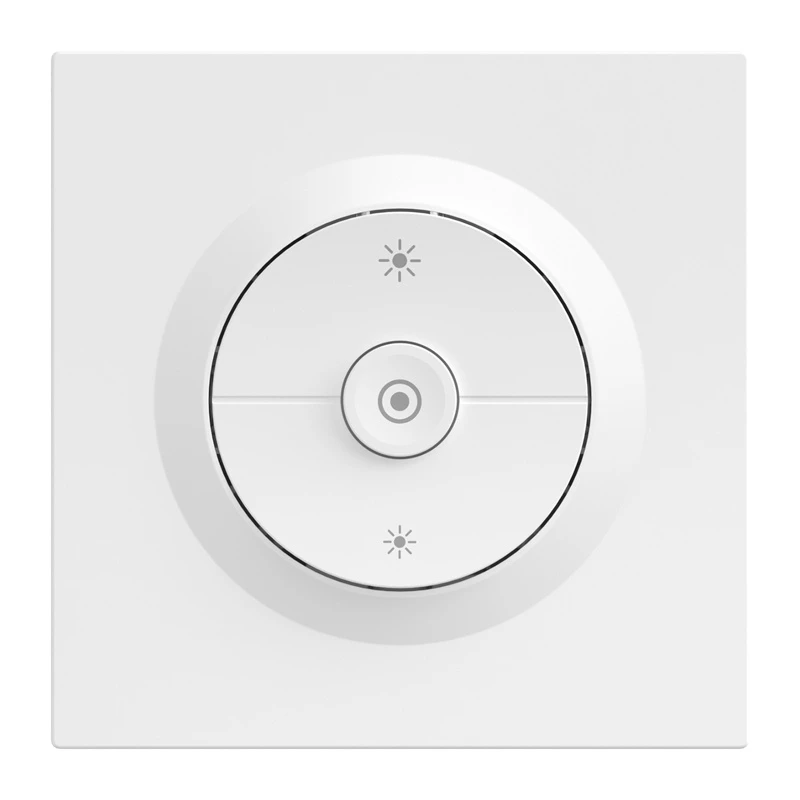

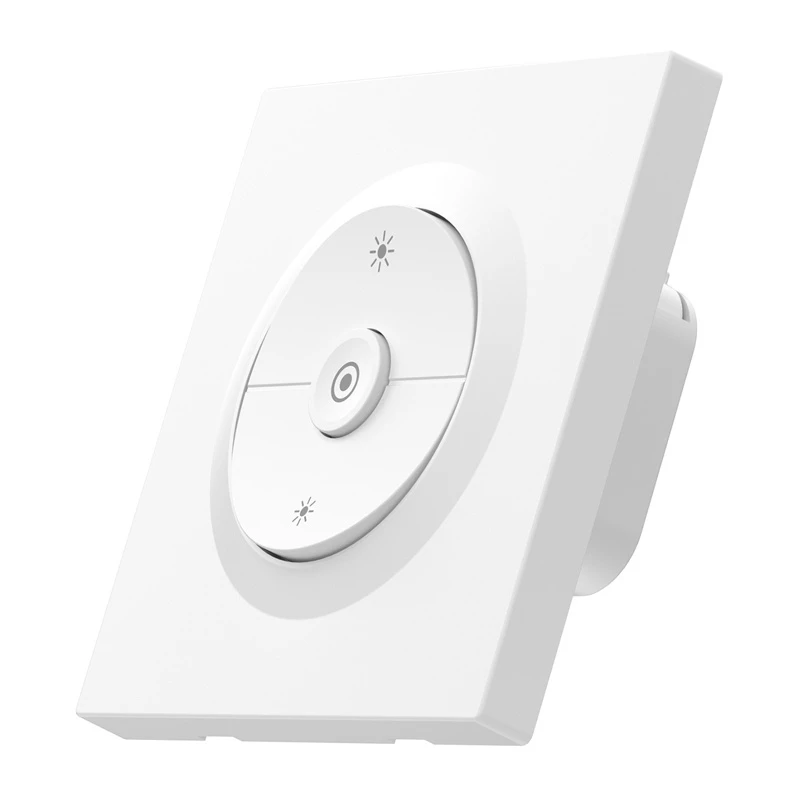

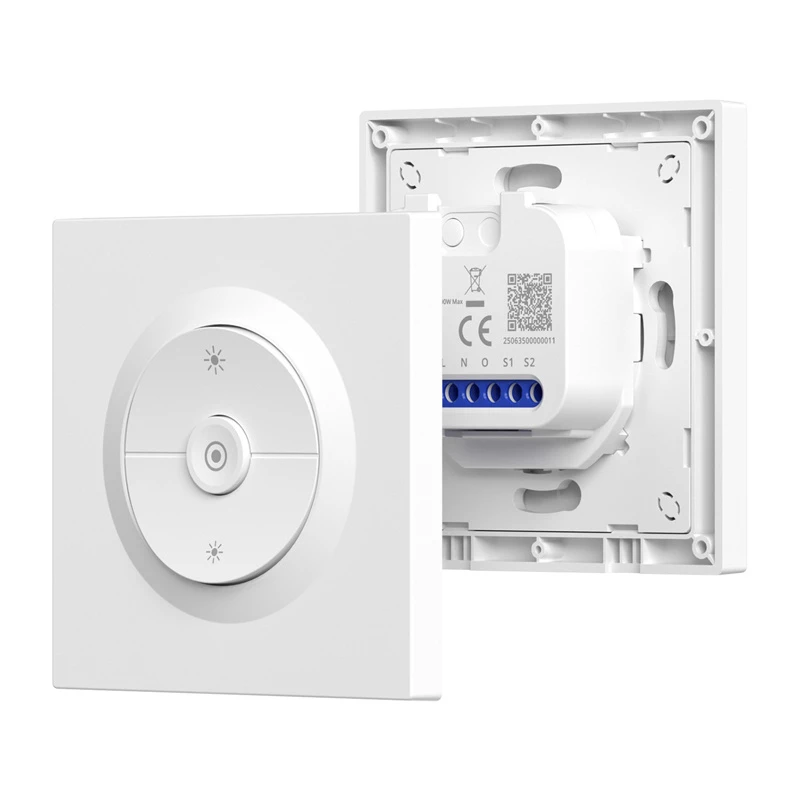

SONOFF MINI-DIM-E smart wifi wandschakelaar/dimmer met Matter

The SONOFF MINI-DIM-E is a smart WiFi wall switch and dimmer that supports Matter over WiFi, allowing seamless integration with smart home ecosystems. It enables smooth brightness adjustment from 0 to 100%, energy monitoring, scheduling, and voice control via Amazon Alexa and Google Assistant. With trailing-edge dimming and automatic calibration, it ensures compatibility with dimmable LED, incandescent, and halogen bulbs while reducing flicker. Built-in protections against overheating and power surges enhance safety. Requires neutral wire for installation.

Advantages

Stepless dimming with Orb-DIM technology for precise lighting control. Preset function for quick brightness selection. Wide compatibility with various light sources. Matter standard enables interoperability with major smart home platforms. Energy monitoring helps track consumption. Compact design fits standard wall boxes.

Suitable for

• Residential and commercial lighting control
• Retrofitting existing wall switches with smart dimming
• Integration with smart home systems via Matter
• Energy-conscious users wanting to monitor usage

Key specifications

• Input/Output Voltage: AC 100-240V 50/60Hz
• Max Load: 1A (dimmable LED/Incandescent)
• Wireless: Wi-Fi IEEE 802.11 b/g/n 2.4GHz
• Control: eWeLink App, Voice, 433MHz RF Remote, Manual
• Dimming Type: Phase-cut (Leading Edge)
• Compatible Bulbs: Dimmable LED, Incandescent, Halogen
• Voice Assistants: Amazon Alexa, Google Assistant
• Operating Temperature: -10°C to 40°C
• Enclosure Material: PC V0 (Fire-retardant)
• Certifications: CE, FCC, RoHS

Recommendations

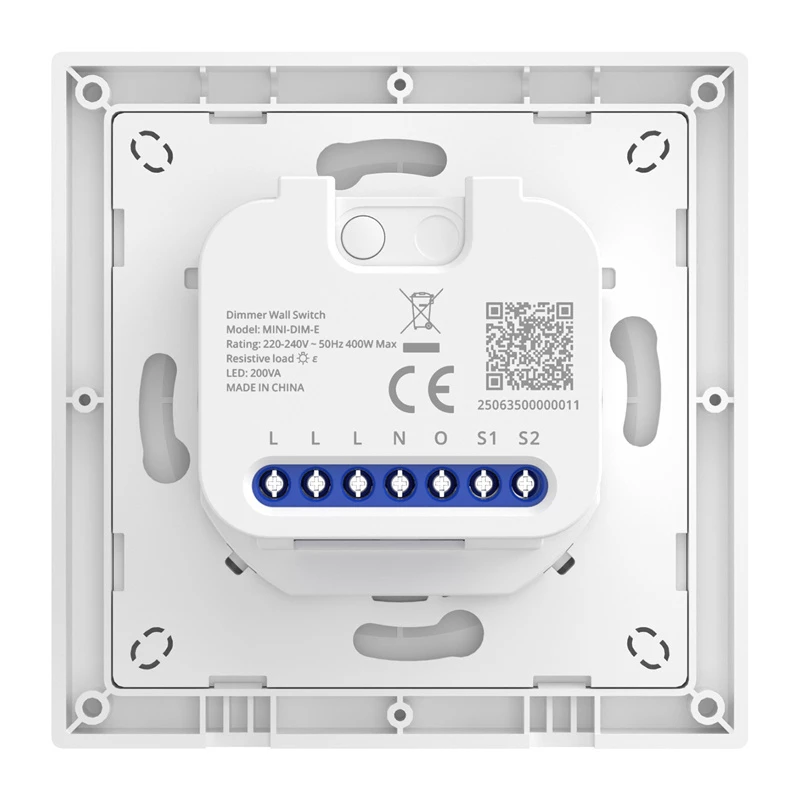

Ensure neutral wire is present in your wall box. Not suitable for fluorescent lamps, LED strips, or inductive loads. For optimal performance, use with dimmable LED bulbs rated up to 200 VA or incandescent/halogen up to 400 W.
