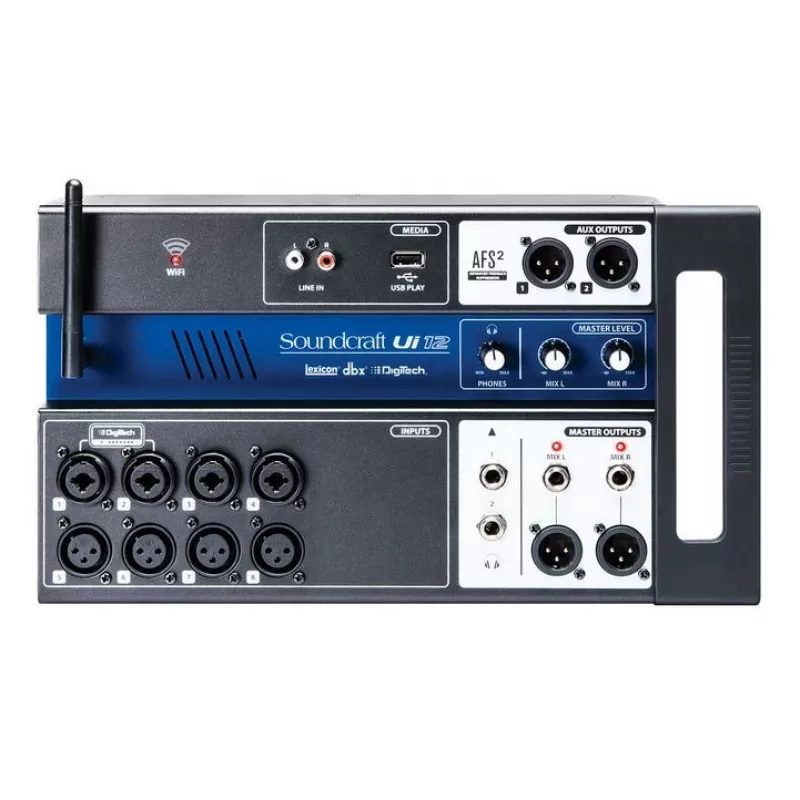

Soundcraft Ui12 digitaal netwerkmengpaneel

The Soundcraft Ui12 is a versatile 12-channel digital network mixer designed for live sound, rehearsals, and installations. It offers intuitive control via any HTML5 browser on smartphones, tablets, or laptops, eliminating the need for dedicated hardware. With built-in dual-band Wi-Fi, high-quality DSP effects, and comprehensive dynamics processing, the Ui12 delivers professional-grade audio performance in a compact, portable form factor.

Advantages

Wireless control from up to 10 devices simultaneously; no app installation required. Lexicon reverb, delay, and chorus effects plus dbx AFS2 automatic feedback suppression ensure pristine sound. DigiTech guitar amp modeling adds creative flexibility. The mixer supports 24-bit/48 kHz audio resolution with ultra-low latency under 2 ms.

Suitable for

• Live bands and solo performers
• Corporate events and conferences
• House of worship installations
• Educational institutions and rehearsal spaces

Key specifications

• 12 input channels: 4x XLR mic/line, 4x XLR/TRS combo, 2x TRS instrument/line, 2x RCA line
• Outputs: 2x XLR main, 2x TRS aux, 1x TRS headphone
• Built-in dual-band Wi-Fi (2.4/5 GHz) and Ethernet port for wired control
• DSP: Lexicon reverb, delay, chorus; compressor, gate, de-esser on all inputs
• dbx AFS2 automatic feedback suppression
• DigiTech guitar amp modeling
• 4-band parametric EQ on inputs, 31-band graphic EQ on outputs
• USB audio playback and recording (2-channel, WAV/MP3/AIFF)
• +48V phantom power on all mic inputs
• Rack-mountable with optional kit
• External 12V DC power supply

Recommendations

The Soundcraft Ui12 is ideal for musicians and sound engineers seeking a flexible, wireless-controlled mixer without sacrificing audio quality. Its intuitive browser-based interface and robust feature set make it a top choice for live and installed sound applications.
