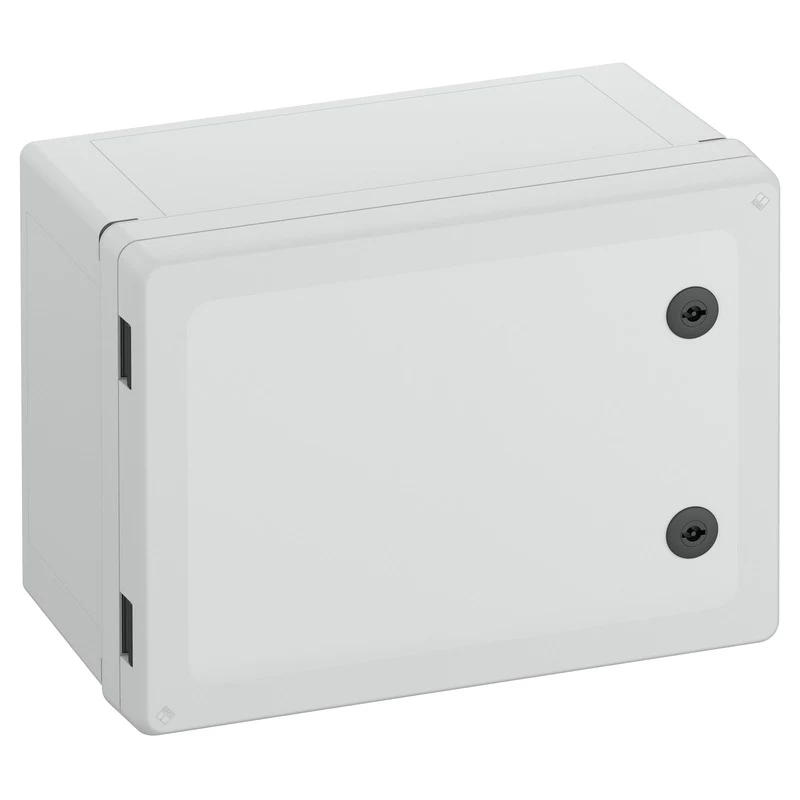

Spelsberg GEOS-S 4030-22-o polycarbonaat behuizing 500 x 400 x 226 mm grijs 71074301

Protect electrical and electronic components from dust, water and mechanical impact with the Spelsberg GEOS-S 4030-22-o enclosure. Its robust polycarbonate body and IP66 rating make it suitable for demanding industrial and outdoor installations.

Who is it for

Electricians, panel builders and maintenance engineers who need a reliable, weatherproof housing for control equipment, terminals or distribution boards.

Main features

• Polycarbonate construction: lightweight yet tough, halogen-free and UV-resistant.
• External dimensions 500 x 400 x 226 mm, internal approx. 475 x 375 x 205 mm for generous wiring space.
• Opaque grey lid (RAL 7035) with stainless steel screws for secure closure.
• Smooth walls allow flexible cable entry via glands or flanges.
• Wall-mountable directly or with accessories.

Specifications

• Material: Polycarbonate
• External dimensions (H x W x D): 500 x 400 x 226 mm
• Internal dimensions (H x W x D): 475 x 375 x 205 mm
• Protection class: IP66
• Impact resistance: IK08
• Colour: Grey (RAL 7035)
• Operating temperature: -35 °C to +80 °C
• Rated insulation voltage: 1000 V AC / 1500 V DC
• Flammability rating: UL 94 V-0
• Halogen-free: Yes
• UV resistance: Yes
• Mounting type: Wall mounting
• Lid fasteners: Stainless steel screws
• Cable entry: Smooth walls for cable glands/flanges
• Standards: IEC 62208, EN 60529, EN 62262
• Glow wire test: 960 °C

Tips

For outdoor use, ensure cable glands and flanges are correctly sealed to maintain the IP66 rating. Use the optional mounting accessories for faster installation.
