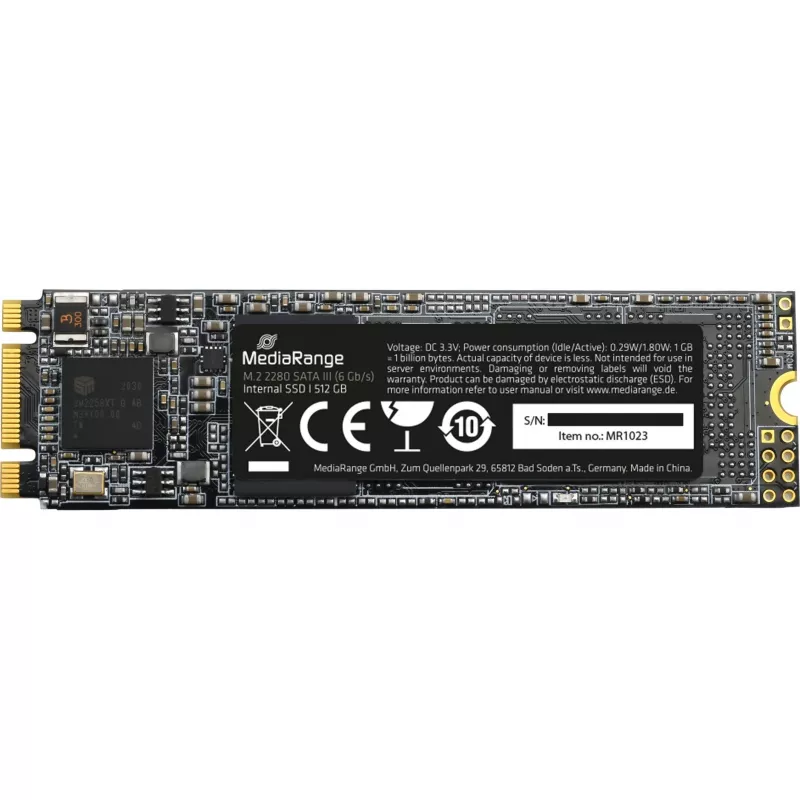

SSD MediaRange 512 GB M.2 SATA III MR1023

The MediaRange MR1023 is a 512 GB internal solid state drive in M.2 form factor with a SATA III interface. It provides fast access to files and system resources thanks to read speeds up to 535 MB/s and write speeds up to 470 MB/s, using a 6 Gbit/s data transfer rate to improve boot times and overall responsiveness of desktops and laptops.

Advantages

The M.2 SATA III design saves space inside compact systems while delivering higher performance than traditional hard drives. Using modern NAND flash and a high-performance controller, the drive offers reliable data transfers and lower latency for everyday computing tasks.

Suitable for

• Upgrading laptop storage to improve boot and application load times
• Replacing or supplementing desktop HDDs for faster system responsiveness
• Compact PCs and small form-factor builds where M.2 space is available

Key specifications

• Capacity: 512 GB
• Form factor: M.2
• Interface: SATA III (6 Gbit/s)
• Max read speed: up to 535 MB/s
• Max write speed: up to 470 MB/s
• Weight: 0.008 kg

How to use

Install the M.2 SSD into an available M.2 slot on the motherboard that supports SATA mode, secure it with the mounting screw, then initialize, partition and format the drive in the operating system. For a system upgrade, clone the existing drive or perform a fresh OS installation following standard cloning or installation procedures.

Recommendations

Use compatible M.2 slots that support SATA (not NVMe) and ensure your motherboard BIOS/UEFI recognises SATA-mode M.2 devices. Keep firmware and drivers up to date and maintain regular backups for important data.
