StarTech.com 5U verticale wandbeugel - 19 inch low-profile open wandmontagebeugel - netwerk-/serverruimte-/data-/AV-/IT-/patchpaneel-/communicatie-/computerapparatuur - met kooimoeren/schroeven

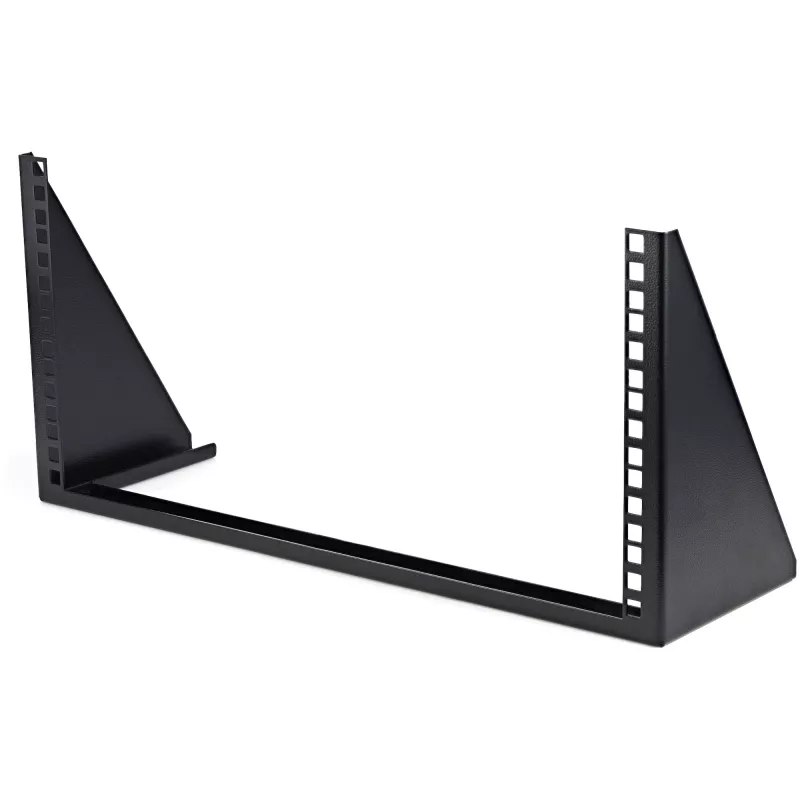

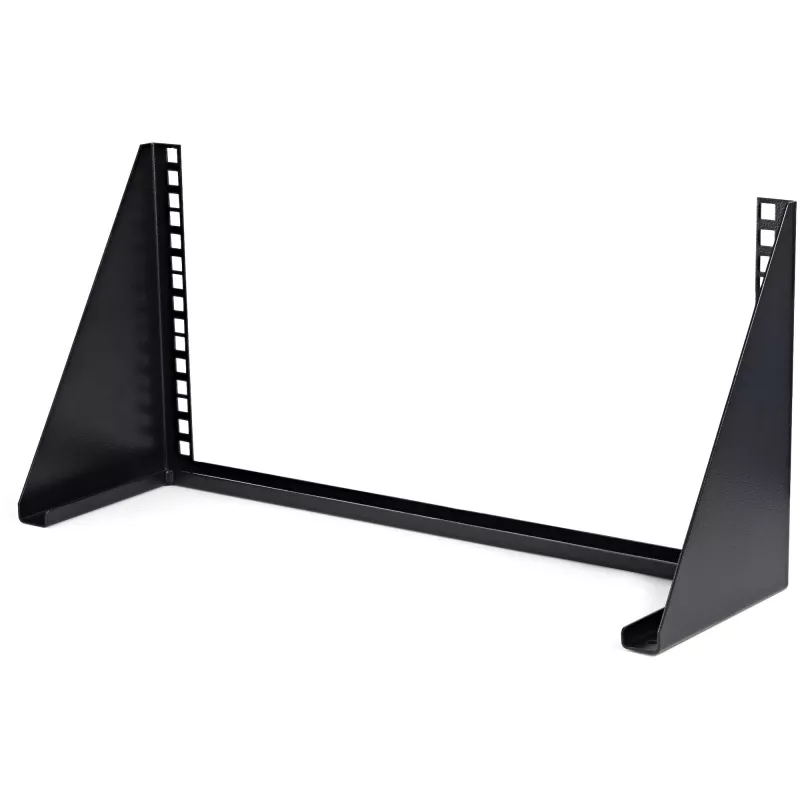

When floor space is at a premium, the StarTech.com 5U Vertical Wall Mount Rack turns unused wall or under-desk area into secure, organized equipment storage. Unlike bulky floor-standing cabinets, this low-profile open frame bracket mounts flush to the wall or beneath a desk, keeping servers, switches, patch panels and AV gear accessible without sacrificing room to move. The 19-inch EIA-310 compliant frame is built from heavy-duty steel and includes M5 cage nuts and screws for immediate installation.

Highlights

• 5U vertical rack capacity for 19-inch equipment
• Supports up to 90.7 kg (200 lb) – ideal for switches, patch panels, power strips and small servers
• Mounting holes spaced 16 inches apart to match standard wall studs
• Versatile orientation: vertical wall mount or horizontal under-desk mount
• Low-profile open frame design for easy cable access and airflow
• TAA compliant for GSA Schedule purchases
• Sturdy steel construction with black finish

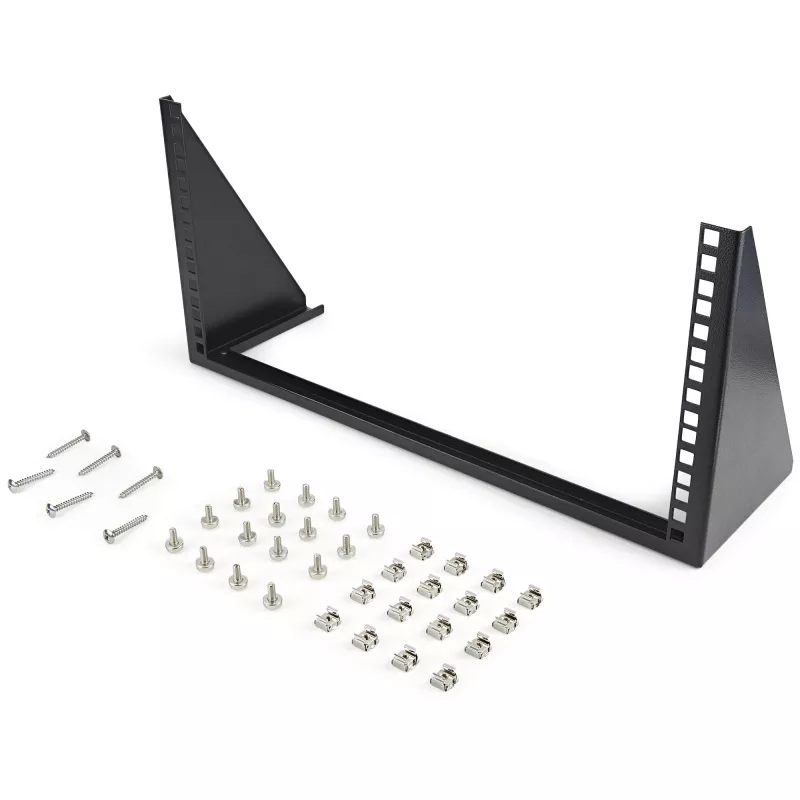

• Includes M5 cage nuts and screws

In daily use

Install the RK519WALLV in a network closet, server room, home office or AV setup. The open frame keeps equipment cool and accessible, while the 16-inch stud spacing simplifies mounting on drywall or wood studs. For desk environments, attach the bracket underneath to keep gear within reach but off the work surface. The included cage nuts and screws mean you can mount standard 19-inch equipment right out of the box.

Full specifications

• Rack units: 5U
• Rack type: Vertical wall mount, open frame
• Rack width: 19 inches (EIA-310-D)
• Weight capacity: 90.7 kg (200 lb)
• Material: Steel
• Colour: Black
• Mounting orientation: Vertical (wall) or horizontal (under-desk)
• Mounting hole spacing: 16 inches (406 mm) – standard stud spacing
• Included hardware: M5 cage nuts, M5 screws
• Certifications: CE, REACH, RoHS
• Warranty: 2-year StarTech.com

Final note

For space-constrained IT environments, the StarTech.com 5U Vertical Wall Mount Rack delivers a robust, TAA-compliant mounting solution that keeps your equipment secure, accessible and out of the way.
