StarTech.com TAA-conforme LC/UPC single-mode glasvezel loopback-adapter (blauw)

Verifying fiber optic network integrity demands precision—this LC/UPC single-mode loopback adapter delivers an insertion loss below 0.2 dB and return loss greater than 50 dB, ensuring accurate signal testing and troubleshooting for enterprise and data center environments.

Overview

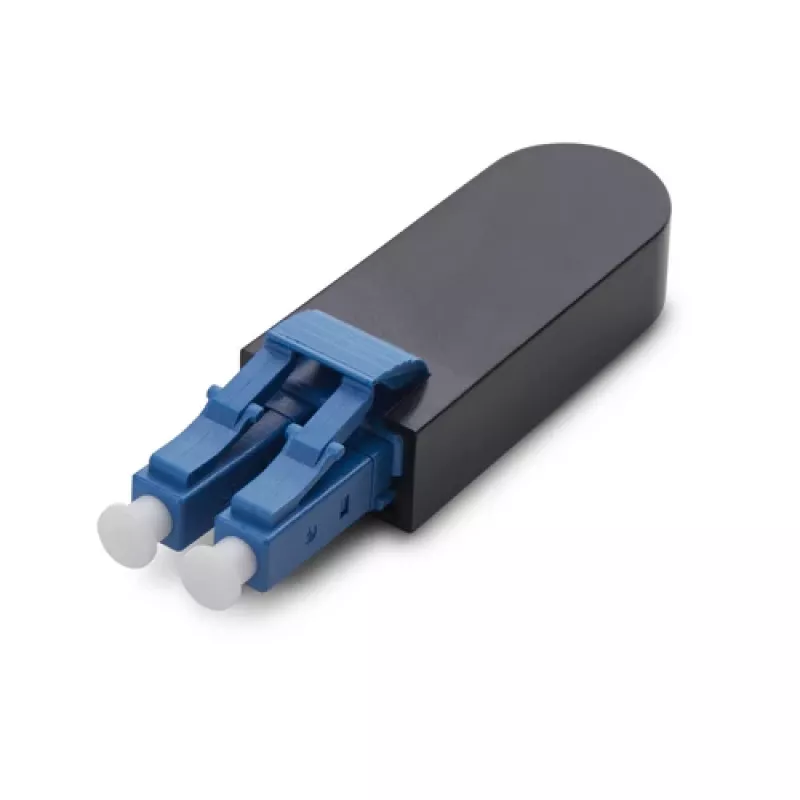

The StarTech.com LOOPBACKLCLC00DB is a TAA-compliant loopback adapter engineered for single-mode fiber networks. Its duplex LC/UPC male connectors allow you to quickly loop back transmitted signals to the receiver, making it an essential tool for burn-in testing, port validation, and network diagnostics. Built for reliability, this adapter operates across a wide temperature range and survives harsh storage conditions.

What stands out

• Exceptional signal integrity: Insertion loss below 0.2 dB and return loss greater than 50 dB preserve test accuracy.
• Single-mode precision: Optimized for 9/125 µm fiber cores with support for 1310nm and 1550nm wavelengths.
• Rugged durability: Operating temperature from -20°C to 70°C and storage from -40°C to 85°C ensure consistent performance.
• Compliance and safety: TAA compliant, RoHS, and REACH certified, suitable for government and environmentally conscious projects.

Technical details

• Adapter Type: Loopback Adapter
• Connector Type: LC/UPC, Male
• Fiber Mode: Single-mode
• Fiber Core Diameter: 9/125 µm
• Supported Wavelengths: 1310nm, 1550nm
• Insertion Loss: < 0.2 dB
• Return Loss: > 50 dB
• Housing Material: Plastic
• Colour: Blue
• Humidity: 5% to 95% RH (Non-condensing)

Our verdict

For IT professionals who demand reliable fiber testing, the LOOPBACKLCLC00DB offers exceptional performance and compliance in a compact form factor.
