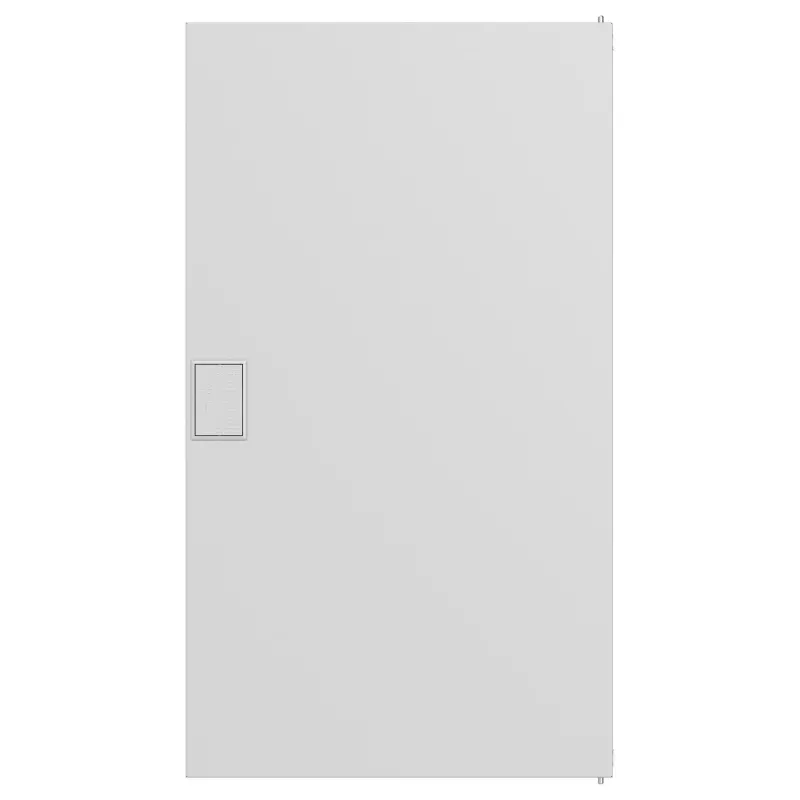

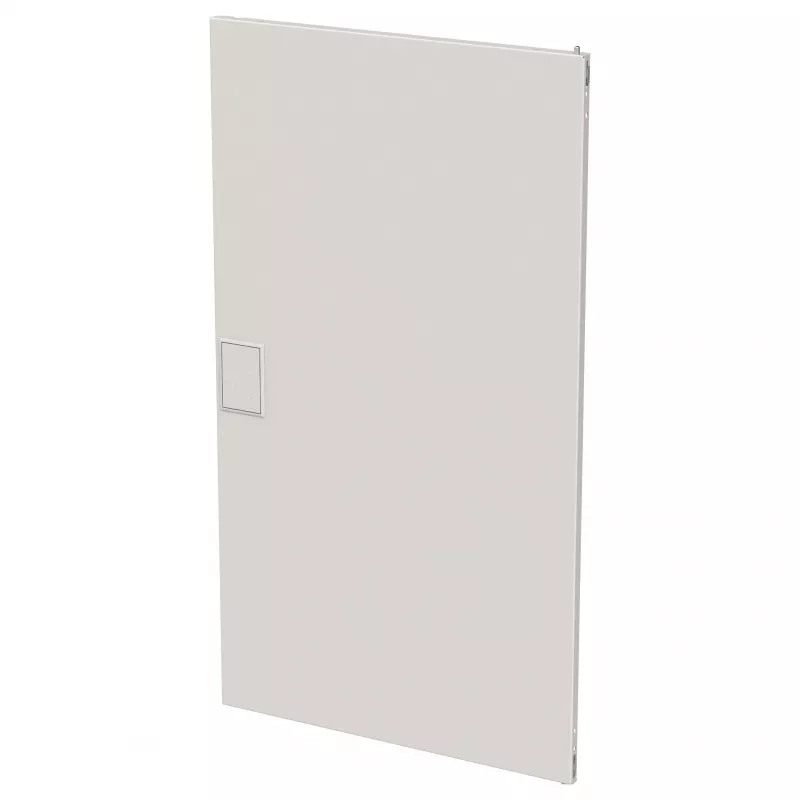

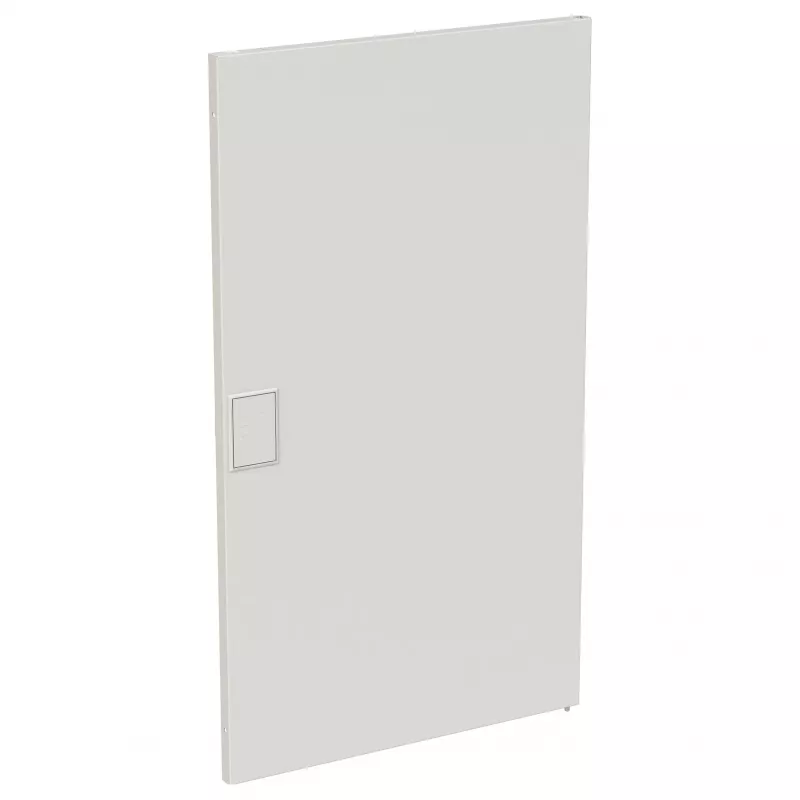

Striebel & John AK600 deur 3RE RAL9016 verkeerswit 2CPX031151R9999

The Striebel & John AK600 Door 3RE is a high-quality distribution cabinet door designed for the AK600 series. This opaque, solid door in traffic white (RAL 9016) provides reliable protection and easy access to your electrical installations. Manufactured from powder-coated sheet steel, it ensures durability and corrosion resistance for indoor and protected outdoor environments.

Advantages

Robust construction with reversible hinge for flexible installation. Maintains cabinet IP44/IP55 protection class when properly installed. Includes standard double-bit lock with two keys for security.

Suitable for

• Striebel & John AK600 distribution cabinets
• Indoor and protected outdoor electrical installations
• Applications requiring a solid, lockable door

Key specifications

• Product Type: Distribution Cabinet Door
• Compatible Cabinet Series: Striebel & John AK600
• Number of Module Rows: 3
• Color: Traffic White (RAL 9016)
• Material: Sheet Steel
• Surface Finish: Powder-coated
• Door Design: Opaque (Solid)
• Lock Type: Standard Double-Bit Lock
• Keys Included: 2
• Hinge Position: Reversible (Left or Right)
• Opening Angle: 180 degrees
• Contribution to IP Rating: Maintains cabinet's IP44/IP55 protection class
• Application Environment: Indoor / Protected Outdoor
• Mounting Type: Hinged
• Corrosion Resistance: Yes
• Certifications: CE

Recommendations

Ensure proper installation to maintain the cabinet's IP rating. Suitable for use with Striebel & John AK600 enclosures.
