Striebel & John opbouwverdeelkast 2FB 5-rijig CA25V

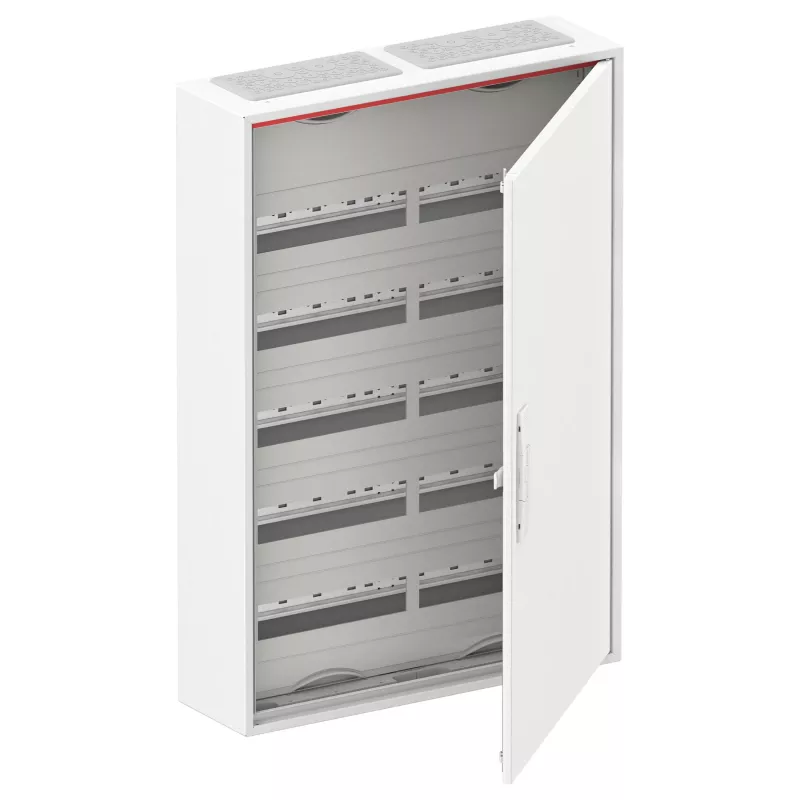

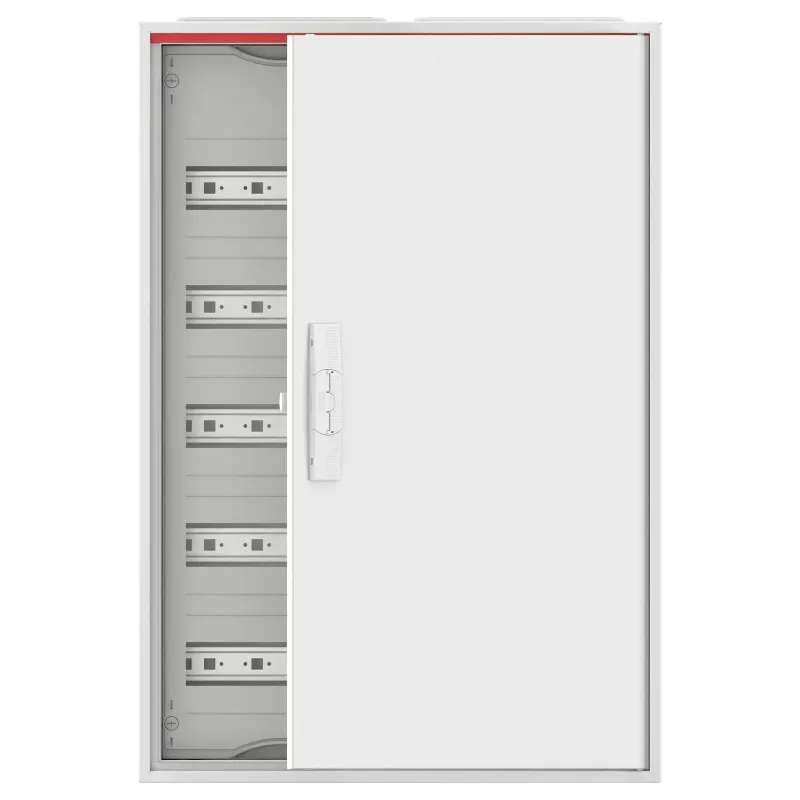

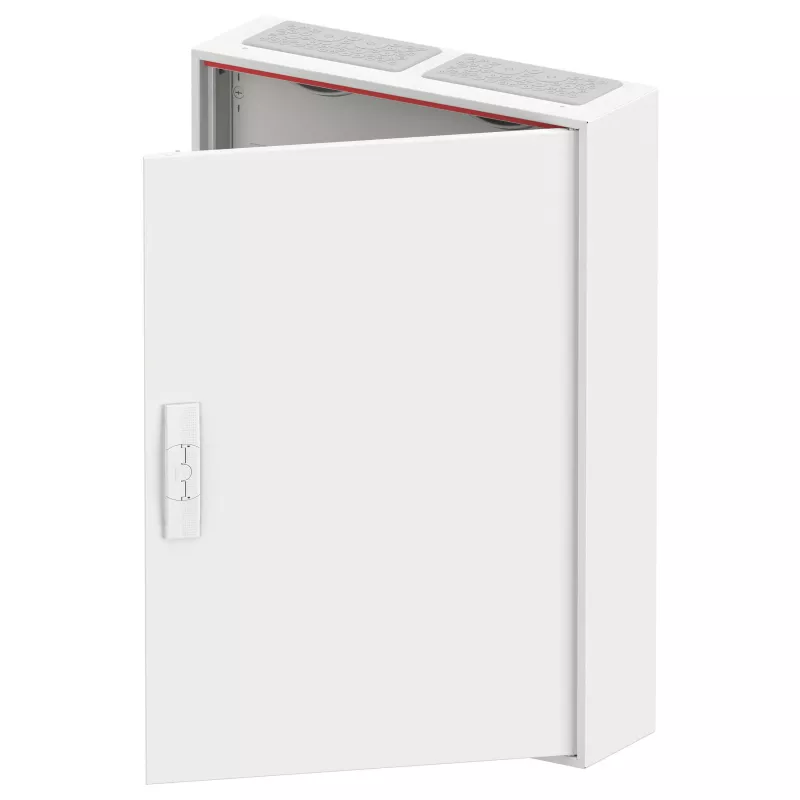

The Striebel & John 2CPX052186R9999 is a high-quality surface-mounted distribution board designed for efficient and safe electrical distribution in residential and commercial installations. With a 5-row configuration and 18 modules per row, it offers a total of 90 TE (modular spaces), providing ample capacity for circuit breakers, RCDs, and other DIN rail mounted devices. The enclosure is made from durable polystyrene (plastic) with a transparent door, allowing easy visual inspection of the installed components. Rated at IP40, it offers protection against solid objects larger than 1 mm, making it suitable for indoor use. The board complies with DIN VDE 0603-1 and DIN 43871-1 standards, ensuring reliability and safety.

Advantages

This distribution board combines robust construction with user-friendly features. The surface-mounted design simplifies installation, while pre-stamped cable entries on top, bottom, and sides allow flexible cable routing. The included N/PE terminal blocks (plug-in type) speed up wiring, and the transparent door provides quick status checks without opening. Halogen-free materials enhance fire safety, and the glow-wire test temperature of 650 °C ensures high thermal resistance.

Suitable for

• Residential electrical distribution systems
• Commercial buildings requiring surface-mounted enclosures
• Installations needing up to 90 modular spaces
• Applications demanding IP40 protection and halogen-free components

Key specifications

• Installation Type: Surface-mounted (Aufputz)
• Number of Rows: 5
• Modules per Row (TE): 18
• Total Modules (TE): 90
• Protection Class (IP): IP40
• Material: Polystyrene (Plastic)
• Door Type: Transparent
• Color: White (RAL 9010)
• Rated Operational Voltage: 400 V AC
• Rated Current: 63 A
• Electrical Protection Class: II
• Glow-wire Test Temperature: 650 °C
• Standards: DIN VDE 0603-1, DIN 43871-1
• N/PE Terminal Blocks: Included (Plug-in type)
• Cable Entry: Pre-stamped openings (top, bottom, side)
• DIN Rail: Yes, included
• Halogen-free: Yes

Recommendations

For optimal performance, use with compatible Striebel & John accessories and ensure proper installation by a qualified electrician. This distribution board is ideal for new constructions or retrofits where surface mounting is preferred.
