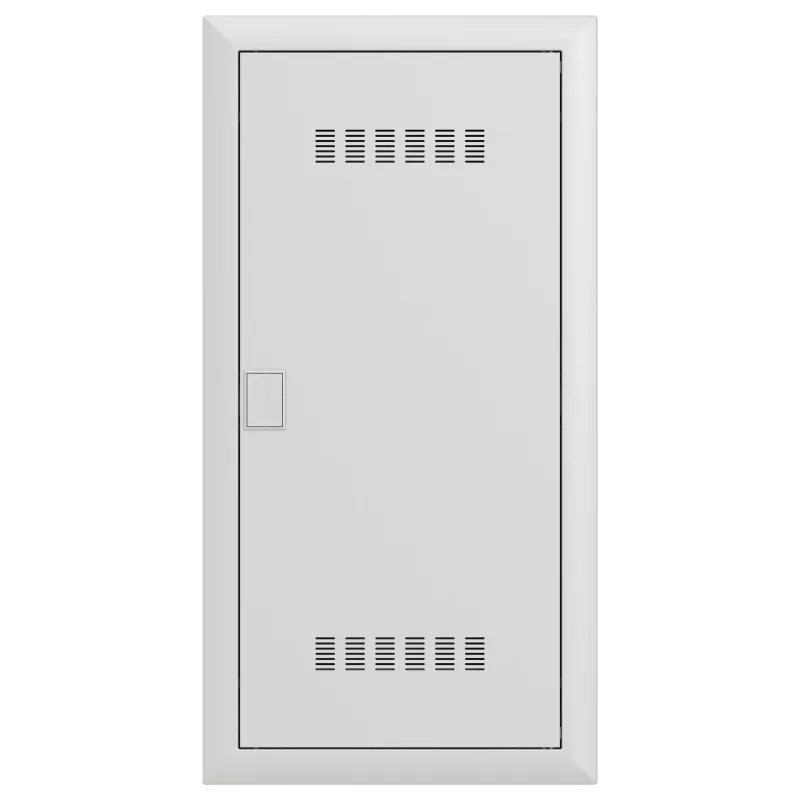

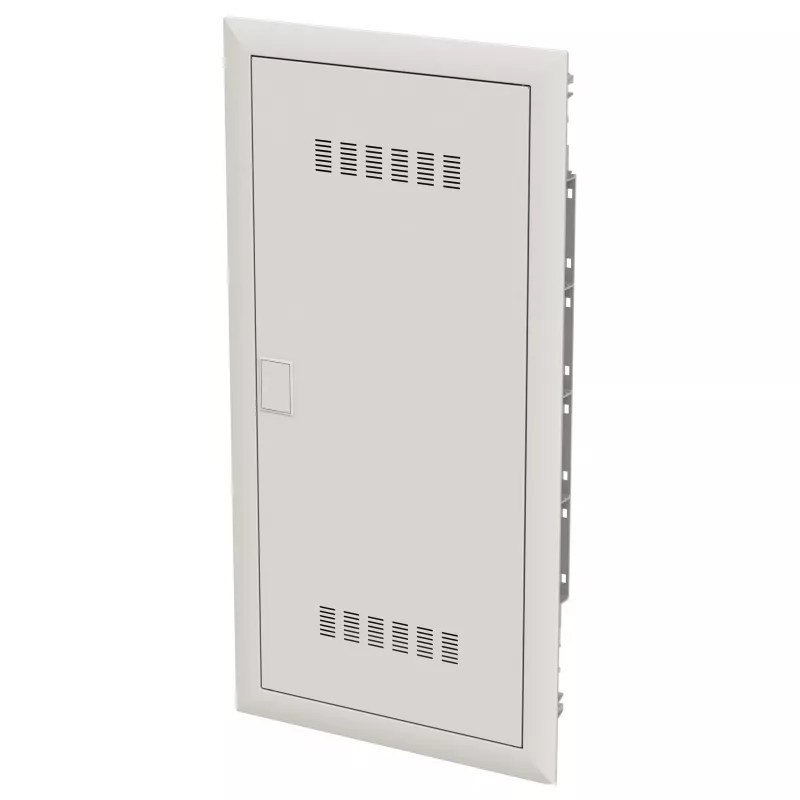

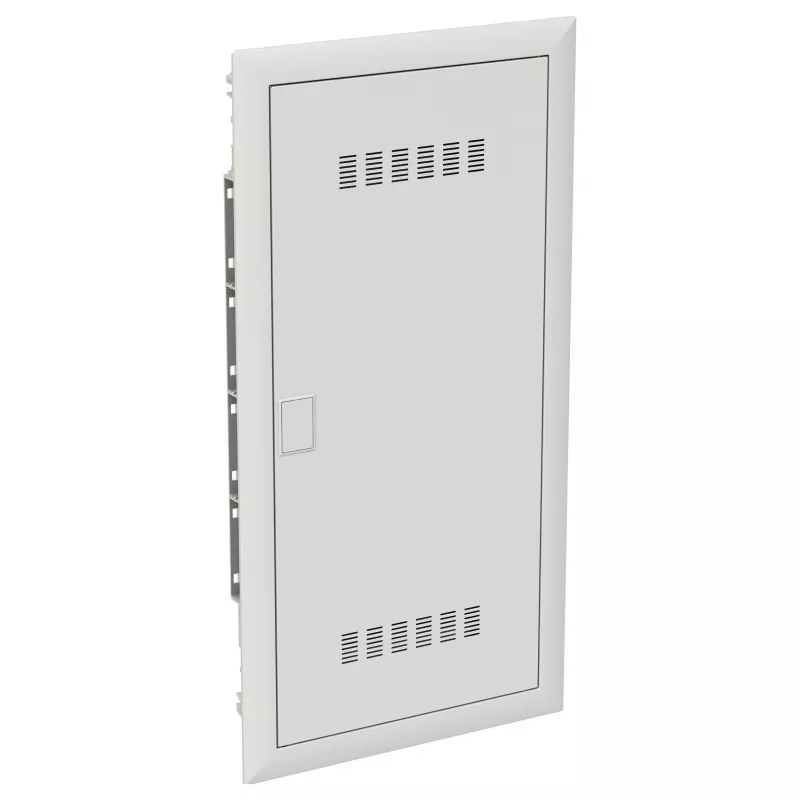

Striebel & John UK648MV Media VT UP patch panel 4 rijen geventileerd transparante deur wit

The Striebel & John UK648MV is a flush-mounted multimedia distribution board from the UK600 series, designed for network and communication technology installations. It features a ventilated transparent door and a 4-row patch panel configuration, providing easy access and optimal ventilation for active components.

Advantages

Space-saving flush-mounted design with 4 rows for patch panels and accessories. Ventilated transparent door allows visual inspection while ensuring airflow. Pre-punched cable entries at top and bottom simplify installation. Optional lockable door for security.

Suitable for

• Multimedia and network distribution in residential and commercial buildings
• Installation of patch panels, switches, and other communication devices
• Flush-mounted enclosures requiring IP30 protection

Key specifications

• Installation: Flush-mounted (UP)
• Number of rows: 4
• Door: Ventilated, transparent plastic insert
• Material: Steel sheet housing and door
• Colour: White (RAL 9010)
• Protection: IP30, IK07
• Standards: DIN VDE 0603-1, DIN 43870-1
• Door opening angle: 120°
• Door reversibility: Yes
• Cable entry: Top and bottom, pre-punched
• Halogen-free: Yes
• Glow wire test: 650 °C
• Included: Patch panel, perforated mounting plate, 1x Schuko socket

Recommendations

For optimal performance, use with Striebel & John accessories such as lock kits or additional mounting plates. Ensure proper cable management for airflow.
