Supermicro 2x Mini-SAS HD naar 4x SAS + 2x stroomkabel (CBL-SAST-0675) 80 cm interne SAS breakout-kabel

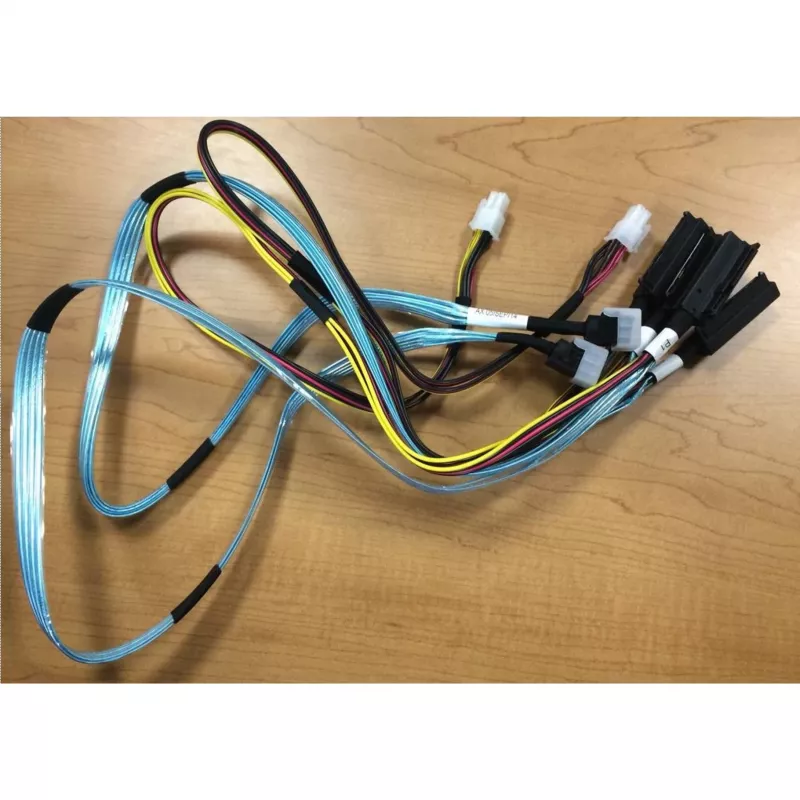

The Supermicro CBL-SAST-0675 is a high-performance internal SAS breakout cable designed for connecting Mini-SAS HD host ports to multiple SAS drives. This cable features two Mini-SAS HD (SFF-8643) connectors on the host side and four SAS (SFF-8482) connectors plus two power connectors on the device side, enabling efficient data and power delivery in server, workstation, and storage systems.

Advantages

This cable supports SAS 3.0 speeds up to 12 Gbps per lane, ensuring fast data transfer for demanding applications. The integrated power connectors simplify cable management by combining data and power in one assembly. The 80 cm length provides flexibility in routing within chassis, and the robust construction with copper conductors and PVC jacket ensures durability and reliable performance.

Suitable for

• Supermicro servers and workstations with Mini-SAS HD (SFF-8643) ports
• RAID controllers and HBA cards requiring SAS breakout connections
• Storage systems with multiple SAS drives (SFF-8482)
• Data centers and enterprise environments needing high-speed internal storage interconnects

Key specifications

• Host Connector: 2x Mini-SAS HD (SFF-8643)
• Device Connector: 4x SAS (SFF-8482) + 2x Power
• Cable Length: 80 cm (0.8 m)
• Data Transfer Rate: Up to 12 Gbps (SAS 3.0)
• Number of Lanes: 4
• Breakout Type: 1x Mini-SAS HD to 4x SAS
• Conductor Material: Copper
• Jacket Material: PVC
• Color: Black
• Impedance: 100 Ohm
• Compliance: RoHS
• Application: Internal

Recommendations

For optimal performance, pair this cable with Supermicro motherboards and RAID controllers that support SFF-8643 connectors. Ensure your chassis has adequate space for the 80 cm cable length. This cable is ideal for building high-density storage arrays or upgrading existing systems to SAS 3.0 speeds.
