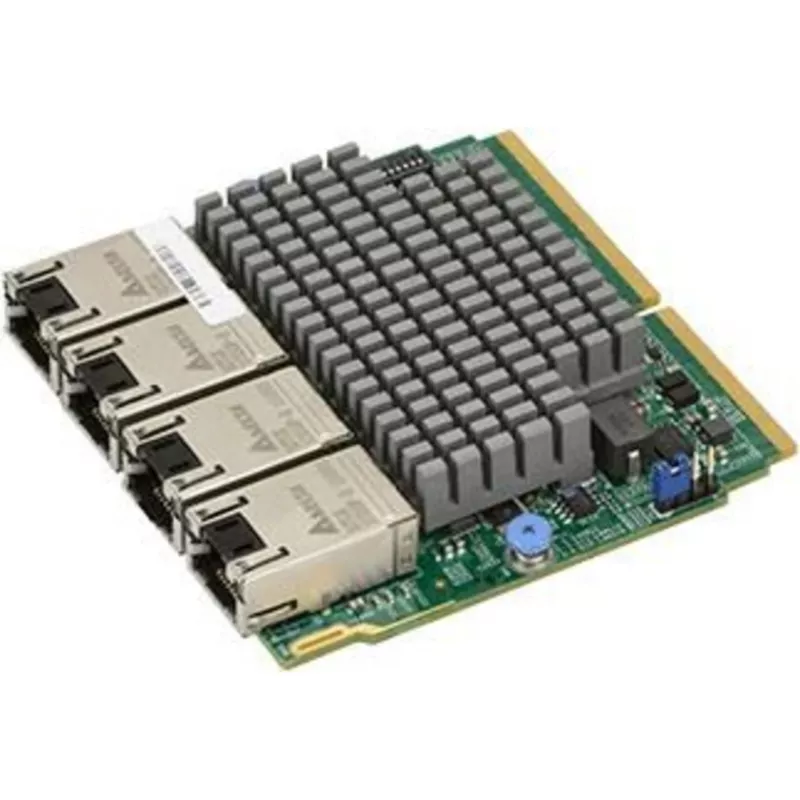

Supermicro AOC-MTG-I4TM-O quad-port 10GbE RJ-45 SIOM netwerkkaart

The Supermicro AOC-MTG-I4TM-O is a high-performance quad-port 10 Gigabit Ethernet network interface card designed for Supermicro server I/O Module (SIOM) slots. Featuring dual Intel X550-AT2 controllers, it delivers reliable 10GbE connectivity over standard RJ-45 copper cabling, making it ideal for data centers, enterprise networks, and virtualized environments.

Advantages

With four 10GbE ports, this adapter provides high-density, low-latency networking for bandwidth-intensive applications. The SIOM form factor ensures seamless integration with compatible Supermicro motherboards, saving PCIe slots. Advanced offload capabilities and virtualization support (Intel VT-c, SR-IOV) reduce CPU overhead and improve performance in virtualized deployments.

Suitable for

• Enterprise data centers requiring high-speed server connectivity
• Virtualized environments (VMware, Hyper-V, KVM) needing efficient I/O
• High-performance computing (HPC) and storage clusters
• Network aggregation and backbone links

Key specifications

• Network Controller: 2 x Intel X550-AT2
• Port Configuration: Quad-Port (4 x RJ-45)
• Data Transfer Rate: 10 Gigabit Ethernet per port
• Host Interface: Supermicro SIOM (PCIe 3.0 x8 equivalent)
• Connector Type: RJ-45
• Ethernet Standards: IEEE 802.3an (10GBASE-T), 802.3ab (1000BASE-T), 802.3u (100BASE-TX), 802.3az (EEE)
• Jumbo Frame Support: Up to 9.5 KB
• Virtualization Support: Intel VT-c (VMDq, SR-IOV)
• Offload Capabilities: TCP/UDP/IP Checksum Offload, TSO, RSS, TSS
• PXE Support: Yes
• iSCSI Support: Yes
• FCoE Support: Yes
• VLAN Support: IEEE 802.1Q VLAN tagging
• Cabling Requirements: Cat6a (up to 100m), Cat6 (up to 55m)
• Operating System Support: Windows, Linux, VMware ESXi, FreeBSD
• LED Indicators: Link/Activity
• Form Factor: Supermicro SIOM

Recommendations

For optimal performance, use Cat6a or higher cabling. Ensure your Supermicro server has an available SIOM slot. This card is not compatible with standard PCIe slots without an adapter.
