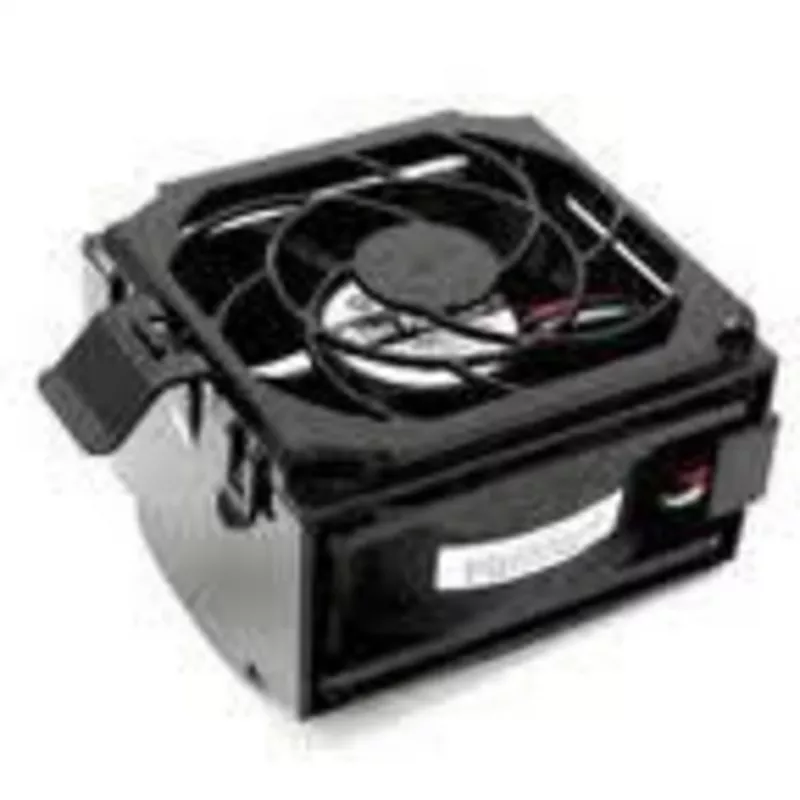

Supermicro FAN-0114L4 92mm behuizingsventilator voor A+ Server 4021GA-62, SC747, SuperServer 7046

The Supermicro FAN-0114L4 is a high-performance 92mm housing fan designed for server chassis cooling. It delivers reliable airflow and static pressure to maintain optimal operating temperatures in Supermicro server systems.

Advantages

This fan features dual ball bearings for extended life expectancy of 70,000 hours MTTF, PWM speed control for efficient thermal management, and a compact 92x92x38mm form factor suitable for tight server enclosures.

Suitable for

• Supermicro A+ Server 4021GA-62
• Supermicro SC747 Chassis
• Supermicro SuperServer 7046 Series (e.g., 7046GT-TRF)

Key specifications

• Fan Size: 92 mm
• Dimensions: 92 x 92 x 38 mm
• Connector: 4-Pin PWM
• Rated Voltage: 12V DC
• Rated Current: 0.7A
• Power Consumption: 8.4W
• Fan Speed: 4500 RPM
• Airflow: 90 CFM
• Static Pressure: 6.5 mmH2O
• Noise Level: 45 dBA
• Bearing Type: Dual Ball Bearing
• Life Expectancy: 70,000 hours

Recommendations

Ensure compatibility with your Supermicro chassis or server model before purchase. This fan is a direct replacement for original equipment in listed systems.
