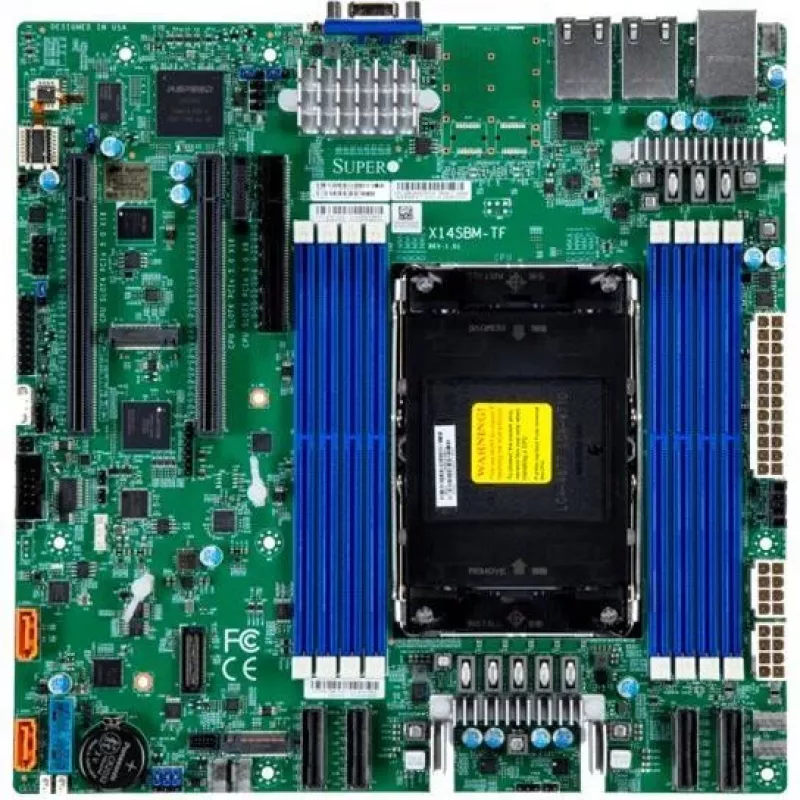

Supermicro moederbord X14SBM-TF

The Supermicro X14SBM-TF is a Micro-ATX server motherboard engineered for Intel Xeon E-2400 series processors, delivering enterprise-grade performance with dual 10GbE networking and DDR5 ECC memory support. Its Intel C266 chipset and LGA1700 socket provide a robust foundation for small business servers, edge computing, and virtualization workloads.

Advantages

This board combines high-speed connectivity, reliable memory integrity, and flexible expansion in a compact form factor. The integrated Intel X710-AT2 dual 10GbE ports enable low-latency data transfer, while four DDR5 ECC UDIMM slots (up to 128GB) safeguard against data corruption. A dedicated IPMI 2.0 LAN port with ASPEED AST2600 BMC offers full remote management, including KVM over IP, reducing on-site maintenance.

Suitable for

• Small and medium business servers requiring dependable performance
• Virtualization hosts running VMware ESXi, Windows Server, or Linux
• Edge computing nodes needing compact, power-efficient hardware
• Network-attached storage (NAS) and data backup systems
• Remote branch office infrastructure with centralized management

Key specifications

• Socket: LGA1700 for Intel Xeon E-2400 series processors
• Chipset: Intel C266
• Memory: 4x DDR5 ECC UDIMM slots, up to 128GB, 4800MHz
• Expansion: 1x PCIe 5.0 x16, 2x M.2 NVMe (PCIe 4.0 x4)
• Storage: 4x SATA3 (6Gbps) ports
• Networking: 2x 10GbE (Intel X710-AT2), 1x dedicated IPMI LAN
• Rear I/O: 2x USB 3.2 Gen1 Type-A, 1x VGA
• Form factor: Micro-ATX (9.6" x 9.6")
• Power: 24-pin ATX + 8-pin EPS connectors

Recommendations

For IT administrators seeking a reliable, remotely manageable server board with modern connectivity, the X14SBM-TF offers an ideal balance of performance, scalability, and total cost of ownership. Pair it with a Xeon E-2400 CPU and ECC DDR5 memory for a robust foundation in any small-scale data center or edge deployment.
