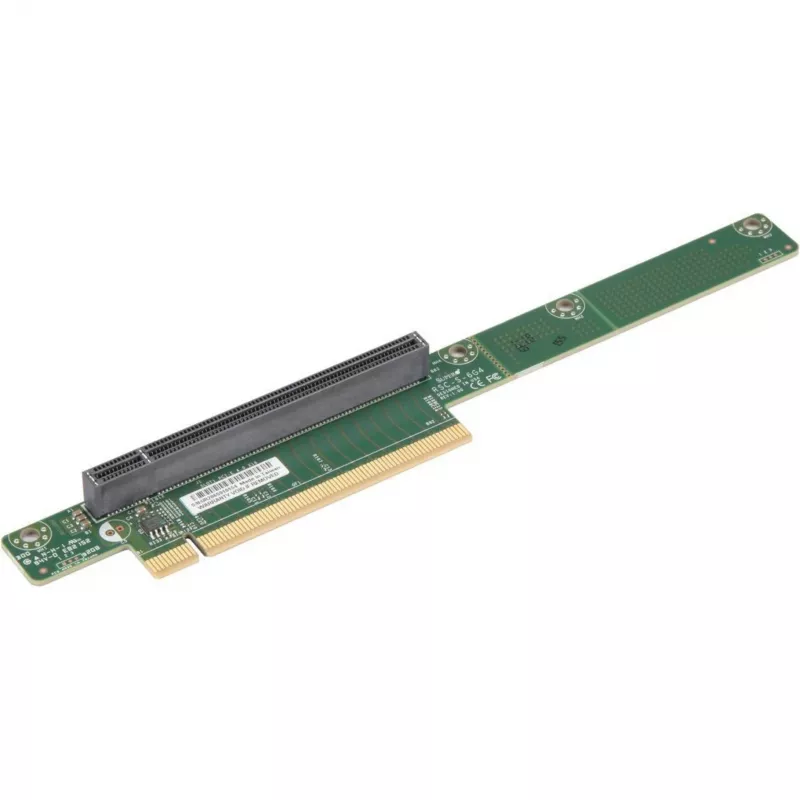

Supermicro RSC-S-6G4 1U riser card - 2x PCIe 3.0 x16 (x8) voor A+ server F1114

The Supermicro RSC-S-6G4 is a high-quality 1U riser card designed to expand the expansion capabilities of Supermicro A+ servers. This riser card provides two PCIe 3.0 x16 physical slots (electrical x8) for adding low-profile PCIe cards, enabling enhanced connectivity and performance for your server infrastructure.

Advantages

Optimized for 1U server environments, the RSC-S-6G4 allows you to maximize space utilization while adding essential expansion slots. With support for PCIe 3.0, it delivers high bandwidth of up to 8 GT/s per slot, ensuring fast data transfer for compatible add-on cards. The low-profile bracket design ensures seamless integration into compact server chassis.

Suitable for

• Supermicro 1U A+ Servers (e.g., AS-1114S-WN10RT, AS-1114S-WTRT)
• Adding low-profile PCIe cards such as network adapters, storage controllers, or GPUs
• Data centers and enterprise environments requiring reliable expansion solutions

Key specifications

• Form Factor: 1U Riser Card
• PCI Express Generation: PCIe 3.0
• Number of PCIe Slots: 2
• Physical Slot Type: 2x PCIe x16
• Electrical Slot Type: 2x PCIe x8
• Connector Type: Proprietary Supermicro Riser Connector
• Slot Orientation: Vertical
• Bracket Type: Low-profile (integrated)
• Material: PCB, Metal
• Operating Temperature: 0°C to 55°C (32°F to 131°F)

Recommendations

Ensure your server model is compatible with the RSC-S-6G4 riser card. This card is specifically designed for Supermicro 1U A+ servers and may not fit other platforms. For optimal performance, use low-profile PCIe cards that comply with the slot specifications.
