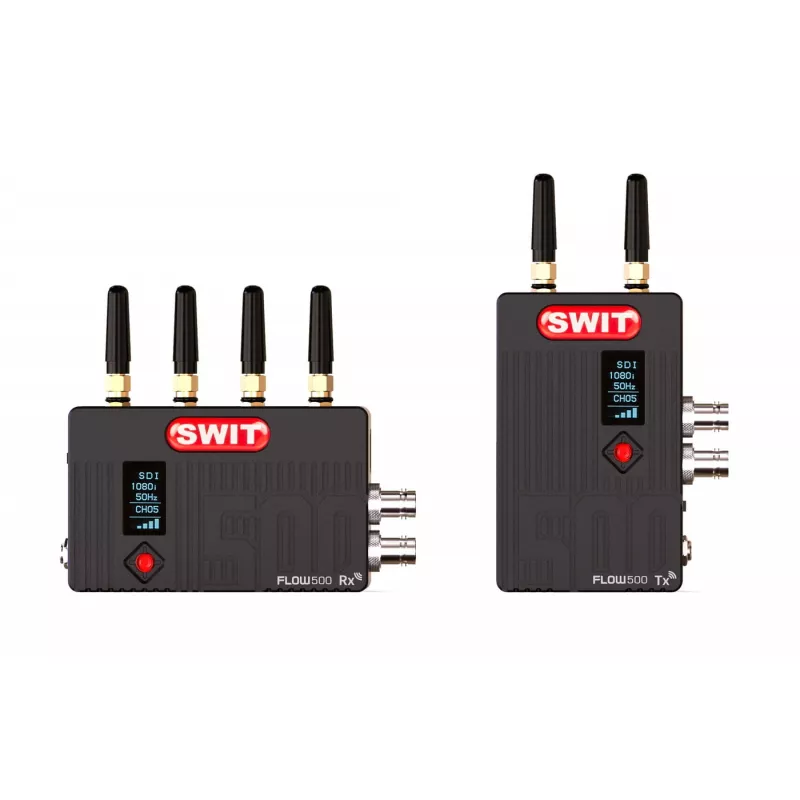

SWIT ELECTRONICS FLOW500 - Full-HD draadloos videotransmissiesysteem met ontvanger en zender - 10,2 cm

The SWIT ELECTRONICS FLOW500 is a professional Full-HD wireless video transmission system that includes both a transmitter and a receiver. Designed for broadcast, filmmaking, and live production, it delivers reliable, low-latency video over distances up to 150 meters line-of-sight. The system supports up to 1080p60 resolution and features dual HDMI and 3G-SDI inputs/outputs for maximum compatibility.

Advantages

With a latency of less than 70 ms, the FLOW500 ensures real-time monitoring and smooth video transmission. Its 2T2R MIMO antenna configuration and DFS-compliant 5 GHz frequency band provide stable, interference-free performance. The compact aluminum alloy housing is durable yet lightweight, and the OLED display offers clear status information. AES 128-bit encryption secures your video feed.

Suitable for

• Professional videographers and cinematographers
• Live event production (concerts, conferences, sports)
• Broadcast and ENG (Electronic News Gathering)
• Film sets requiring wireless camera monitoring

Key specifications

• Transmission Range: 150 m (500 ft) line-of-sight
• Latency: <70 ms
• Video Resolution: Up to 1080p60 (also 1080i, 720p, 576p, 480p)
• Transmitter Inputs: 1x HDMI Type A, 1x 3G-SDI
• Transmitter Output: 1x 3G-SDI Loop Out
• Receiver Outputs: 1x HDMI Type A, 1x 3G-SDI
• Frequency Band: 5.1-5.9 GHz (DFS Compliant)
• Antenna: 2T2R MIMO
• Multi-Receiver Support: Up to 4 receivers
• Audio: Embedded 2-channel
• Power Input: DC 7-17V
• Battery Plate: Sony NP-F (L-Series)
• Display: OLED
• Mounting: 1/4"-20 thread
• Encryption: AES 128-bit
• Housing: Aluminum alloy
• Dimensions (each unit): 102 x 63.5 x 20.5 mm (without antennas)
• Weight (each unit): 200 g (without battery/antennas)

Recommendations

The FLOW500 is an excellent choice for professionals seeking a reliable, low-latency wireless video solution. Its robust build, multiple input/output options, and long range make it ideal for demanding production environments.
