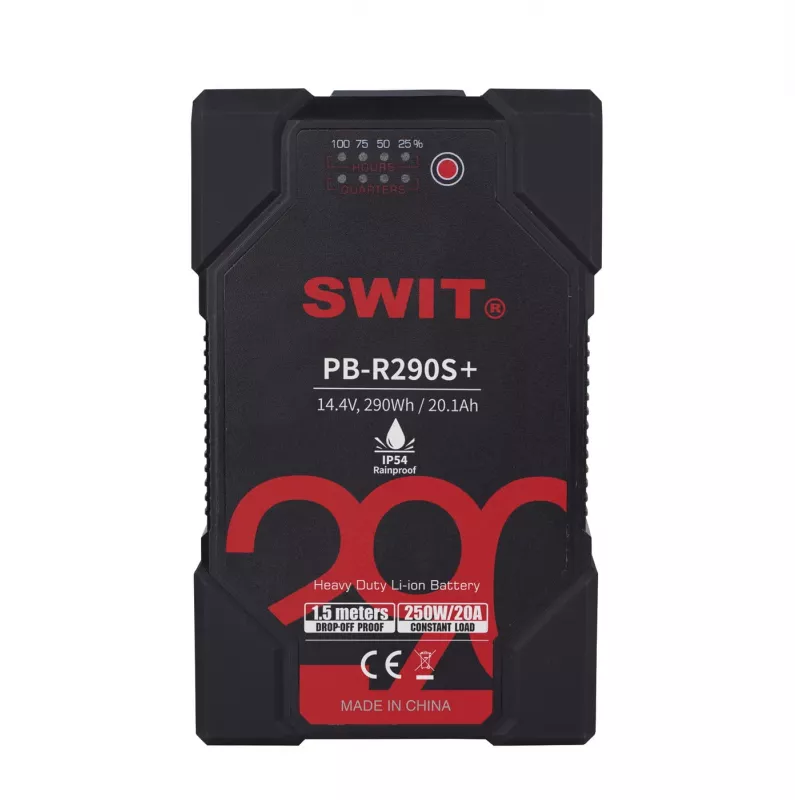

SWIT ELECTRONICS PB-R290S+ waterdichte V-Mount Li-Ion accu 290Wh

The SWIT ELECTRONICS PB-R290S+ is a high-capacity, waterproof V-Mount Li-Ion battery designed for professional cinema cameras, video cameras, and LED lights. With a robust 290Wh capacity and IP54 rating, it delivers reliable power in demanding environments.

Advantages

This battery offers exceptional durability and performance. Its waterproof and dustproof design ensures operation in harsh weather, while the high-capacity 290Wh provides extended runtime for critical shoots. The built-in protection features safeguard your equipment against over-voltage, under-voltage, over-current, and over-temperature.

Suitable for

• Professional cinema cameras (e.g., ARRI, RED, Sony)
• Video cameras and camcorders
• LED lights and on-set accessories
• Field production and outdoor broadcasting

Key specifications

• Battery Type: Lithium-Ion
• Mount Type: V-Mount
• Capacity: 290 Wh / 20.1 Ah
• Nominal Voltage: 14.4 V
• Max Output Power: 200 W
• Max Output Current: 16 A
• D-Tap Output: 2x D-Tap (16A total)
• USB Output: 1x USB-A (5V/2A)
• Waterproof Rating: IP54
• Charge Indicator: 4-level LED
• Operating Temperature: -20°C to +50°C
• Protection Features: Over-voltage, Under-voltage, Over-current, Over-temperature
• Housing Material: High-impact ABS/PC
• Cycle Life: >500 Cycles
• Charging Time (with SWIT S-3812S): Approx. 7.5 hours

Recommendations

For optimal charging, use the SWIT S-3812S charger. This battery is ideal for professionals who require reliable power in challenging conditions.
